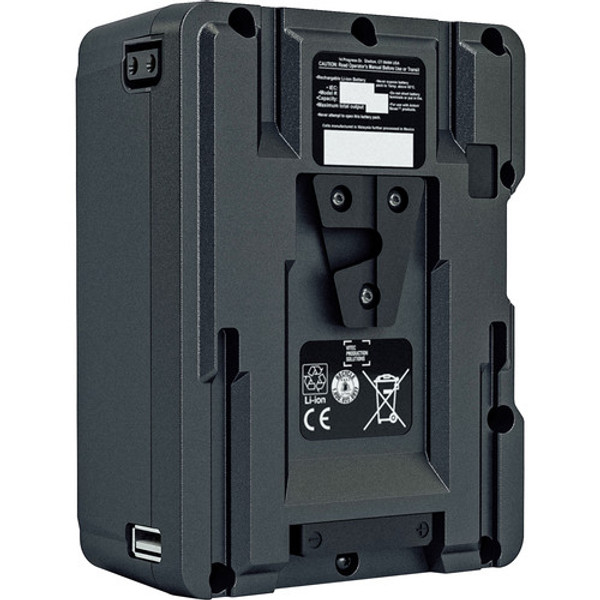

Anton Bauer 8675-0132 Titon 90 V-Mount Lithium-Ion Battery
Product Highlights:
- 92Wh Lithium-Ion Battery
- Supports up to 10A Continuous Draw
- 12A Peak Draw for 5 Seconds
- LCD Battery Capacity Gauge
- D-Tap and USB Accessory Ports
- Anton Bauer Titon 90 V-Mount Lithium-Ion Battery
- Limited 2-Year Warranty
Anton Bauer 8675-0132 Titon 90 V-Mount Lithium-Ion Battery
Anton Bauer 8675-0132 Titon 90 V-Mount Lithium-Ion Battery
Providing a basic power readout and no user interactive surfaces, the Anton Bauer Titon 90 V-Mount Lithium-Ion Battery can be used to power your V-mount camera or other pro video gear. The lightweight lithium-ion chemistry can provide up to 10 amps of current on a continuous draw and support peaks of up to 12.5 amps for five seconds. At the side of the chassis, an LCD display screen shows battery capacity in percent remaining, and when put under load it shows the exact remaining runtime. Using the D-Tap and USB ports you can power essential accessories on your rig or other small electronics.
| Mount / Series Type |
V-Mount |
| Chemistry |
Lithium-Ion |
| Capacity (Wh) |
92 Wh |
| Output Voltage |
14.2 VDC |
| Maximum Load |
10 A
12.5 A (Peak) |
| Accessory Port |
1 x D-Tap Output
1 x USB Type-A Output |
| USB Output |
5 V |
| Operating Temperature |
-4 to 140°F / -20 to 60°C |
| Charging Temperature |
32 to 113°F / 0 to 45°C |
| Dimensions (W x H x D) |
3.9 x 5.2 x 2.3" / 9.9 x 13.1 x 5.8 cm |
| Weight |
1.8 lb / 0.8 kg |
