Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
Product Highlights:
- 1920 x 1080 IPS Touchscreen Display
- HDMI 2.0 & 12G-SDI Inputs/Outputs
- Quad-HD Live Switching & 5-Ch Recording
- 1200 cd/m² (±10%) Brightness
- ProRes RAW Support
- 8-Bit+FRC 422 ProRes/DNxHR Encoding
- HDR Mode with 10-Stop Dynamic Range
- Two XLR Inputs with +48V
- Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
- Master Caddy II
- BattWing Mounting Bracket
- 4 x Screw
- 2 x Desktop Foot
- 4 x 1/4"-20 Mounting Screw
- AC Power Supply
- Limited 1-Year Manufacturer Warranty
- Registration Extension: 3-Year
NOT INCLUDED
Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher

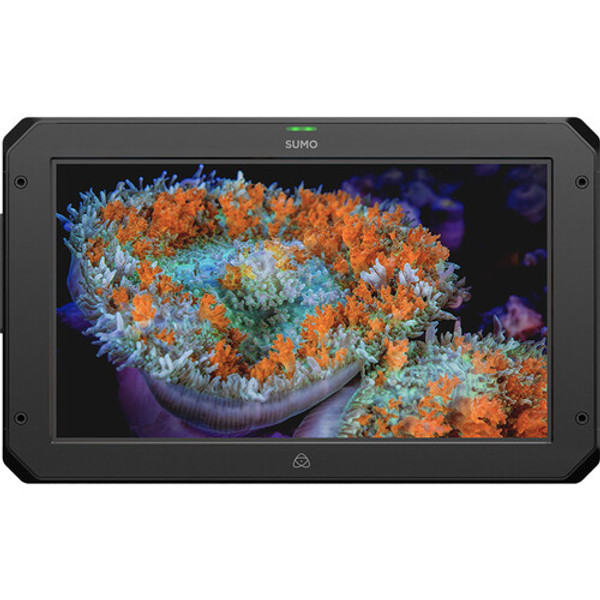

Atomos ATOMSUMSE1 Sumo 19" SE HDR Monitor, Recorder, and Switcher The Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher features an enhanced 19" IPS touchscreen display with a 1920 x 1080 resolution and 1200 cd/m² brightness, offering a sharper and brighter viewing experience while maintaining the 4K recording, monitoring, and switching capabilities of its predecessor. It supports video signals up to 4K60 via four 12G-SDI inputs and one HDMI 2.0 input, with live quad-channel switching. The device records five channels simultaneously, capturing individual input feeds and the live-switched output for streamlined post-production. Additionally, HDMI 2.0 and quad-SDI connections support genlock and LTC timecode synchronization.
Intuitive Interface
The Sumo 19" SE records in ProRes RAW and 8-bit+FRC 422 ProRes/DNxHR formats. It processes RAW, Log, PQ, and HLG outputs from various cameras and gaming consoles, mapping them in real time to display HDR with 10+ stops of dynamic range. This makes it an excellent choice for on-set monitoring by directors or clients. Two XLR inputs with +48V phantom power allow for balanced audio recording using external microphones. The package includes desktop feet, mounting accessories, and multiple power supply options for seamless integration into studio setups.
SE Enhancements and Key Features
- Enhanced 19" IPS display with 1200 cd/m² brightness (±10%)
- Live quad-channel HD switching and recording
- ProRes RAW and 10-bit 422 ProRes/DNxHR recording support
- HDMI 2.0 and quad-SDI compatibility with genlock and LTC timecode
- HDR support for HLG and PQ formats
Live Quad-Channel HD Switching and Recording
- Simultaneously records four independent ISO feeds while enabling real-time switching
- Captures a fifth channel of the live-switched feed for direct output (via HDMI or SDI)
- Asynchronous switching with Atomos Connect 4K output compatibility
Dual XLR Inputs with Phantom Power
- Full-size XLR inputs with +48V phantom power support
- Connects up to two external microphones for balanced analog audio recording and monitoring
- Independent level meters, gain controls, and frame delay adjustments for each channel
- Synchronizes mic or line-level audio with embedded HDMI and SDI audio
Powering the Sumo 19" SE
- Dual 4-pin XLR inputs enable continuous dual-battery operation
- Includes a BattWing mounting bracket for V-mount or Gold mount batteries (95Wh or larger)
- AC power supply with 12-16.8 VDC input included
| Atomos SUMO19 SE Specs |
|---|
| Display |
|---|
| Panel Type |
IPS-Type LCD
|
| Display Size |
19.00" / 48.3 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1200 nits / cd/m2
|
| Color Support |
1.07 Billion Colors (8-Bit+FRC)
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
120 ppi
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
|

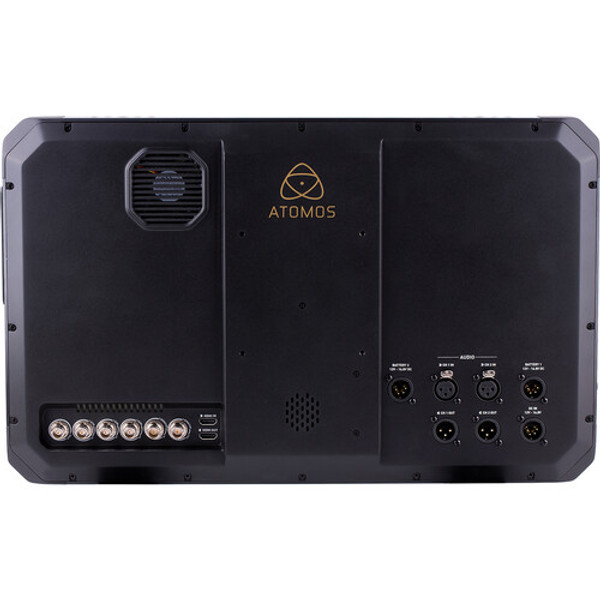

| Inputs/Outputs |
|---|
| Video I/O |
1x HDMI 2.0 Input
1x HDMI 2.0 Output
4x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
|
| Embedded Audio |
HDMI: 8-Channel
SDI: 12-Channel
|
| Audio I/O |
2x XLR Input
2x XLR Output

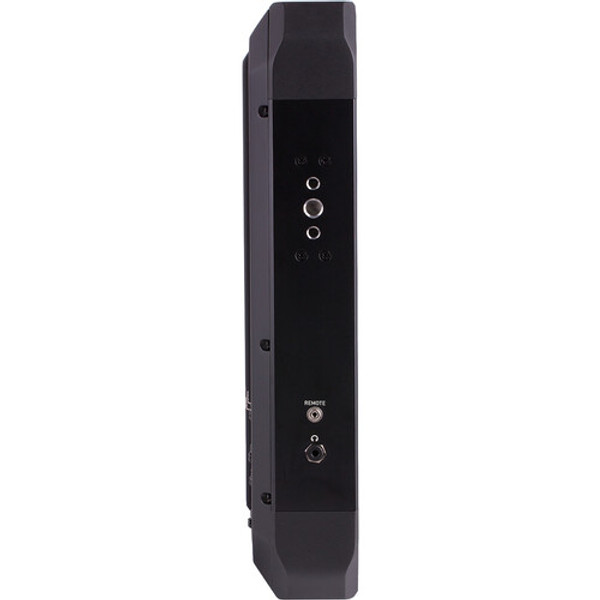

1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
2x XLR 4-Pin (14.4 VDC) Input
1x XLR 4-Pin (16.8 VDC) Input
|
| Other I/O |
1x BNC (Genlock) Input
1x 2.5 mm (LANC) Input
|
| Media/Memory Card Slot |
No
|
| File System Support |
exFAT
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Format Support |
|---|
| Video Format |
HDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
DCI 4K: 60
|
| Gamma Curve |
DCI-P3, DCI-P3+, Panasonic V-Gamut, Rec709
|
| Video Signal Conversion |
HDMI to SDI
SDI to HDMI
|
| Timecode Support |
Yes
|
| Recording |
|---|
| Pulldown Conversion |
2:2, 3:2
|
| Camera Trigger |
SDI, HDMI
|
| Pre-Roll Record |
Full HD: 8 Seconds
4K: 2 Seconds
|
| Encoding Formats |
x
ProRes Raw
ProRes 422 HQ 10-Bit
DNxHR 422 HQ 10-Bit
|
| Closed Caption Support |
No
|
| Reference Input |
No
|
| Phantom Power |
+48 V
|
| Power |
|---|
| Input Power |
12 to 16.8 VDC
|
| Built-In Battery |
No
|
| Battery Type |
2x V-Mount, Gold Mount
|
| Power Consumption |
75 W
|
| Mounting |
|---|
| VESA Mounting-Hole Pattern |
100 x 100 mm
|
| Mounting |
10x 1/4"-20 Female
5x 3/8"-16 Female
|
| General |
|---|
| Material of Construction |
Aluminum, Polycarbonate
|
| Dimensions |
19.8 x 13 x 7.1" / 504 x 330 x 180 mm (Including Feet)
19.8 x 12.2 x 2.5" / 504 x 310 x 63 mm (Excluding Feet)
|
| Weight |
12.02 lb / 5.45 kg
|
| Packaging Info |
|---|
| Package Weight |
21.3 lb
|
| Box Dimensions (LxWxH) |
24 x 15.25 x 7.25"
|
