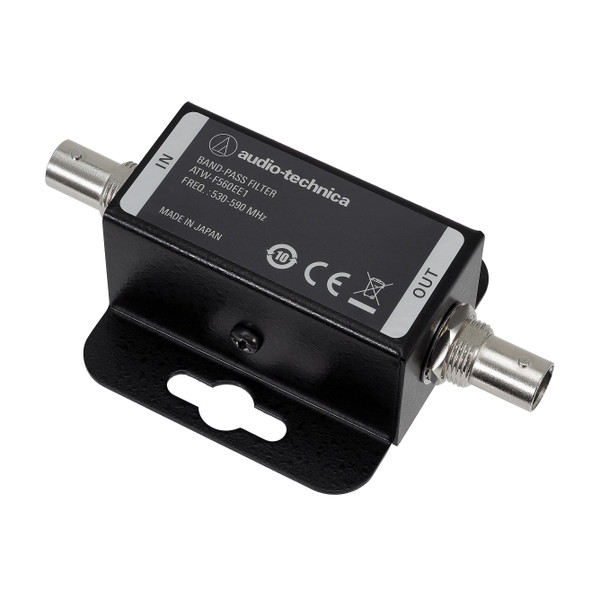

Audio-Technica ATW-F560EE1 Band-Pass Filter Pair
Product Highlights:
- Passive operation
- Industry-standard BNC-type connectors
- Pair
- Audio-Technica ATW-F560EE1 Band-Pass Filter Pair
Audio-Technica ATW-F560EE1 Band-Pass Filter Pair
Audio-Technica ATW-F560EE1 Band-Pass Filter Pair
These band-pass filters help eliminate “out-of-band” signals that can saturate the front end of wireless microphone receivers. They can also greatly improve dynamic range by reducing noise and third-party interference outside the operating range. Each is fitted with industry-standard BNC-type connectors, requiring no power or user configuration and allowing easy connection to wireless microphone antennas to reduce noise and improve wireless system performance. Note, the maximum pass-through current is 420 mA. To avoid malfunction, make sure the pass-through current is less then 420 mA.
| ATW-F560EE1 Specs |
|---|
| Antenna & Distribution |
|---|
| Frequency Range |
470 to 530 MHz (ATW-F500DE2)
530 to 590 MHz (ATW-F560EE1)
590 to 650 MHz (ATW-F620EF1)
650 to 700 MHz (ATW-F675FG1) |
| Impedance |
50 ohms |
| High Frequency Transmission Loss |
4 dB (typical) |
| Current Pass Through |
420 mA |
| Operating Temperature Range |
Allowable: -10 to +60 °C
Recommended: +15 to +35 °C |
