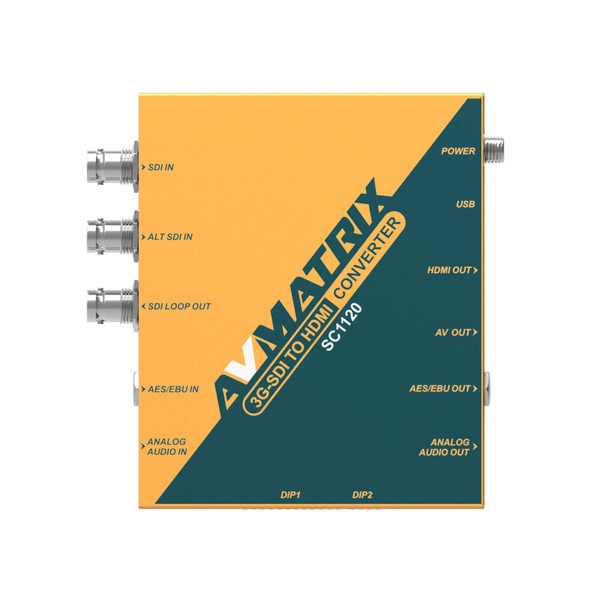

AV Matrix SC1120 3G-SDI to HDMI & AV Scaling Converter

AV Matrix SC1120 3G-SDI to HDMI & AV Scaling Converter

The AV Matrix SC1120 3G-SDI to HDMI & AV Scaling Converter is suitable for broadcasting and AV post production applications. It converts an SDI signal to HDMI and AV signals at the same time. The output is suitable for pass-through or up/down scaling and frame rate conversion. De-interlacing function and seamless conversion can also be supported to avoid jitter. It also features AES/EBU or analog audio embedding and de-embedding.

The converter can automatically switch to the redundant SDI input to avoid the loss of video signal in case of an accident. This makes it suitable for studios, live shows or outdoor live events. Meanwhile, re-clocked SDI output ensures a long-distance transmission without loss of signal quality. All the functions can be easily set by built-in DIP switches or remotely controlled using software when connected to a PC via USB.

AV Matrix 3G-SDI to HDMI & AV Scaling Converter

Product Highlights:

• 3G-SDI, Alt 3G-SDI, AES/EBU, and analog audio inputs
• 3G-SDI loop, HDMI, AV, AES/EBU, and analog audio outputs
• Supports resolutions up to 1080p 60 Hz
• Up/down scaling and frame rate conversion
• AES/EBU or analog audio embedding and de-embedding
• Redundant SDI input and re-clocked output

• AV Matrix SC1120 3G-SDI to HDMI & AV Scaling Converter
• 2 x Brackets
• Power Adapter
• Micro-USB Cable
• Limited 3-Year Warranty

AV Matrix 3G-SDI to HDMI & AV Scaling Converter

AV Matrix SC1120 3G-SDI to HDMI & AV Scaling Converter

The AV Matrix SC1120 3G-SDI to HDMI & AV Scaling Converter is suitable for broadcasting and AV post production applications. It converts an SDI signal to HDMI and AV signals at the same time. The output is suitable for pass-through or up/down scaling and frame rate conversion. De-interlacing function and seamless conversion can also be supported to avoid jitter. It also features AES/EBU or analog audio embedding and de-embedding.

The converter can automatically switch to the redundant SDI input to avoid the loss of video signal in case of an accident. This makes it suitable for studios, live shows or outdoor live events. Meanwhile, re-clocked SDI output ensures a long-distance transmission without loss of signal quality. All the functions can be easily set by built-in DIP switches or remotely controlled using software when connected to a PC via USB.

AV Matrix SC1120 Specs
General
Inputs	SDI Video Input: 1 x SD/HD/3G-SDI 1 x Alt 3G-SDI AES/EBU Digital Audio Input: 1 x 1/4" (6.35 mm) TRS jack Analog Audio Input: 1 x 1/8" (3.5 mm) jack
Outputs	HDMI Video Output: 1 x HDMI type-A AV Output: 1 x 1/8" (3.5 mm) jack SDI Video Loop Output: 1 x SD/HD/3G-SDI AES/EBU Digital Audio Output: 1 x 1/4" (6.35 mm) TRS jack Analog Audio Output: 1 x 1/8" (3.5 mm) jack
SDI Formats Supported	1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50, 525i 59.94
SDI Video Rates	SD/HD/3G-SDI
SDI Compliance	SMPTE 292M/SMPTE 259M/SMPTE 424M
SDI Color Space	YUV 4:2:2
SDI Auto Switching	Auto selects SD, HD, and 3G-SDI on input
HDMI Format Support	1080p 60/50/30/25/24 1080i 60/50 720p 60/50/30/25/24 576i 50, 480i 60
HDMI Color Space	YUV 4:2:2., YUV 4:4:4, RGB 4:4:4
AV Output	NTSC, PAL
Power Connector	Threaded locking connector
Power Supply	12 VDC
Power Consumption	6 W
Operating Temperature	-4 to 140°F (-20 to 60°C)
Storage Temperature	-22 to 158°F (-30 to 70°C)
Relative Humidity	0 to 90% non-condensing
Dimensions	4.9 x 4.1 x 1.0" (125.5 x 104 x 24.5 mm)
