BirdDog KBD PTZ Controller with Integrated Screen
Product Highlights:
- PTZ Controller with 1280 x 720 Display
- Monitor up to 4 Cameras Simultaneously
- Effortless Camera Settings Sync
- NDI|HX2 & NDI|HX3 Support
- Integrated Tally Borders
- Streamlined Access
- Ocean-Bound Plastics & Aluminum Build
- BirdDog KBD PTZ Controller with Integrated Screen
- Limited 5-Year Manufacturer Warranty
BirdDog KBD PTZ Controller with Integrated Screen
BirdDog BDKBD KBD PTZ Controller with Integrated Screen

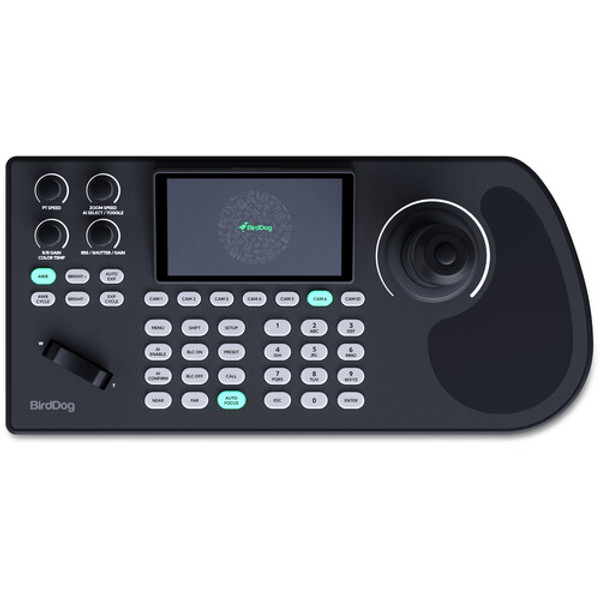

Control your PTZ multicamera setup and monitor up to four cameras simultaneously with the KBD PTZ Controller with Integrated Screen from BirdDog
Built with ocean-bound plastics and recyclable aircraft-grade aluminum, the KDP boasts a rugged, ergonomic design with a large 1280 x 720 display to allow you to quickly pair and switch cameras with a single keystroke.
The new Effortless Camera Settings Sync function enables you to easily copy settings from one X-series device to another, and the integrated tally borders facilitate live switching with optional TriCaster or vMix platforms. The KDP offers NDI|HX2 and NDI|HX3 support as well as VISCA-IP, ONVIF, RS-232, and RS-422 for smooth workflow versatility. Balancing power, operational comfort, and eco-friendly innovation, the KDP is the ideal companion for studio production, live events, and mobile program acquisition applications.
All-Day Operational Comfort
Rugged, ergonomic design with a hand-rest area and tactile controls for seamless, extended use.
Expanded Screen Control
Monitor up to four cameras simultaneously or focus on one in full-screen mode. Pair and switch cameras with a single keystroke.
Super-Fine Control Mode
Fine-tune Mode provides 10x joystick sensitivity for precise on-air framing.
Streamlined Access
Access essential functions like pairing, switching, and setup instantly for a smooth, user-friendly experience.
Affordable Innovation
Refined through user insights, the KDP offers precision, comfort, and an eco-conscious design at an affordable price point.
| BirdDog KBD PTZ Controller Specs |
|---|
| General |
|---|
| Number of Supported Cameras |
255 Channels via IP
|
| Supported Control Protocols |
IP
NDI
NDI|HX2
NDI|HX3
ONVIF
Pelco-D
Pelco-P
RS-232
RS-422
VISCA
|
| IP Streaming |
NDIHX, ONVIF: UHD 4K
|

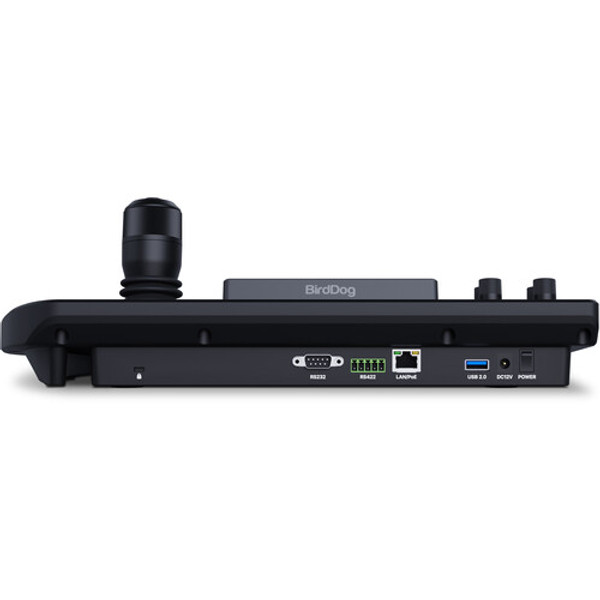

| Control I/O |
1x D-Sub 9-Pin (RS-232) Input/Output
1x Phoenix (RS-422) Input/Output
1x RJ45 (IP Control, LAN) Input/Output
|
| Other I/O |
1x USB-A Input/Output
|
| Controls |
1x 3-Axis, Pan/Tilt, Programmable, Multifunction, Auto-Focus, Manual-Focus, Camera Movement Speed, Focus Speed, White Balance Joystick
Focus, Auto-Focus, Manual-Focus, Gain, Camera Selection, Preset Selection, Menu Buttons
|
| Presets |
255 via IP, RS-232, VISCA, Pelco-P, Pelco-D
|
| Display |
|---|
| Native Resolution |
1280 x 720
|
| Touchscreen |
No
|
| Power |
|---|
| PoE Support |
PoE 802.3af
|
| Power Connectors |
1x Barrel / Coaxial
|
| Power Consumption |
≤5 W
|
| Input Power |
12 VDC
|
| Physical |
|---|
| Operating Conditions |
14 to 130°F / -10 to 54°C at 20 to 80% Humidity
|
| Storage Conditions |
14 to 130°F / -10 to 54°C at 0 to 90% Humidity
|
| Security Lock Support |
No
|
| Dimensions |
14.8 x 7 x 4.6" / 377 x 177 x 118 mm
|
| Packaging Info |
|---|
| Package Weight |
8.61 lb
|
| Box Dimensions (LxWxH) |
16.2 x 8.7 x 6.9"
|
