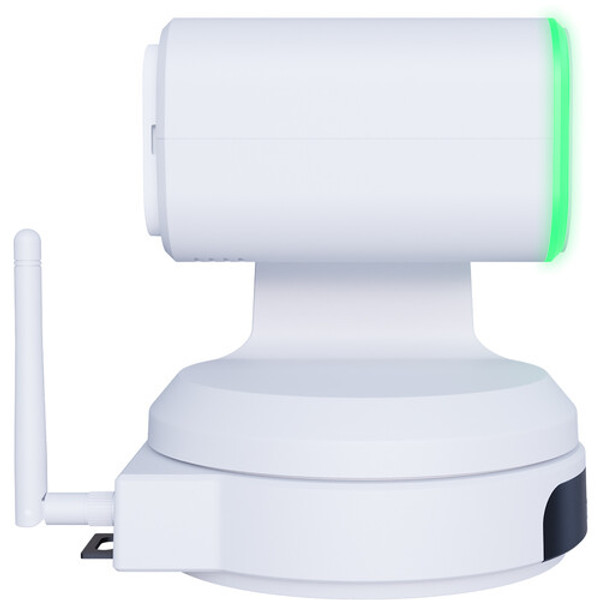

BirdDog X1 PTZ Camera with 20x Zoom (White)
Product Highlights:
- 20x Zoom & 1080p60 Resolution
- AI Auto Framing

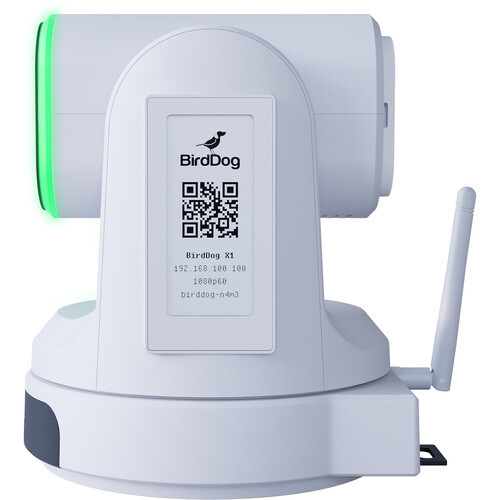

- Integrated 2.93" E-Ink Display
- Wi-Fi 5 & NDI|HX3 Support
- HDMI & USB/UVC Outputs
- Built-In Halo Tally
- Color Matrix, API & Kelvin Control
- PoE Support
Exceptional Low-Light Performance
- BirdDog X1
- PTZ Camera with 20x Zoom (White)
- Limited 5-Year Manufacturer Warranty
BirdDog X1 PTZ Camera with 20x Zoom (White)
BirdDog BDX1W X1 PTZ Camera with 20x Zoom (White)
Capture 1080p60 Resolution Video with AI Auto Framing Using the White X1 PTZ Camera with 20x Zoom from BirdDog
Boasting a powerful 20x zoom as well as color matrix, API, and Kelvin control, the versatile X1 offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.
Physical Connectivity & Power
Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally and a 2.93" E-Ink display augment the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable, facilitating quick and easy setup with limited cable clutter.
Integrated NDI Decoder
The camera features an NDI|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. All the connectivity is contained in a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle.
AI Tracking
Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real time. Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or tracking sports action, AI tracking helps you stay well-framed and professional.
Wi-Fi Connectivity
No need to rely solely on cables to capture every shot. In addition to regular Ethernet with PoE, the camera includes built-in Wi-Fi functionality. Easily capture shots from spots where it's hard to run a cable, seamlessly integrating into any environment.
NDI|HX2 & NDI|HX3 Integration
Achieve superior network performance via NDI|HX2 and NDI|HX3 integration. You get significantly reduced network impact and excellent image quality for a more user-friendly experience across more varied network environments.
Built-In Halo Tally Light
A visible and effective halo tally system features a large, daylight-visible border and an interchangeable illuminated numbering system. Your cast and crew will always know where to look, keeping your audience engaged and your production polished.
| BirdDog X1 Specs |
|---|
| Imaging |
|---|
| Image Sensor |
1/2.8"-Type CMOS
|
| Horizontal Resolution (TV Lines) |
1080 TV Lines
|
| Sensor Resolution |
Effective: 2.07 Megapixel (1920 x 1080)
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus
|
| Exposure Control |
|---|
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| White Balance |
Range: 2500 to 9000K
Presets: Manual, VAR
|
| Lens |
|---|
| Focal Length |
5.5 to 110mm
|
| Max Optical Zoom |
20x
|
| Field of View |
Horizontal: 55.8 to 3.2°
Vertical: 32.2 to 1.8°
Diagonal: 61 to 3.64°
|
| Maximum Aperture |
f/1.6 to 3.5
|
| Video Capture |
|---|
| Video Output |
HDMI / RJ45 / USB
HD (1920 x 1080p) at 25/30.00/50/60.00 fps
HD (1280 x 720) at 25/30.00/50/60.00 fps
|
| Embedded Audio |
HDMI/LAN (RJ45)/SDI
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
RTSP/RTMP/NDI HX3/NDI HX2
1920 x 1080 at 60p
|
| Control |
|---|
| Presets |
255
|
| Pan/Tilt |
Pan: 350° (-175 to 175°) at 0.1 to 80°/s
Tilt: 180° (-90 to 90°) at 0.1 to 60°/s
|
| Tally Light |
Yes
|
| Interface |
|---|
| Video I/O |
1x HDMI Output
|
| Other I/O |
1x USB-C
1x RJ45 (NDI, RS-232) Control
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
| Power |
|---|
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45 (12VDC at 2 A) Input
|
| Power Consumption |
13 W
|
| Environmental |
|---|
| Operating Conditions |
14 to 104°F / -10 to 40°C at 20 to 80% Humidity
|
| General |
|---|
| Mounting |
1x 1/4"-20 Female
|
| Dimensions (W x H x D) |
10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm
|
| Weight |
2.98 lb / 1.35 kg (Body Only)
|
| Packaging Info |
|---|
| Package Weight |
5.73 lb
|
| Box Dimensions (LxWxH) |
11.9 x 8.5 x 7.9"
|
