Blackmagic Design - DISCONTINUED
Product Highlights:
- For URSA Mini Cameras
- 7" Screen with Removable Hood
- Tension Adjustable Articulating Mount
- Brightness, Contrast, Peaking Control
- Zoom, Zebra, False Color, Histogram
- Edge Focus Detection, Custom LUTs
- Adjustable Frame Line Overlay
- Audio Meters, Tally
Blackmagic Design URSA Studio Viewfinder - DISCONTINUED
- Limited 1-Year Warranty
Blackmagic Design
Blackmagic Design URSA Studio Viewfinder - DISCONTINUED

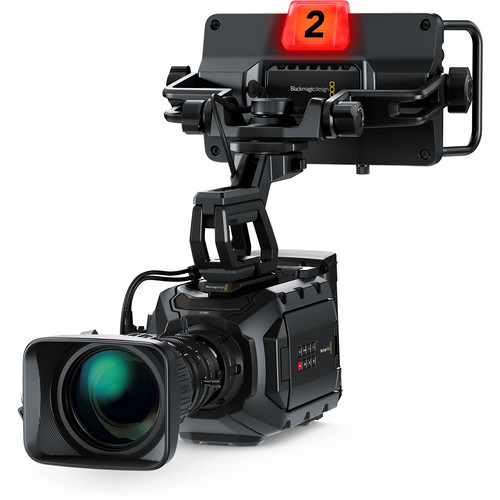

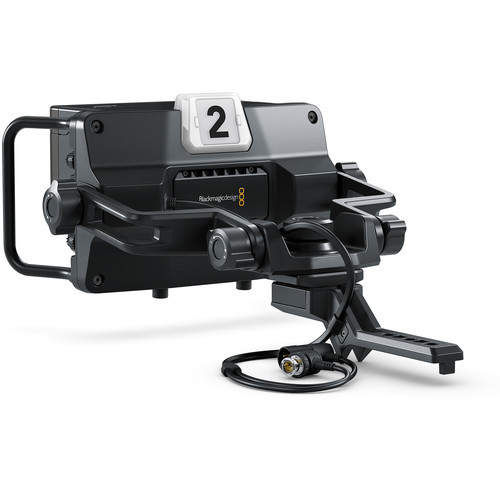

The URSA Studio Viewfinder from Blackmagic Design is specifically built to provide studio viewfinder functionality to your URSA Mini camera. With a 7" screen, manual control knobs, camera ID/tally light, and a tension adjustable articulating mount, the Studio Viewfinder seamlessly integrates into a studio style workflow for relaxed camera operation at sporting events, concerts, or in the studio. Three manual knobs next to the view screen provide control over brightness, contrast, and peaking without having to dive into the menu system.
| Screen |
Size: 7"
Resolution: 1920 x 1200
Type: IPS LCD |
| Format Support |
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50 |
| Color Space |
REC 601
REC 709
REC 2020 |
| Color Sampling |
YUV: 4:2:2
RGB: 4:4:4 |
| Color Precision |
10-Bit |
| Connectors |
1 x 3G/HD-SDI (BNC), input
1 x 4-Pin XLR, power
1 x USB type C (for initial setup and updates) |
| SMPTE Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, and SMPTE 425M 2084 |
| Environmental |
Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Relative Humidity: 0 to 90% Non-condensing |
| Dimensions |
11.9 x 13.0" / 30.4 x 33.1 cm |
| Weight |
5.9 lb / 2.7 kg |
