Libec LX-ePed 2 Studio Electric Pedestal
Libec LX-ePed 2 Studio Electric Pedestal
Electric elevation for PTZ & camcorders—precision height moves, studio-smooth mobility.
Video: Hands-on look at LX-ePed 2 Studio performance and workflow benefits.
Why LX-ePed 2 Studio?
The LX-ePed 2 Studio brings motorized vertical travel to your PTZ or camcorder setup, adding a fourth axis of movement to complement pan, tilt, and zoom. Its wired, PoE-powered controller delivers smooth, repeatable elevation moves—ideal for live production, studios, houses of worship, and events where precision and reliability matter.
Product Highlights
- 2-Stage Electric Pedestal System with standard dolly (3.9" wheels)
- Handheld Controller with elevation rocker & continuous 3-minute operation
- 22 lb load capacity; 38.8"–98.4" working height range
- 15.7" middle column extension; precise start/stop motion
- 100mm bowl head; includes 1/4"-20 and 3/8"-16 camera screws
- LAN ports with 98.4' control cable; AC/DC power supply included
Key Advantages
Electric Elevation with Remote Control
Add dynamic height moves to PTZ and camcorders. The engineered column minimizes wobble and twist for on-shot adjustments with seamless ramps and stops.
Reliable Wired Workflow (PoE)
No Wi-Fi/Bluetooth headaches. The controller uses a wired LAN connection and is PoE-powered for consistent performance and simplified cabling.
Position Presets & Continuous Speed
Store up to three height presets for fast recalls. The rocker supports fine speed control (including a slow mode) to finesse your moves.
IP/Serial Control with Optional MPC-1
Add the MPC-1 multi-protocol converter to integrate with PTZ controllers and the LX-ePed PC App for precise, software-driven adjustments.
Mobile Power & Smart Mounting
Optional VM-12V enables V-mount battery operation. The included AP-X Smart Quick Release speeds safe PTZ attachment and supports safety-wire security.
Flexible Head & Accessory Options
Use the included adapters for 1/4" and 3/8" flat-base gear, or mount a 100mm video head (75mm via optional AD-75). Built-in bubble level and accessory ports streamline setup.
Compact, Studio-Ready Design
The pedestal separates from the dolly for transport and folds down. At ~22 lb, it fits in the optional RC-80 case. High-angle shots up to ~102.7" (Studio) expand creative framing.
In the Studio
Pair the LX-ePed 2 Studio with your preferred PTZ or compact camcorder to unlock reliable, operator-friendly elevation moves that feel natural on air. The standard dolly glides smoothly for refined blocking, while wired control keeps focus on the shot—not the signal.

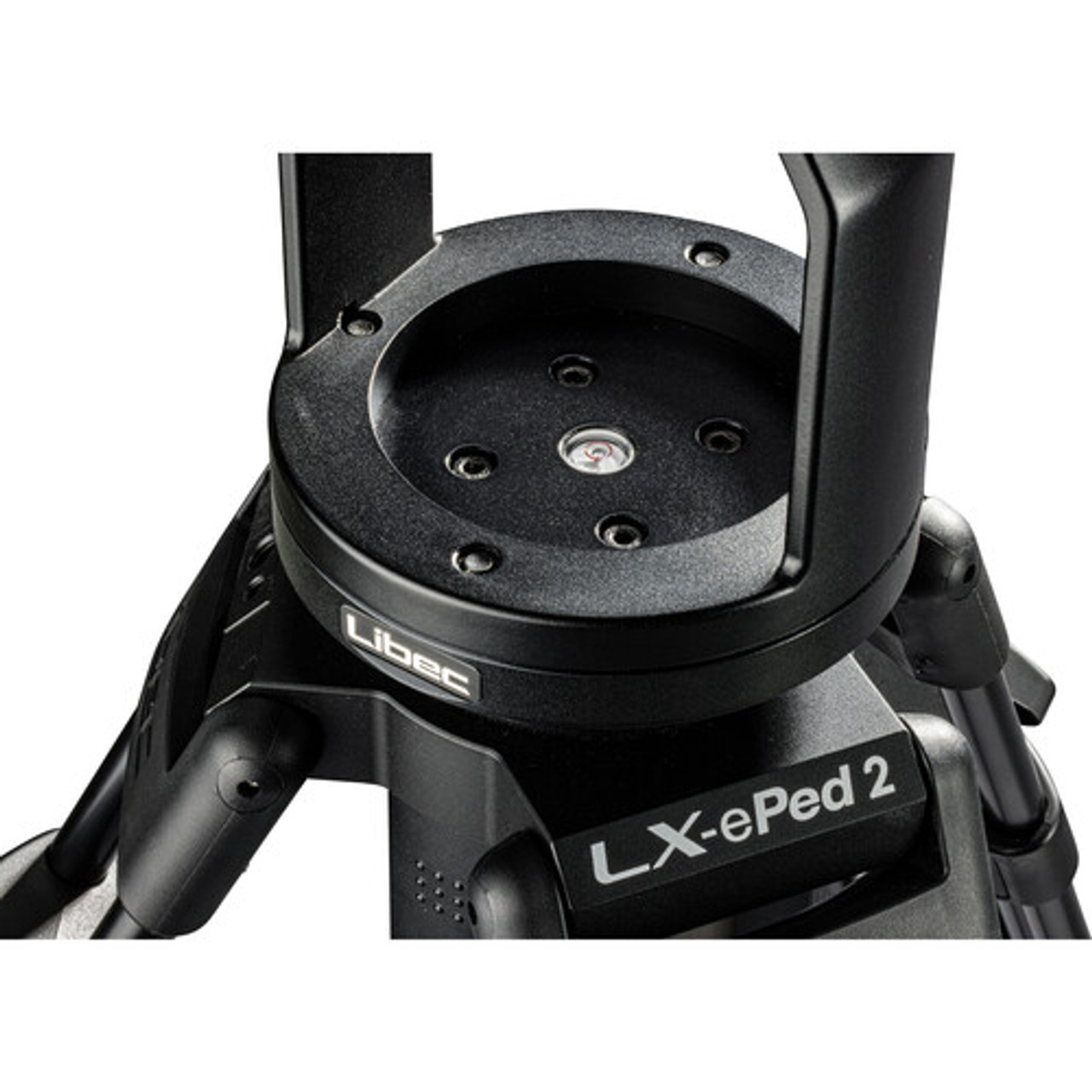

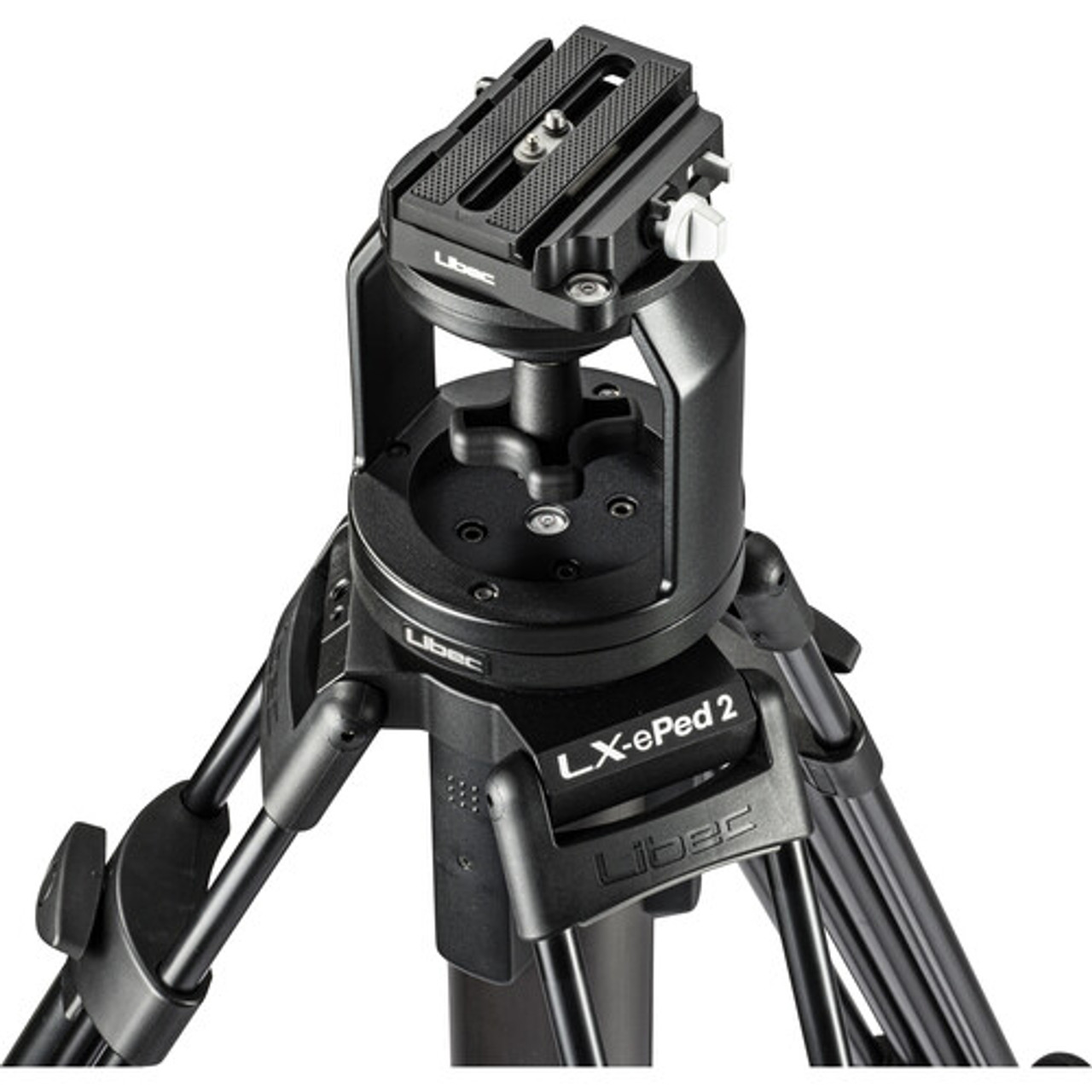

Image Gallery
Tech Specs (at a Glance)
| Load Capacity | 22 lb |
| Working Height | 38.8" – 98.4" (Studio column range; mid column travel 15.7") |
| Head Interface | 100mm bowl; flat-base compatible via included adapters |
| Camera Mount | 1/4"-20 & 3/8"-16 screws |
| Control | Wired LAN (PoE), elevation rocker, up to 3 min continuous |
| Mobility | Standard dolly with 3.9" wheels |
| Power | AC/DC adapter included; optional VM-12V for V-mount battery |
| Notables | 3 position presets, built-in bubble level, safety-minded design |
Ready to elevate your live production?
Email our team for pricing, availability, and recommended PTZ/head pairings.
