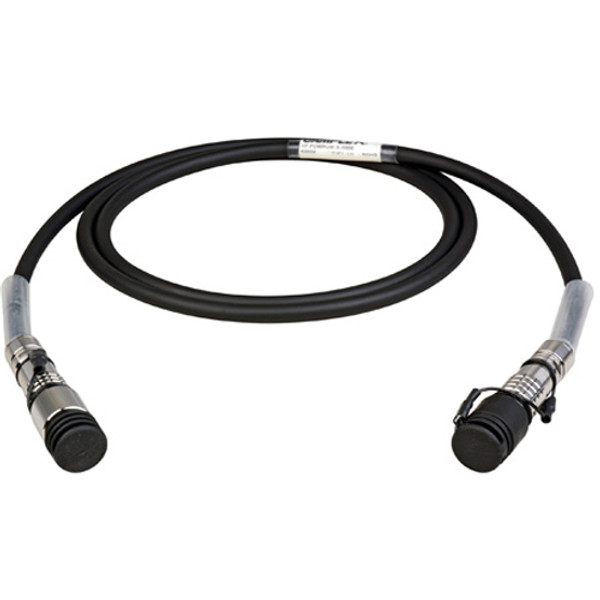

Camplex HF-FUWPUW-S-0025 LEMO FUW Male to LEMO PUW Female Indoor Studio Fiber Camera Cable (25')

Camplex HF-FUWPUW-S-0025 LEMO FUW Male to LEMO PUW Female Indoor Studio Fiber Camera Cable (25')

The 25' LEMO FUW Male to LEMO PUW Female Indoor Studio Fiber Camera Cable from Camplex features ultra-precision LEMO-certified, machine-polished fiber contacts for the most demanding high-speed uncompressed HD video transmissions over long distances. All assemblies are multi-stage machine-polished and tested for
Assembled with Belden flexible studio broadcast cable, it integrates the power line for TV cameras, control line, and optical fiber for video and audio transmission. It consists of two single-mode optical fibers, four 20 AWG and two 24 AWG-tinned copper conductors cabled around a steel-strength element, and an overall tinned copper braid. This general-purpose cable is used for studios, patching, and light-to-medium field use. A flexible PVC blend jacket allows for ease of use within the studio.

Camplex HF-FUWPUW-S-0025 LEMO FUW Male to LEMO PUW Female Indoor Studio Fiber Camera Cable (25')

Product Highlights:

• Assembled with Belden 96040 flexible studio SMPTE cable and LEMO connectors
• Industry-standard cable
• Terminations by LEMO-certified technicians
• Electrical assemblies 100% tested for continuity and short circuits
• Fiber optic assemblies 100% tested for attenuation and back reflection
• SMPTE 311M and 304M compliant
• Stainless-steel assembly
• Rubber dust caps
• 19.4 Mb/s to 3 Gb/s transport rate
• Machine-polished fiber contacts
• Low insertion and return loss

• Camplex LEMO FUW Male to LEMO PUW Female Indoor Studio Fiber Camera Cable (25')
• Limited 1-Year Warranty

Camplex HF-FUWPUW-S-0025 LEMO FUW Male to LEMO PUW Female Indoor Studio Fiber Camera Cable (25')

Camplex HF-FUWPUW-S-0025 LEMO FUW Male to LEMO PUW Female Indoor Studio Fiber Camera Cable (25')

The 25' LEMO FUW Male to LEMO PUW Female Indoor Studio Fiber Camera Cable from Camplex features ultra-precision LEMO-certified, machine-polished fiber contacts for the most demanding high-speed uncompressed HD video transmissions over long distances. All assemblies are multi-stage machine-polished and tested for
Assembled with Belden flexible studio broadcast cable, it integrates the power line for TV cameras, control line, and optical fiber for video and audio transmission. It consists of two single-mode optical fibers, four 20 AWG and two 24 AWG-tinned copper conductors cabled around a steel-strength element, and an overall tinned copper braid. This general-purpose cable is used for studios, patching, and light-to-medium field use. A flexible PVC blend jacket allows for ease of use within the studio.

General

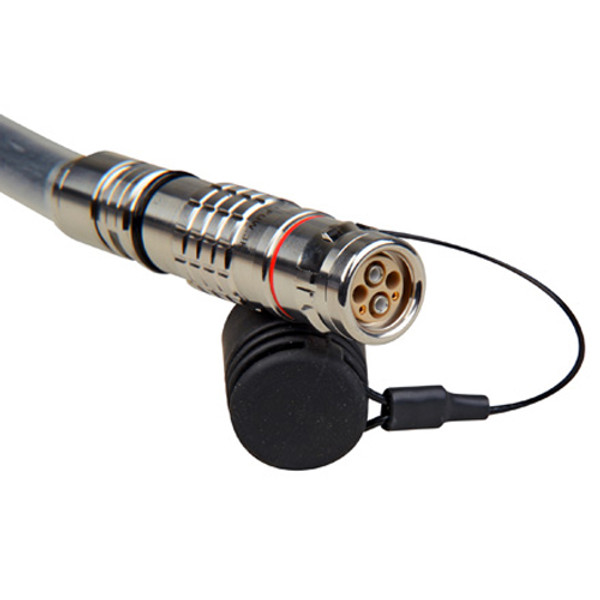

Connector 1	FUW Male

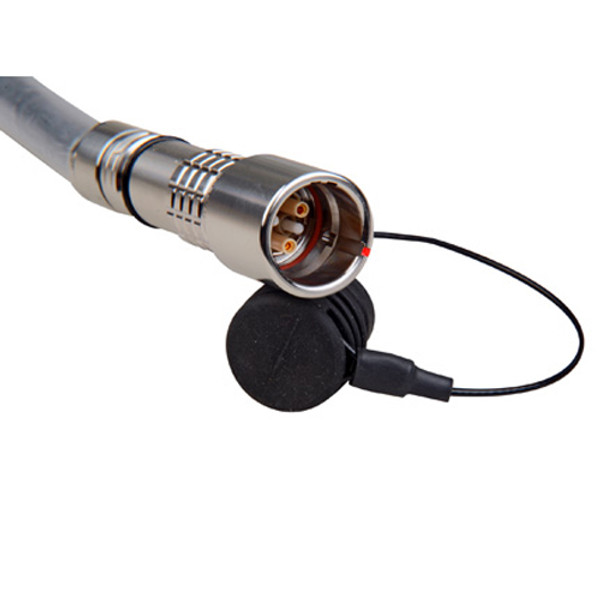

Connector 2	PUW Female
Coupling Type	LEMO (SMPTE)
Cable Length	25' / 7.6 m
