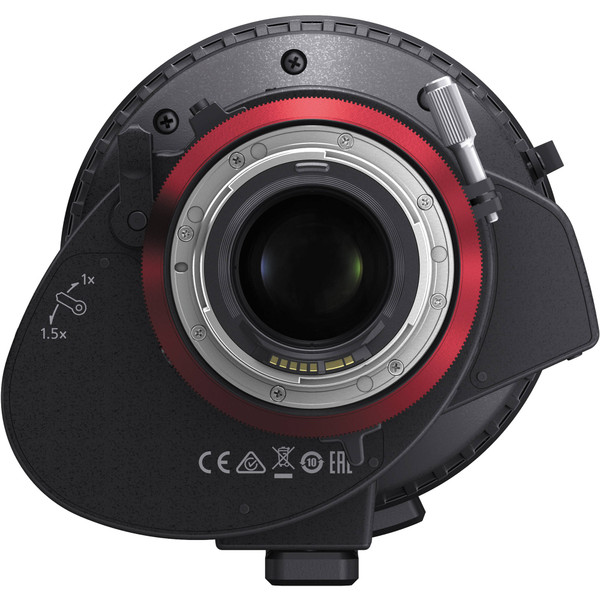

Canon CINE-SERVO 50-1000mm T5.0-8.9 with EF Mount
Product Highlights:
- Covers up to Super 35mm Sized Sensors
- 50 to 1000/75 to 1500mm Zoom
- ENG-Style Zoom, Focus, Iris Servos
- For Broadcast or Cinema Shooting Styles
Canon CINE-SERVO 50-1000mm T5.0-8.9 with EF Mount
Canon 0438C001 CINE-SERVO 50-1000mm T5.0-8.9 with EF Mount
The CINE-SERVO 50-1000mm T5.0-8.9 with EF mount from Canon is designed to combine the functionality and form factor of a broadcast, ENG-style-servo zoom lens with the optical precision of a cinema zoom. The lens is designed for use on cinema cameras with Super 35 sized sensors and is suitable for 4K acquisition. With a detachable drive mechanism and support for rod attachment, it is designed to be equally at home whether being used by a solo camera operator or a full production team. The lens features a 20x optical zoom and a focal length range of 50 to 1000mm with a maximum T stop of 5.0 at the wide end. The lens features a built-in 1.5x extender providing a 75 to 1500mm zoom range, capable of supporting 4K resolution.
The lens features 180° of focus rotation for precise focus pulls and is marked in both feet and meters. The detachable drive unit, can be removed and reattached with the zoom in nay position, requiring no re-calibration. It also supports motorized zoom speeds ranging from 1.5 seconds to 180 seconds to zoom throughout the entire range. The zoom control includes a mini-LCD that displays zoom, focus, and iris setting. The lens mount supports electronic signal pass through, supporting EOS lens data management functions. The built-in, 12-pin connector allows you to interface this lens with standard broadcast connectors. The 11-blade iris creates circular out of focus highlights and a natural looking Bokeh.
| Canon Cine-Servo 50-1000mm T5.0 Specs |
|---|
| General |
|---|
| Focal Length |
50 to 1000mm |
| Lens Mount |
Canon EF |
| Format |
Super35/APS-C |
| Maximum T-Stop |
T5.0 to 8.9 |
| Diagonal Angle of View |
Super35: 33.3 to 1.61° |
| Minimum Focus Distance from Image Plane |
11.5' / 3.5 m |
| Iris Blades |
11 |
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
Iris: 0.5 MOD / 51 Pitch
Zoom: 0.5 MOD / 51 Pitch |
| Front Diameter |
136 mm |
| Zoom Ratio |
20x |
| Dimensions (W x H) |
6.9 x 6.7" / 175.3 x 170.2 mm |
| Length |
16.3" / 413.2 mm |
| Weight |
14.6 lb / 6.6 kg |
