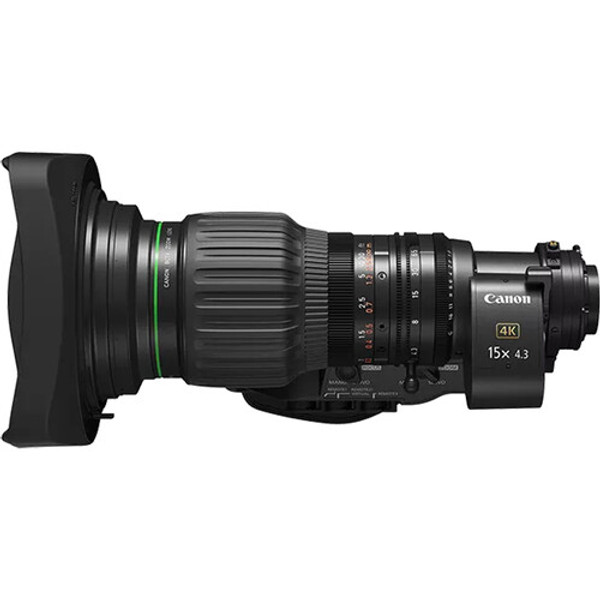

Canon CJ15EX4.3B IASE S 4K UHDxs 2/3" 15x Wide Servo Lens with Type-S Drive
Product Highlights:
- 4.3-65mm Lens for 2/3" Cameras
- UHD 4K with HDR/WCG Support
- 15x Zoom Ratio, Compact & Lightweight
- Built-In 2x Extender, Type-S Drive Gen 4
- Air Sphere Coating Reduces Ghosting
- Minimal Distortion, Chromatic Aberration
- Multi-Group, Aspheric Lens Elements
- 3 x 20-Pin Connectors, Onboard Display
- Shuttle Shot, Frame & Speed Presets
- Zoom, Focus & Virtual Output Control
- Canon CJ15ex4.3B IASE S 4K UHDxs 2/3" 15x Wide Servo Lens with Type-S Drive
- Lens Hood
- Lens Cap
- Dust Cap
- Hood Cap
- Limited 1-Year Manufacturer Warranty
Canon CJ15EX4.3B IASE S 4K UHDxs 2/3" 15x Wide Servo Lens with Type-S Drive
Canon CJ15EX4.3B IASE S 4K UHDxs 2/3" 15x Wide Servo Lens with Type-S Drive
Capture optimal UHD 4K footage with the 4.3–65mm CJ15ex4.3B IASE S 4K UHDxs 2/3" 15x Wide Servo Lens from Canon. The CJ15ex4.3B IASE S is a wide 15x zoom lens for 2/3" format ENG/EFP cameras that features a compact, lightweight design, a built-in 2x extender, advanced coating, aspheric elements, and support for UHD 4K and HDR/WCG footage with minimized distortion and chromatic aberration. The Type-S servo drive increases the lens' operational efficiency and reduces power consumption. This lens incorporates a B4 mount that is standard for ENG/EFP lenses.
Focus, zoom, and iris are all servo controlled, providing extremely smooth zoom, focus, and iris pulls. The Type-S digital drive unit uses three 20-pin connectors for interfacing with controllers like the ZSC-300D and FPD-400D and provides a 16-bit interface to virtual systems. It also has an onboard display for setting up a variety of functions, including Shuttle Shot, Frame Preset, and Speed Preset.
Compact Wide Zoom
- Ideal for documentary and other in-the-field productions, this compact, lightweight 15x zoom has a focal length range of 4.3–65mm and 8.6–130mm with the built-in 2x extender.
Optimal 4K Optical Performance with HDR
- Offers optimal 4K optical performance with high-index optical glass, high contrast, and minimal distortion.
- Optical dynamic range supports HDR imaging.
- Wider color gamut support for BT.2020.
- Provides sharp resolution from the image center to the edges.
- Minimizes chromatic aberration in virtually any shooting condition.
- Canon Air Sphere Coating (ASC) technology reduces ghosting intensity for improved HDR capture.
Type-S Drive Unit
- Matches the aberration-correction function on the camera without initialization at power-on.
- A 10% reduction in power consumption for FIZ when using a battery as compared to previous versions.
- Real and virtual images can easily be calibrated with high-precision position detection.
- Three 20-pin connectors enable simultaneous full servo and virtual system operation.
- Easy operation with a straightforward menu and display.
Digital Functions
- Shuttle Shot: Select and save in and out focal points for repeatable zooms.
- Frame Preset: Preset two angles of view and zoom in and out at your preferred speed.
- Speed Preset: Save and repeat zooms at slow, stable speeds.
| Canon CJ15EX4.3B Specs |
|---|
| Sensor Compatibility |
2/3" (16:9)
|
| Focal Length |
4.3 to 65mm
With Extender: 8.6 to 130mm
|
| Built-In Extender |
No
|
| Zoom Ratio |
15x (Servo / Manual)
|
| Angle of View |
16:9
Wide: 96.3 x 64.2° (H x V)
Tele: 8.4 x 4.8° (H x V)
|
| Maximum Aperture |
f/1.8 to 2.9
|
| Focus Type |
Servo
|
| Iris Type |
Servo
|
| Macro |
Yes
|
| Minimum Object Distance |
11.8" / 30 cm
Macro: 3.9" / 10 cm
|
| Optical Image Stabilization |
No
|
| Dimensions |
: x x / x x (ø x L x W)
|
| Weight |
4.83 lb / 2.19 kg
|
| Packaging Info |
|---|
| Package Weight |
9.405 lb
|
| Box Dimensions (LxWxH) |
19.8 x 13.5 x 10.3"
|
