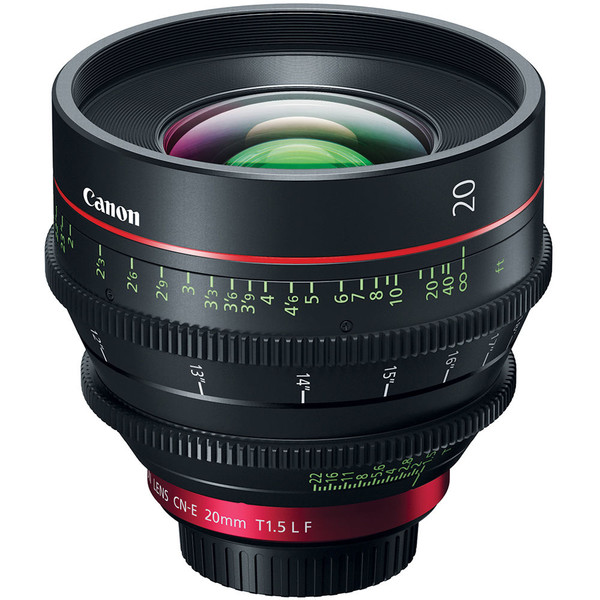

Canon CN-E 20mm T1.5 L F Cinema Prime Lens (EF Mount)
Product Highlights:
- Covers Full Frame & Super 35 Sensors
- T1.5 Maximum Aperture
- 11-Blade Iris
- Breathing Minimized Virtually to Zero
- Dual Focus Markings
- Stepless 300° Focus Rotation
- Standard Cine Gears
- Same Gear Positions as Other CN-E Models
- Dust- and Water-Resistant Housing
- Canon CN-E 20mm T1.5 L F Cinema Prime Lens (EF Mount)
- Lens Cap
- Rear Lens Cap
- Limited 1-Year Warranty
Canon CN-E 20mm T1.5 L F Cinema Prime Lens (EF Mount)
Canon 3174C002 CN-E 20mm T1.5 L F Cinema Prime Lens (EF Mount)
The Canon CN-E 20mm T1.5 L F Cinema Prime Lens is a manual focus prime lens that covers Full Frame and Super 35 sensor formats. The lens offers a maximum aperture of T1.5, useful when shooting in low light situations or when you want to capture that exceedingly shallow depth of field look. It has an 11-blade iris that provides round, out-of-focus highlights for a natural looking bokeh. The lens barrel features 300° of stepless, smooth rotation from close focus to infinity, giving you a high degree of precision and consistent focus.
The lens features standard cine lens gears and is designed to minimize focus breathing and also has innovative glass construction that counteracts barrel expansion and contraction to avoid temperature-induced marking discrepancies. It's dual focus, with markings on both sides of the barrel. The rear markings are on an angled surface, making it readable form either side of the camera. It also has a dust- and water-resistant housing to minimize maintenance during normal use.
| Canon Cinema Prime CN-E 20mm T1.5 Specs |
|---|
| Focal Length |
20mm |
| Lens Mount |
Canon EF |
| Format |
Full Frame |
| Maximum T-Stop |
T1.5 |
| Diagonal Angle of View |
Full Frame: 104.34°
Super35: 73.8° |
| Horizontal Angle of View |
Full Frame: 84°
Super35: 63.2° |
| Minimum Focus Distance |
From : 12" / 31 cm |
| Iris Blades |
11 |
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch |
| Front Diameter |
114 mm |
| Filter Thread |
105 mm |
| Focus Rotation |
300° |
| Electronic Communication |
Yes |
| Dimensions (W x H) |
4.66 x 4.66" / 118.4 x 118.4 mm |
| Length |
4" / 10.2 cm |
| Weight |
2.6 lb / 1.2 kg |
| Packaging Info |
|---|
| Package Weight |
4.4 lb |
| Box Dimensions (LxWxH) |
8.8 x 8.1 x 8.1" |
