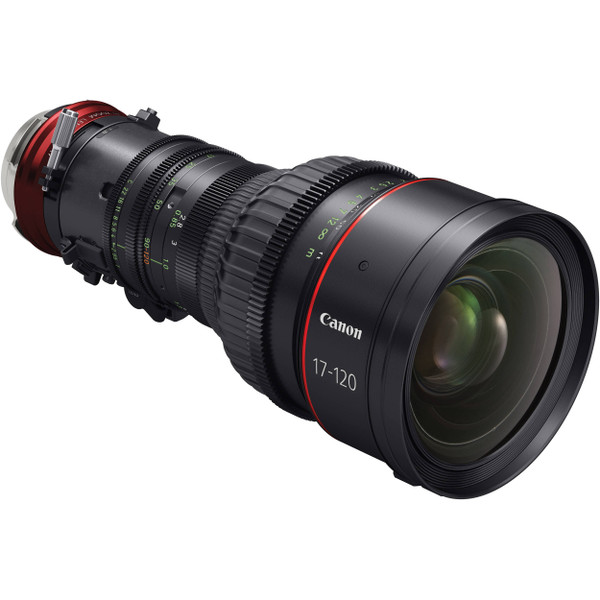

Canon CN7x17 KAS S Cine-Servo 17-120mm T2.95 (EF Mount)
Product Highlights:
- ENG-Style Zoom, Focus, and Iris Servos
- For Broadcast or Cinema Shooting Styles
- 180° Focus Ring with Knurled Grip
- Double Focus Markings in Feet and Meters
Canon CN7x17 KAS S Cine-Servo 17-120mm T2.95 (EF Mount)
Canon 9785B001 CN7x17 KAS S Cine-Servo 17-120mm T2.95 (EF Mount)
The Cine-Servo 17-120mm T2.95 with EF mount from Canon is designed to combine the functionality and form factor of a broadcast, ENG-style motorized zoom lens with the optical precision of a cinema zoom. The lens is designed for use on cinema cameras with sensors up to Super 35mm (26.2 x 13.8mm) in size and is suitable for 4K acquisition. With a detachable drive mechanism and support for rod attachment, it is designed to be equally at home whether being used by a solo camera operator or a full production team.
With a 17 to 120mm focal length, the lens features 7x zoom and has a maximum aperture of T 2.95 when set to 91mm or wider. Additionally, it features an 11 blade iris to create circular bokeh patterns as well as to reduce refraction. For ENG-style shooters the lens drive features servo motors powering zoom, focus, and iris. The lens can be connected to the camera either using a standard 12-pin connector or will communicate directly through the lens mount when attached to compatible cameras. Three 20-pin connectors below the servo housing allow many Canon and third-party zoom, focus, and iris controllers to be connected.
Packaging Info
| Canon Cine-Servo 17-120mm T2.95 Specs |
|---|
| General |
|---|
| Focal Length |
17 to 120mm |
| Lens Mount |
Canon EF |
| Format |
Super35/APS-C |
| Maximum T-Stop |
T2.95 to 3.9 |
| Diagonal Angle of View |
Super35: 87.2 to 14.1° |
| Minimum Focus Distance from Image Plane |
2.8' / 0.85 m |
| Iris Blades |
11 |
| Gear MOD & Pitch |
Focus: 0.8 MOD / 32 Pitch
Focus: 0.4 MOD / 64 Pitch
Zoom: 0.5 MOD / 51 Pitch |
| Front Diameter |
114 mm |
| Zoom Ratio |
7x |
| Dimensions (W x H) |
6.9 x 4.9" / 175.3 x 124.5 mm |
| Length |
10.4" / 263 mm |
| Weight |
6.4 lb / 2.9 kg |
| Package Weight |
14.2 lb |
| Box Dimensions (LxWxH) |
21.339 x 13.622 x 13.386" |
