Clear-ComCZ-DX410-4UP 4-Up DX410 Li-Ion Belt Pack System with CC-15 Headsets
Product Highlights:
- Two-channels
- 7kHz wideband audio
- 2-wire and 4-wire bridging
- 2-wire auto-nulling
- Lost packet concealment
- Upgraded radio
- Supports up to 15 beltpacks and/or wireless headsets
Clear-ComCZ-DX410-4UP 4-Up DX410 Li-Ion Belt Pack System with CC-15 Headsets

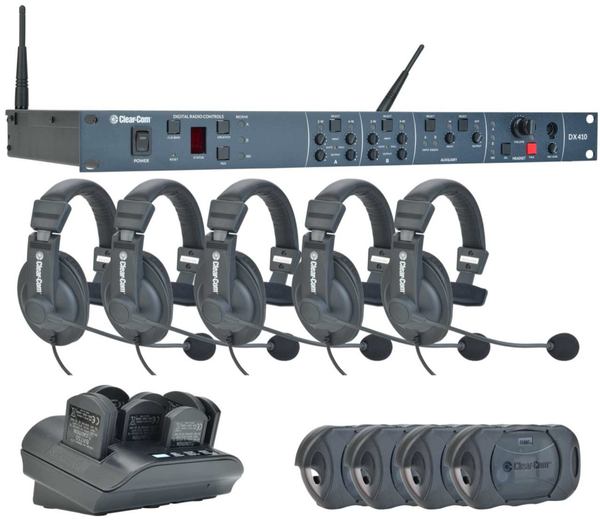

Clear-Com CZ-DX410-4UP 4-Up DX410 Li-Ion Belt Pack System with CC-15 Headsets
The DX410 is a newly designed two-channel digital wireless system, operating in the 2.4GHz band, that delivers an overall better experience in performance, range and sound. The system features 7kHz wideband audio, 2-wire and 4-wire bridging, and 2-wire auto-nulling for fast integration with Clear-Com or TW wired partyline systems.
The BS410 is the base station for the DX410 wireless system, supporting up to 15 registered BP410 beltpacks and/or WH410 all-in-one wireless headsets. The system operates in the 2.4GHz frequency band and features high quality 7kHz wideband audio. The BS410 allows the option for audio bridging by combining 2-wire and 4-wire audio together on A or B channels.
The BP410 is a rugged, light-weight, ergonomically designed beltback to be used with the BS410 base station. Single-channel operation allows any four beltpack and/or all-in-one wireless headset uses to engage in simultaneous, full-duplex communication. In dual-channel operation, three users may be in full-duplex with up to 13 additional users in listen-only mode. The BP410 has a rugged, over-mold, reinforced casing and long-lasting keypads with no mechanical switch. Using the BAT50 Li-Ion battery, the BP410 has up to 12 hours of battery life.
The AC50 is a battery charger for the BAT50 batteries. The AC50 can charge up to four BAT50s simultaneous with additional reserve slots for four extra batteries. Charge time is 2.5 hours.
| Audio |
|---|
| Channels |
2 audio channels |
| Capacity |
Up to 15 BP410 and/or WH410 per base station |
| Full-Duplex |
Yes. Single-channel = 4 in simultaneous full-duplex. Dual-channel = 3 in simultaneous full-duplex |
| Radio Frequency Range |
2400 - 2483.5 MHz |
| Audio Frequency |
200 Hz - 7kHz |
| 4-wire I/O |
RJ45, 600 Ohms balanced, level adjustable, simultaneous operation with 2-wire |
| 2-wire I/O |
XLR-3M, XLR-3F, externally-switchable RTS or Clear-Com, 200 Ohms, level adjustable, null adjustable to 50dB attenuation, typical |
| Aux Input |
XLR-3F with ¬" (6.35mm) combo jack, 600 Ohms balanced, level adjustable |
| Aux Output |
XLR-3M, 600 Ohms balanced, level adjustable |
| Headset Connector |
4-pin mini-DIN, Electret microphone |
| Headset Output |
200mW into 32 Ohms |
| Antenna Type |
External 1/2-wave dipole (R-TNC connector), RX/TX horizontal/vertical diversity |
| System Distortion |
<2% |
| Communication Security |
64-bit encryption, dual-slot diversity |
| Transmitter |
|---|
| Type |
Frequency Hopping, Spread Spectrum (FHSS) |
| Transmit Power |
100mW burst |
| Modulation Type |
Gaussian filtered FSK, TDMA |
| Frequency Stability |
13 ppm |
| Harmonics/Spurious |
Exceeds FCC and ETSI specifications over temperature |
| Receiver |
|---|
| Type |
Frequency Hopping, Spread Spectrum (FHSS) |
| RF Sensitivity |
<-90dBm w 10-3 BER |
| Frequency Stability |
13 ppm |
| Distortion |
<2% |
| Power Requirements |
100 - 240 VAC, 50 - 60 Hz or 12 - 14 VDC |
| Environmental |
|---|
| Temperature |
+32°F - +122°F (0°C - +50°C) |
| Dimensions |
1.75 x 19.0 x 17.13 in (44 x 483 x 435 mm) (HxWxD) |
| Weight |
9 lbs (4.1 kg) |
