Clear-Com FreeSpeak II Digital Wireless Intercom System with 10 Beltpacks and Headsets, 2 Remote Antennas, 10 Batteries, (2) 5 Bay Chargers
Product Highlights: - Routing and configuration of up to 25 FSII beltpacks
- Browser-based configuration tool
- Four 2-wire ports with call signal, auto-nulling
- Four 4-wire ports with call signal
- One dry contact relays
- Multi-mode user interface w/ monitoring, setup & main station modes w/ assignable soft keys
- Dedicated front panel keys for remote mic kill, stage announce and all talk
- Supports both 1.9GHz & 2.4GHz FSII beltpacks on a single base station
- Matrix and partyline configurations support up to 12 channels and/or groups
Click here for PDF

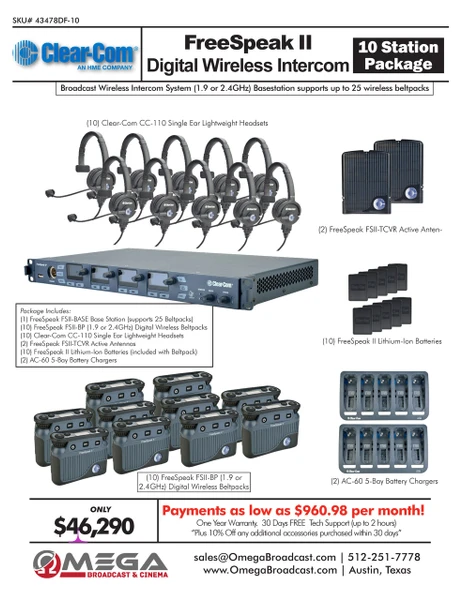

(1) FreeSpeak FSII-BASE Base Station (supports 25 Beltpacks)
(10) FreeSpeak FSII-BP (1.9 or 2.4GHz) Digital Wireless Beltpacks
(10) Clear-Com CC-110 Single Ear Lightweight Headsets
(2) FreeSpeak FSII-TCVR Active Antennas
(10) FreeSpeak II Lithium-Ion Batteries
(2) AC-60 5-Bay Battery Chargers
Clear-Com FreeSpeak II Digital Wireless Intercom System with 10 beltpacks and Headsets, 2 Remote Antennas, 10 Batteries, (2) 5 Bay Chargers
Clear-Com FreeSpeak II (1.9 or 2.4GHz) 10 Station Digital Wireless Intercom System
The FSII-BASE-II is a base station (includes 25 licenses) for the wireless FreeSpeak II 1.9GHz and 2.4GHz active transceiver and beltpacks with four 2-wire analog partyline connections, four 4-wire audio connections and four digital displays with soft keys. The base station can operate a mix of up to (25) 1.9GHz and/or 2.4 GHz beltpacks on a single system. The base station can be used in Main Station mode with Talk and Call soft keys or as a Headset Station for communication and monitoring from the panel. The base station's digital displays allow easy system configuration directly from the base station or through the browser-based Core Configuration Manager tool.
| FreeSpeak II Base II |
|---|
| Base-to-Beltpack Frequency Response: |
100Hz - 7.1kHz |
| No. of Beltpacks per Base Station: |
25 |
| No. of Transceiver/ Antennas Supported by Base: |
10 |
| No. of Active Transceiver Ports: |
2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver |
| PC Programming Port: |
2 LAN RJ45 |
| Relay Port: |
DB15, supports 1 set of relays and 2 GPI |
| Partyline A ,B,C,D (each): |
XLR-3F, on/off termination switch, Clear-Com and RTS compatible |
| Partyline Power On/Off: |
A/B, C/D paired |
| Partyline Output Voltage: |
26 - 28VDC, 850mA per pair (A/B or C/D) |
| Four-Wire/Matrix Connection: |
4 RJ-45 |
| Program Input: |
LR-3F, transformer isolated, line-level input |
| Stage Announce Output: |
XLR-3M, transformer isolated, line-level output |
| Front Panel Headset: |
4-pin male and 5-pin female options |
| Front Panel Displays: |
4 OLED’s with encoders and assignable soft keys |
| Front Panel Indicators: |
Antenna Status, Beltpack Status |
| External Power Supply Connection: |
12VDC |
| Base Station Programming/Editing: |
Push-to-enter rotary encoder |
| Dimensions |
1.75 x 19.0 x 10.2 in (HxWxD)
(44 x 483 x 259 mm) |
| Weight |
5.57 lbs (2.5 kg) |
