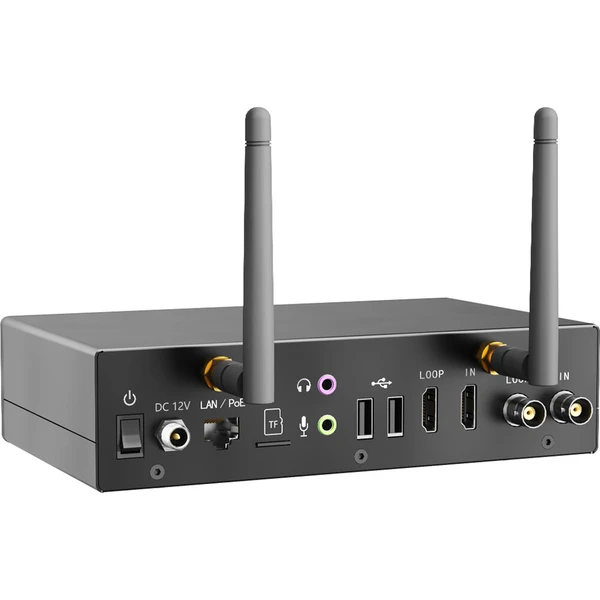

CNDLive C6 Dual-Channel HDMI/SDI Video Encoder and Recorder
Product Highlights:
- Live Streaming and Recording Encoder
- 4K30 HDMI and 1080p60 SDI Ports
- Support for H.264/H.265, NDI|HX2/NDI|HX3
- Up to 8 Simultaneous Streams
- 2 USB-A, Gigabit Ethernet Ports
- 2" LCD, Onboard Tally Light
- CNDLive C6 Dual-Channel HDMI/SDI Video Encoder and Recorder
- Limited 1-Year Manufacturer Warranty
CNDLive C6 Dual-Channel HDMI/SDI Video Encoder and Recorder
CNDLive CND-C6 C6 Dual-Channel HDMI/SDI Video Encoder and Recorder
Stream, record, and encode video content in professional broadcast applications with the C6 Dual-Channel HDMI/SDI Video Encoder and Recorder from CNDLive. The encoder features an HDMI input that supports up to 4K30 video and a 3G-SDI input that supports up to 1080p60 video. Both ports have corresponding loop outputs for monitoring. Stream your video simultaneously to up to eight IP or NDI sources thanks to the encoder's H.264 and H.265 encoding support.
These codecs can then be streamed via NDI|HX2, NDI|HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, and RTSP protocols. A microSD card slot can record your footage directly to a storage device. Additional connectivity on the encoder includes two USB-A ports for host computers or storage devices, as well as a Gigabit Ethernet port for PoE and Wi-Fi 6. Monitor your settings with the 2" LCD and monitor your live status with the onboard tally light.
Additional Details
- Dual-channel inputs for 4K30 HDMI and 1080p60 3G-SDI with loop outputs
- Stream to eight different platforms simultaneously (one stream for NDI|HX)
- Arrange inputs as Picture-in-Picture or Picture-by-Picture
- Supports H.265/H.264 encoding to a wide range of streaming protocols, including NDI|HX2, NDI|HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, and RTSP
- 2" full-color LCD screen for easy monitoring and menu navigation
- Remote control via a web browser for seamless operation
- Gigabit Ethernet and Wi-Fi 6 connectivity
- 3.5mm audio input, headphone output, tally light, and POE/12 VDC power options
| CNDLive CND-C6 Specs |
|---|
| Inputs/Outputs |
|---|
| Video I/O |
Input
1x BNC (3G-SDI)
1x HDMI 2.0
Output
1x BNC (3G-SDI) (Loop Output)
1x HDMI (Loop Output)
|
| Audio I/O |
Input
1x 1/8" / 3.5 mm TRS
Output
1x 1/8" / 3.5 mm TRS
|
| Other I/O |
Input/Output
1x RJ45 (LAN)
Input
2x USB-A
|
| Format Support |
|---|
| Embedded Audio |
HDMI/SDI
|
| Internal Recording |
H.264/H.265
3840 x 2160 at 30.00 fps
1920 x 1080p at 23.98/50/24.00/25/29.97/59.94/30.00/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/29.97/59.94/30.00/60.00 fps
720 x 576i at 50 fps
720 x 480i at 59.94 fps
|
| Reclocking |
No
|
| Standards |
|---|
| Broadcast System Compatibility |
NTSC, PAL
|
| IP Streaming |
|---|
| IP Video |
Encoding via H.264/H.265
720 x 480i to 3840 x 2160
|
| IP Audio |
Encoding
AAC/G.711
|
| Transport Protocols |
HLS, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTSP, SRT, UDP
|
| Simultaneous Streams |
8 Streams
|
| Hardware |
|---|
| Media/Memory Card Slot |
Single Slot: microSD (Unspecified Type)
|
| Wireless |
Wi-Fi 6 (802.11ax)
|
| Cellular Support |
No
|
| Display |
|---|
| Display |
2" LCD
|
| Power |
|---|
| Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| PoE Support |
Yes: PoE Proprietary
|
| Power Consumption |
9 W
|
| General |
|---|
| Operating Conditions |
14 to 113°F / -10 to 45°C
|
| Storage Conditions |
-4 to 113°F / -20 to 45°C
|
| Dimensions |
7.1 x 4.3 x 1.9" / 180 x 109 x 47.8 mm
|
| Weight |
14.1 oz / 400 g
|
| Packaging Info |
|---|
| Package Weight |
2.58 lb
|
| Box Dimensions (LxWxH) |
9.4 x 9.2 x 2.9"
|
