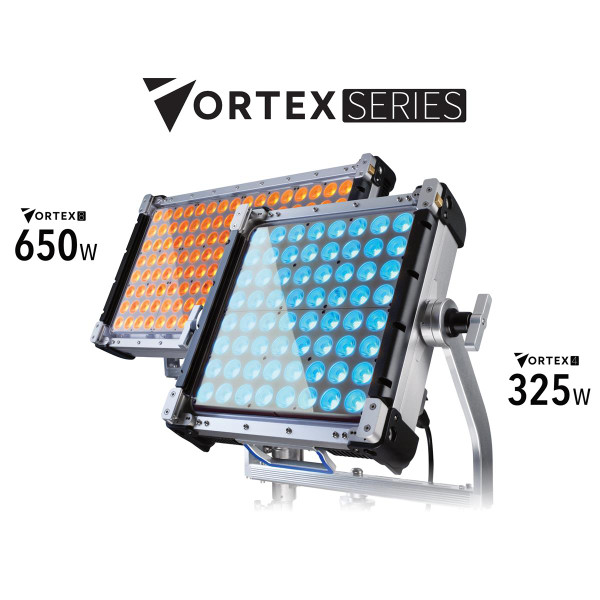

Creamsource Vortex4 1x1 RGBW 325W LED Light

Creamsource K-CSV-4-ESS Vortex4 1x1 RGBW 325W LED Light

The Vortex4 is a 1x1 RGBW all-in-one lighting system with integrated power supply and antennas. A punchy 20 Degree beam gives a whopping 7,300lux @3m. This fixture has a CCT range from 2200K to 15000K and four independently controllable zones. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.

Effects, color gels and our latest 'FrameSync' technology are built into the latest CreamOS architecture. Like it's big brother, Vortex4 has no problem with bad weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.

Vortex4 adopts 'Vortex Connect' including LumenRadio TimoTwo built in, Ethernet with sACN, Bluetooth, Wifi, 5pin DMX, USB type A and Creamsource Accessory port, enabling a plethora of control possibilities and future protocol support. New rigging points have been built into Vortex4 to accommodate rapid rigging of large arrays of units.Battery powered operation is also supported with a dedicated 48V DC input

Creamsource Vortex4 1x1 RGBW 325W LED Light

Product Highlights:

• A premium high powered 1 x1 LED fixture designed to for heavy use in all conditions
• IP65 Water resistant with a built in power supply and all the advanced connectivity
• This fixture has a CCT range from 2200K to 15000K
• A punchy 20 Degree beam gives a reading of 7,300lux @3m

• Creamsource Vortex4 1x1 RGBW 325W LED Light
• Yoke
• Power Cable
• Flat Diffuser
• Creamsource 3 Year Limited Warranty on Fixtures
• 1 Year Limited Warranty on Accessories

Creamsource Vortex4 1x1 RGBW 325W LED Light

Creamsource K-CSV-4-ESS Vortex4 1x1 RGBW 325W LED Light

The Vortex4 is a 1x1 RGBW all-in-one lighting system with integrated power supply and antennas. A punchy 20 Degree beam gives a whopping 7,300lux @3m. This fixture has a CCT range from 2200K to 15000K and four independently controllable zones. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.

Effects, color gels and our latest 'FrameSync' technology are built into the latest CreamOS architecture. Like it's big brother, Vortex4 has no problem with bad weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.

Vortex4 adopts 'Vortex Connect' including LumenRadio TimoTwo built in, Ethernet with sACN, Bluetooth, Wifi, 5pin DMX, USB type A and Creamsource Accessory port, enabling a plethora of control possibilities and future protocol support. New rigging points have been built into Vortex4 to accommodate rapid rigging of large arrays of units.Battery powered operation is also supported with a dedicated 48V DC input

Creamsource Vortex4 Specs
Material	Aluminum/Technopolymer
Light Source	RGBW LED
Color Range CCT	2200 - 15000K PLUS/MINUS GREEN HUE/SATURATION XY GELS DIRECT RGBW EFFECTS
CRI Typical	95
TLCI Typical	95
Beam Angle, SPOT Lens	20 Degree (Half Peak Angle)
Tilt Angle	360 Degree
Photometrics	3200K: 48,500 lx / 4,507 fc @ 1m / 3.3ft 15,000 lx / 1,394 fc @ 2m / 6.6ft 6,700 lx / 623 fc @ 3m / 9.8ft 3,900 lx / 362 fc @ 4m / 13.1ft 2,500 lx / 232 fc @ 5m / 16.4 ft 1,700 lx / 158 fc @ 6m / 19.7 ft 5600K: 53,100 lx / 4,935 fc @ 1m / 3.3ft 16,300 lx / 1,515 fc @ 2m / 6.6ft 7,300 lx / 678 fc @ 3m / 9.8ft 4,200 lx / 390 fc @ 4m / 13.1ft 2,700 lx / 251 fc @ 5m / 16.4 ft 1,900 lx / 177 fc @ 6m / 19.7 ft
Mounting	8x 3/8" Threaded Insert Rigging Points
Yoke	Removable quick release yoke
Filter Rails	2 Filter Rails for Secondary Lenses, Diffusers, Accessories
User interface	High Precision Digital Magnetic Encoder, Backlit Keypad, Color LCD Display
Dimming	0-100% with High Resolution, Super-Smooth Low End Mode
High Speed Capability	Over 5000fps Flicker Free in High Speed Mode
Synchronization	Sync Input for Triggering and Syncing to Camera Shutter
Max Ambient Temperature	40 Degree C
Cooling	Low noise variable speed fans
Estimated LED Lifespan	50,000hrs (L70)
Input (AC)	100-240V AC, 50/60Hz, Max 3.3A. Neutrik PowerConTrue connector
Input (DC)	48V DC, Max 6.9A, Can run at 100% brightness on DC input
Protection Class	IP65
Control	On-Board Interface DMX via standard 5-pin XLR connectors Wired Remote Control Accessory Integrated Lumen radio Timo Two with Bluetooth Ethernet USB Type A
Weight	Excluding Yoke: 21.5 lbs (9.76kg) Yoke Weight: 3.6 lbs (1.64kg)
Dimensions	Excluding Yoke: 15 x 15 x 4.8" (380 x 380 x 121mm) Including Yoke: 20.7 x 22.4 x 7.1" (525 x 570 x 179.25mm)
