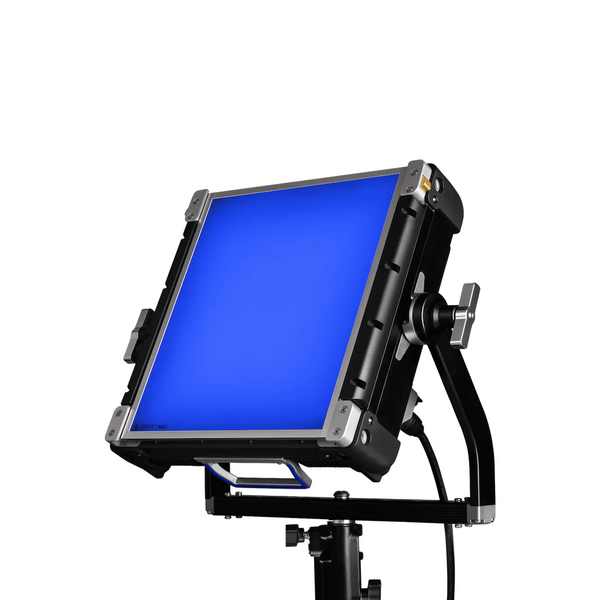

Creamsource K-CSV-4S-ESS Vortex4S Soft RGB LED Light Panel
The Creamsource Vortex4 Soft RGB LED Light Panel is designed to deliver soft, even illumination while offering advanced color control and high output efficiency. Producing 325W of power, the fixture uses an RRGBBW LED configuration (red, deep red, green, blue, royal blue, and white) to create a broad spectrum of colors and lighting effects. With a wide open-face 110° beam, the Vortex4 Soft generates up to 9770 lux at 3.3 feet while maintaining excellent color accuracy with a CRI/TLCI rating of 95. It also supports a wide color temperature range from 2200K to 15,000K and features four independently controllable lighting zones.
Bright, Soft Illumination
The Vortex4 Soft is a compact yet powerful all-in-one lighting solution measuring approximately 15 x 15 x 4.8 inches. Its 325W LED engine produces strong output while maintaining a soft lighting quality ideal for film, broadcast, and studio environments. The wide 110° beam angle helps create smooth and even coverage for large areas or subject lighting.
Advanced Technology
The Vortex4 Soft integrates Creamsource’s Vortex Connect technology, offering a wide range of control and connectivity options. Built-in LumenRadio CRMX TimoTwo, Ethernet with sACN support, Bluetooth, Wi-Fi, 5-pin DMX, USB-A, and a Creamsource accessory port allow flexible control and compatibility with evolving lighting protocols. The fixture also runs the latest CreamOS architecture, which includes built-in lighting effects, color gel emulations, and FrameSync technology. Integrated rigging points allow multiple units to be quickly assembled into large lighting arrays.
High-Speed Capability and Synchronization
Designed for high-speed cinematography, the Vortex4 Soft supports flicker-free operation up to 5000 fps. A dedicated sync input also allows the light to be triggered and synchronized with a camera shutter, making it ideal for high-speed capture and specialty lighting applications.
IP65 Weather-Resistant Construction
Built to perform in demanding environments, the Vortex4 Soft carries an IP65 rating, protecting it against rain, dust, and snow. Its efficient cooling system uses ultraquiet fans and optimized heat dissipation to maintain stable performance while sealing and protecting the fixture’s internal electronics.
Extensive Connectivity
The Vortex4 Soft supports a wide range of wired and wireless control protocols, enabling seamless integration with existing lighting systems. Connectivity options include LumenRadio CRMX TimoTwo, Ethernet, Bluetooth, Wi-Fi, 5-pin DMX, USB-A, and a dedicated Creamsource accessory port for expanded control capabilities.
Browser-Based Control
With CreamOS V3.0, users can access a multilingual web-based interface that allows configuration and management of multiple Vortex fixtures directly from a web browser, simplifying lighting control and system management.
Durable Design and Mounting Options
Constructed from durable aluminum and technopolymer materials, the Vortex4 Soft is designed for demanding production environments. It includes a removable quick-release yoke, eight 3/8"-16 rigging points, and an integrated power supply. A dedicated 48V DC input allows the fixture to be powered by external batteries when needed.
Additional Features
The Vortex4 Soft delivers approximately 29,100 lumens and includes advanced color controls such as plus/minus green adjustment, hue and saturation control, XY color selection, built-in gel libraries, and lighting effects. The fixture supports smooth 0–100% dimming with an ultra-smooth low-end mode and features a color LCD display for easy operation. Additional features include low-noise variable-speed fans, waterproof connectors, an estimated 50,000-hour LED lifespan, and compatibility with third-party lighting systems and applications.
