DPA Instrument Microphone
Product Highlights
- Superior gain-before-feedback
- Natural sound, easy to blend with pick-up
- Flexible and easy mounting
- Mount has no impact on acoustic sound
- By DPA Microphones
DPA Microphones d:vote Core 4099 Instrument Microphone
(1) DPA Microphones d:vote 4099U Universal Clip Live Instrument Microphone
(2) 4099 Specification Sheets
(1) DPA Microphones Sticker
(1) XLR Adapter
(1) Belt Clip
(1) Clip with Hook and Loop Fastener
(1) DPA Microphones d:vote 4099U Universal Clip Live Instrument Microphone

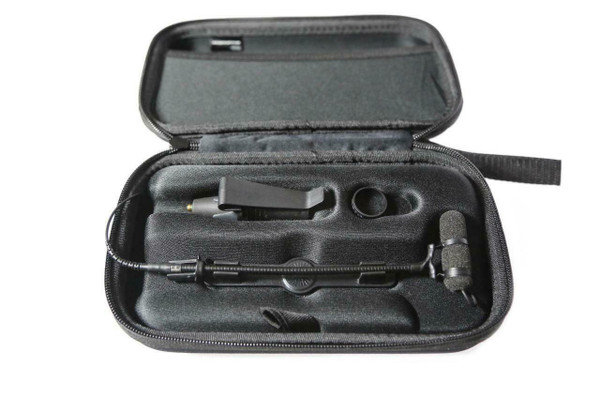

(1) DPA Microphones Soft Case
(1) DPA Microphones Hardcase
DEMO/OPEN BOX DPA Microphones d:vote 4099U Universal Clip Live Instrument Microphone
The d:vote™ The d:vote 4099U Universal Clip Microphone from DPA Microphones is designed to be used with slim bodied or unusual-shaped instruments. It includes a hook and loop fastener strap that can attach the mic to the circumference of difficult to mic instruments such as oboes, clarinets, bassoons, recorders, and flutes. The clip can also be rotated 90-degrees, doubling the amount of mounting positions available.
| General |
|---|
| Transducer Type |
Pre-Polarized Condenser |
| Polar Pattern |
Supercardioid |
| Principle of Operation |
Pressure Gradient |
| Frequency Range |
20 Hz to 20 kHz
+/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz
with 2 dB Soft Boost @ 10 to 12 kHz |
| Sensitivity |
6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
| Equivalent Noise Level |
Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted) |
| Signal to Noise Ratio |
71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
| Total Harmonic Distortion (THD) |
< 1 % up to 123 dB SPL peak
< 1 % up to 120 dB SPL RMS sine |
| Dynamic Range |
100 dB |
| Maximum SPL |
142 dB (Peak Before Clipping) |
| Output Impedance |
MicroDot: 30 to 40 Ω,
XLR: 100 Ω |
| Cable Drive Capability |
XLR: 984' (300 m) |
| Output Balance Principle |
Signal balanced with XLR adapter |
| CMRR |
XLR Adapter: > 60 dB at 50 Hz to 15 kHz |
| Power SupplyM |
Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems
48 V phantom power ±4 V with XLR adapter |
| Current Consumption |
Microdot: 1.5 mA
XLR Adapter: 3.5 mA |
| Connector |
Microdot
XLR Adapter Included |
| Polarity |
Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
| Operating Temperature |
-40 to 113°F (-40 to 45°C) |
| Relative Humidity |
Up to 90% |
| Cable Length |
6' (1.8 m) |
| Gooseneck |
Length: 5.5" (140 mm) |
| Capsule Diameter |
0.2" (5.4 mm) |
| Microphone Length |
1.8" (45 mm) |
| Weight |
1.4 oz (41 g) |
