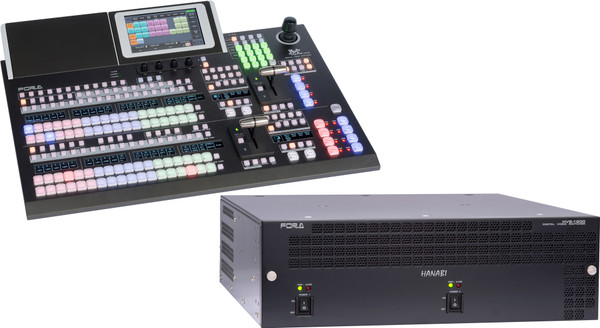

FOR.A HVS-1200-TYPE A Hanabi 4K/12G/3G/HD Video Switcher w/ HVS-492OU 18-Button Control Panel Bundle
Product Highlights:
- Supports four lines (eight channels) of balanced or unbalanced audio input and output.
- For noiseless transitions, audio is muted when video is switched.
- perform complicated operations with one push of a button.
- Up to 100 registers of control panel configurations can be stored as events.
- FOR.A HVS-1200 12G/3G/HD Video Switcher
- HVS-1200MU 12G-SDI IM/E Switcher
- HVS-1200PSM power supply
- HVS-492OU 18-button Control Panel
- HVS-49PSO power supply
- CD-ROM (Operation Manual)
- Quick Setup Guide
- MU/OU connecting cable
- 2 AC cords
- Rack mount bracket
- 3 Year FOR-A Warranty
FOR.A HVS-1200-TYPE A Hanabi 4K/12G/3G/HD Video Switcher w/ HVS-492OU 18-Button Control Panel Bundle
FOR-A HVS-1200-TYPE A Hanabi 4K/12G/3G/HD Video Switcher w/ HVS-492OU 18-Button Control Panel Bundle
This new switcher builds on the features of the HANABI HVS-100/110 and HVS-490 video switchers and adds 12G-SDI support as standard. One or two M/E switching (in 4K(UHD) and HD mode, respectively) is just the start. Enjoy two or six M/E performance in these modes thanks to FOR-A’s MELite™ technology. The compact, 3U form factor is exceedingly portable, making the HVS-1200 the perfect choice for mobile production or events.
HVS-1200MU Specs
- Video Formats:
3G/HD-SDI: 1080/59.94p, 1080/59.94i, 1080/50p, 1080/50i, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 1080/23.98sF, 1080/25sF, 1080/29.97sF, 720/59.94p, 720/50p
4K/12G: 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
- Video Inputs: 40 (3G/HD-SDI), 10 (4K)
3G/HD-SDI: 3Gbps, 75Ω, BNC x 40 (Frame synchronizations on all inputs) 12G-SDI: 12Gbps, 75Ω, BNC x 10
3G-SDI: 3Gbps, 75Ω, BNC x 40 (Frame synchronizations on all inputs)
- Video Outputs: 10 (SDI x 8 + HDMI 2.0 LEVEL B x 2)
3G/HD-SDI: 3/1.5Gbps, 75Ω, BNC x 8
12G/3G-SDI: 12/3Gbps, 75Ω, BNC x 8
AUX: 6
- Processing: 4:2:2:4, digital component
- Quantization: 12G/3G/HD-SDI: 10-bit
- Multi-Viewer: Output Channels: 2 (HD resolution); Split Display: 2 - 16; Display: Title, tally, audio level meter
- Video I/O Delay: Minimum delay: approx. 1.4 H, approx. 1.7 H @ 720/59.94p, approx. 1.8 H @ 720/50p
- External Memory: SD-CARD slot
- Interface: 2x RS-422, GPI IN, GPI/TALLY OUT, 2x Ethernet (RJ45)
- Temp./Humidity: 32°F - 104°F, 10% - 90% (no condensation)
- Power: AC 100V - 240V ±10%, 50/60Hz
- Consumption: 540W (640W, full option)
- Dimensions (HxWxD): 5.2" x 16.9" x 19.3"
- Weight: 39.7lbs (48.5lbs, full option)
HVS-492OU Specs
- Video Formats:
HD-SDI: 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/29.97p, 1080/25PsF, 1080/25p, 1080/24PsF, 1080/24p, 1080/23.98PsF, 1080/23.98p, 720/59.94p, 720/50p
3G-SDI: 1080/59.94p, 1080/50p (Level-A)
- Video Inputs:
HD-SDI: 1.5 Gbps, BNC x 16, 75Ω (frame synchronizer x 16, re-sizing engine x 4) 3G-SDI: 3 Gbps
- Video Outputs:
HD-SDI: 1.5 Gbps, BNC x 8, 75Ω (PGM x 2, AUX x 6)
3G-SDI: 3 Gbps
HDMI (AUX) x 1 (HDCP-incompatible. AUDIO support)
- Control Panels: 2M/E 18 buttons
- No. Of Video Inputs: Standard: 16 (SDI only); Max.: 40 (varies depending on optional configuration)
- No. Of Video Outputs: Standard: 9 (SDI x 8 + HDMI x 1)/Max.: 22 (varies depending on optional configuration); AUX: Standard: 6, Max.: 12
- Processing: 4:2:2, digital component
- Quantization: 3G/HD/SD-SDI: 10-bit
- Multi-Viewer: Output Channels: 3; Split display: 2/4/5/7/9/10/11/14/15/16 (Max. 49 via HDMI 2.0 Level B); Display: Title, tally, audio level meter
- Video I/O Delay: Minimum delay: approx. 1.4H, approx. 1.7 H @ 720/59.94p, approx. 1.8H @ 720/50p
- External Memory: SD-CARD slot
- Interfaces: 2x RS-422, GPI IN, GPI/TALLY OUT, 2x Ethernet (RJ45)
- Temp./Humidity: 32°F - 104°F, 10% - 90% (no condensation)
- Power: AC 100V - 240V ±10%, 50/60Hz
- Consumption: 27W
- Dimensions (HxWxD) 20.1" x 25.4" x 5.2"
- Weight: 24.3lbs (incl. redundant power supply)
