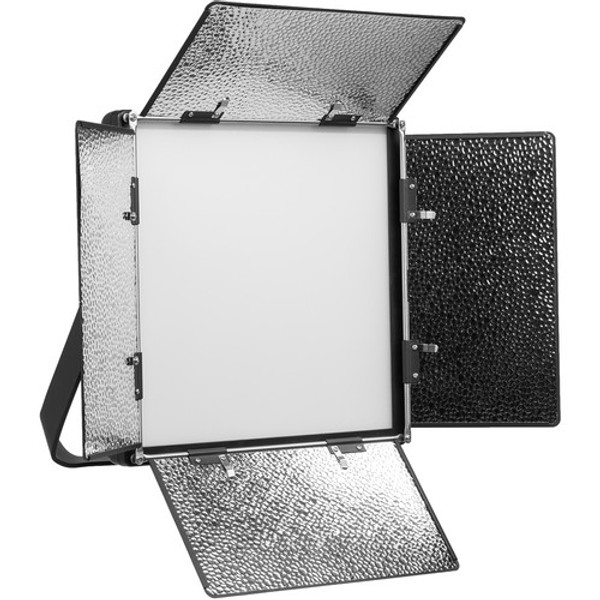

IKAN LWX10 Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX

IKAN LWX10 Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX

Product Highlights:

• Daylight-Balanced: 5600K
• Integrated Soft Panel
• 14 x 14 x 3.0"
• 110° Beam Angle
• Single Clean Shadow
• 850W Tungsten Equivalent
• DMX Control of Brightness, On/Off
• Barndoors with Removable Intensifiers
• 30° Angled Yoke
• Baby/Junior Combo Pin Stand Adapter

• ikan Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX
• Barndoors with Intensifiers
• Multi-Voltage Power Supply with Cable
• Yoke with Stand Receiver/Pin
• Limited 1-Year Manufacturer Warranty

IKAN LWX10 Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX

IKAN LWX10 Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX

The Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX from ikan employs a heavy-duty molded resin chassis to provide a lightweight yet rugged fixture with features such as flicker-free dimming that can be controlled locally or via DMX and an LED display. It features an integrated 1/2 stop diffuser for extra softness, while its 450 LEDs produce a 110° beam spread with a high CRI and TLCI for precise color rendering. The fixture produces a soft single-source shadow pattern owing to the integrated diffuser.

The fixture's four-leaf barndoors direct the light, help contain spill light and feature light intensifiers to maximize output. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo baby receiver/junior pin on the yoke, so you can mount it on a stand or hang it from a grid with optional clamps.

Consistent Color and Brightness

The high CRI LED chips and 1/2-stop soft diffusion panel can output a strong, bright diffused light. The soft light's 5600K color temperature works well with any lighting production.

Single Knob Control

Whether it's brightness or DMX, you can adjust these settings with a single knob at any time. The enhanced LED readout is brighter and provides a quick reference of the light output with precise measurements.

Improved Yoke Design and Better Components

The 30-degree angled yoke provides unobstructed movement of the barndoors. The strong steel tension knobs securely lock the light in place at any angle.

Industry Standard Combo Pin

The baby 5/8" and junior 1-1/8" combo pin includes a right-angle receiver hole that allows you to attach it to any grip stand.

Incandescent Watts Equivalency

The Lyra Soft Light is equivalent to an 850W incandescent light and gives a clean, single shadow.

Barndoors Included

ikan's reliable barndoors with intensifiers allow you to shape the light to fit your needs.

ikan LWX10 Specs
Light Fixture
Item Type	1x LED Light Panel
Included Light Modifier	1x Barndoors (Built-In)
Included Filters	Soft Diffusion (Built-In)
Included Storage Case	No
Photometrics	5600K: 223 fc / 2403 Lux at 3.3' / 1 m* 99 fc / 1068 Lux at 4.9' / 1.5 m 27 fc / 292 Lux at 9.8' / 3 m 13 fc / 141 Lux at 14.8' / 4.5 m *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	5600K
Color Modes	Daylight
Color Accuracy Standard	CRI 97 TLCI 98
Dimming	Built-In Dimmer
Cooling System	Passive
Beam Angle	110°
Built-In Flash	No
Preprogrammed Effects	No
Umbrella Mount	No
Front Accessory Mount	Proprietary
Power & I/O
Power Source	AC to DC Adapter (Included)
Inputs/Outputs	1x XLR 4-Pin Power Input 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output
Input Power	18 VDC 110 to 220 VAC, 50 / 60 Hz
Included Adapter / Cable	1x USA Type-A/B to XLR 4-Pin AC to DC Adapter
Inline Switch	No
Power Pass-Thru	No
Power Consumption	90 W (Maximum)
Mounting
Yoke Type	Manually-Operated Yoke
Fixture Mounting	Support Mount 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display	Yes
Environmental Resistance	No
Dimensions	14 x 14 x 3" / 35.5 x 35.5 x 7.6 cm
Weight	6 lb / 2.7 kg
Packaging Info
Package Weight	11.65 lb
Box Dimensions (LxWxH)	21.1 x 18.1 x 5.5"
