Kramer 12–button Ethernet and KNET™ Control Keypad with Knob and Displays (US)
Product Highlights:
- 12 RGB–color, backlit buttons
- Custom labeled, removable button caps
- Digital knob for volume control
- 3 8–characters program–configurable LCD displays
- 1 Ethernet port
- 2 KNET™ ports
- 3 Bidirectional RS–232port
- 2 IR emitter port
- 4 Relay ports
- 1 IR sensor for learning
- Site–CTRL™ software compatible
- Mounts in standard 3 gang US wall junction boxes
- Supported by all Kramer control platforms
- Managed by Kramer Network
- Kramer 12-Button Master Room Controller with Digital Volume Knob (Black)
- Power Supply
- Mud Ring
Kramer 12–button Ethernet and KNET™ Control Keypad with Knob and Displays (US)

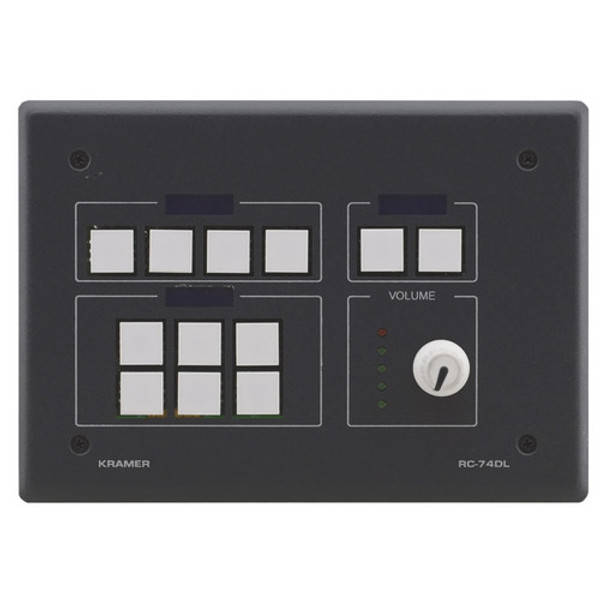

Kramer RC-74DL 12–button Ethernet and KNET™ Control Keypad with Knob and Displays (US)
The black Kramer RC-74DL is a 12-button master room controller with a digital volume knob for multimedia rooms. It can function either as a standalone controller or as part of a more complex room control system to control audio components, video components, and other room facilities such as lights and screens.
Key Features
12 programmable buttons (3 groups; color, back−lit, label capable)
Configurable digital volume control knob
Programmable back-lit LCD group labels
Macro capability -- carries out multiple commands with a single press of a button
Command banks -- each button offers multiple layers of functions for alternate behavior, toggle functionality, and more
One USB port for programming
Three bidirectional RS-232 ports -- control AV equipment such as projectors, LCD and PDP displays, power amplifiers, switchers, and scalers
Two IR outputs -- additional control port for AV equipment
IR learning function -- learns commands from IR remotes
Four contact closure ports -- conveniently control other room items related to the AV system, such as raising and lowering drapes, the screen, or the projector
Two GPI/O ports -- general purpose I/O ports that can be configured by K−Config as digital inputs, digital outputs, or analog inputs for interfacing with a variety of devices such as sensors, switches, LEDs, or relays
Two K-NET connectors -- connect to other control panels or a central control processor
K-NET control channel -- provides power and control data to the wall plate controllers over a single cable
Kramer Site-CTRL compatible -- for network remote control and management using Kramer Site−CTRL software over the Ethernet port
Configured with Kramer K-Config software
Mud ring supplied for easy installation
Size: 3-gang wall plate (U.S.)
| Kramer RC-74DL Specs |
|---|
| Ports |
3 x RS−232
1 x RS−485
2 x GPI/O
2 x K−NET on-terminal block connectors
1 x RJ−45 Ethernet connector
1 x Infrared sensor
1 x USB port for programming
|
| Outputs |
2 x IR
4 x relays (36 VAC or DC, 2 A, 60 VAC maximum on non−inductive load)
|
| Default IP Settings |
IP Number: 192.168.1.39
Mask: 255.255.0.0
Gateway: 0.0.0.0
|
| Power Consumption |
12 VDC, 570 mA
|
| Dimensions |
6.4 x 1 x 4.5" (16.3 x 2.5 x 11.4 cm)
|
| Weight |
Approx. 1.4 lb (0.6 kg)
|
| Packaging Info |
|---|
| Box Dimensions (LxWxH) |
35.1 x 21.2 x 7.2"
|
