Libec LX-ePed 2 Studio Electric Pedestal Column with Standard Dolly
Product Highlights:
2-Stage Electric Pedestal System

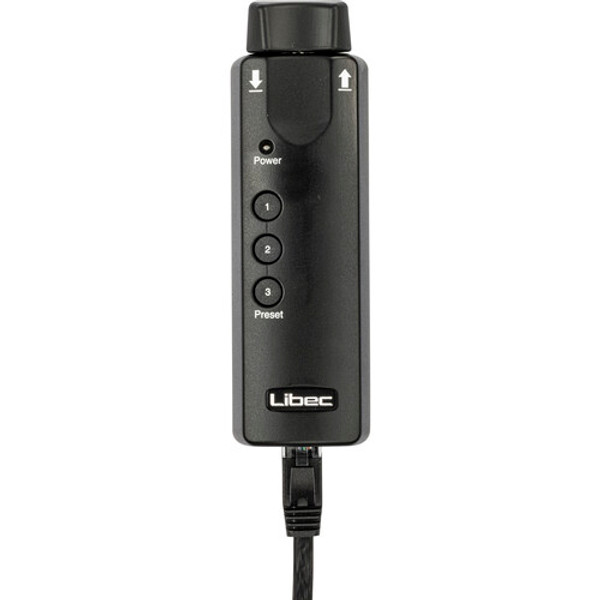

Controller with Elevation Rocker
22 lb Load Capacity
38.8 to 98.4" Working Height Range
15.7" Middle Column Extension
Standard Dolly with 3.9" Wheels
100mm Bowl Head
1/4"-20 and 3/8"-16 Camera Screws
LAN Control Cable, AC/DC Power Supply
Libec LX-ePed 2 Studio Electric Pedestal Column with Standard Dolly
Libec Flat Base Adapter for 75/100mm Bowl Tripods
Libec DL-3RB Standard Dolly for RT30B/RT40RB/RT50B/RT50C Tripods
Controller with Elevation Rocker
AC/DC Adapter Cable (9.8')
International Plug Adapter Set
LAN Cable (98.4')
1/4"-20 Camera Screw
Limited 3-Year Manufacturer Warranty
Libec LX-ePed 2 Studio Electric Pedestal Column with Standard Dolly
Libec LX-EPED 2 STUDIO Electric Pedestal Column with Standard Dolly
Designed for modern studio and live production workflows, the Libec LX-ePed 2 Studio Electric Pedestal delivers smooth, controlled vertical movement at the touch of a button—ideal for consistent framing without interrupting the shot.
VIDEO
Raise and lower your mounted camera of choice with this LX-ePed 2 Studio Electric Pedestal Column with Standard Dolly from Libec thanks to its handheld controller and working height range of 37.5" to 97.2" . Mount a camcorder, PTZ, or other recording device using the 1/4"-20 and 3/8"-16 screws on its 100mm ball head and 22 lb load capacity.
LAN ports on both the pedestal column and controller unit allow the devices to communicate using the included LAN cable. The cable features a length of 98.4' , allowing you to operate at a distance. The elevation rocker on the controller allows for intuitive raising and lowering of the center column up to 15.7" . Continuous operation can be performed for three minutes at a time. An optional MPC-1 multi-protocol converter makes the system compatible with PTZ controllers and PC applications for precise adjustment. The included standard dolly provides smooth movement around your studio space, and an AC/DC power adapter provides power.
Electrically controlled elevation for live studio production
PTZ / camcorder ready with 100mm ball head mounting
Long-distance control via included 98.4' LAN cable
Optional integration with PTZ controllers and PC apps (via MPC-1)
Studio mobility with included standard dolly
Libec LX-ePed 2 Studio Specs
General
Load Capacity
22 lb / 10 kg
Adjustable Height Range
43.1 to 103.9" / 1095 to 2640 mm (Manual) 15.7" / 400 mm (Electronic Pedestal)
Folded Length
9.4 x 40.7" / 241 x 1035 mm
Speed
14 to 40 seconds
Inputs/Outputs
Video I/O
1x RJ45 Input/Output ( LAN )
Power
Power Source
AC Adapter with Power Brick
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
12 VDC at 2 A
Power Consumption
24 W
Physical
Mounting
1x 1/4"-20 Screw 1x 3/8"-16 Screw 2x 1/4"-20 Thread 2x 3/8"-16 Thread 1x 100mm Bowl
Color
Black
Operating Conditions
14 to 104°F / -10 to 40°C at 10 to 90% Humidity
Cable Length
98.4' / 30 m (LAN) 9.8' / 3 m (AC/DC Adapter)
Weight
32.8 lb / 14.9 kg
