Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
­

The cookie settings on this website are set to 'allow all cookies' to give you the very best experience. Please click Accept Cookies to continue to use the site.

Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)

(No reviews yet) Write a Review
  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
SKU:
LIB-NH10-90
Manufacturer Part:
NH10
Condition:
New
Weight:
5.30 LBS
Shipping:
Calculated at Checkout
Product Highlights:
  • 8.8 lb Maximum Payload
  • 75mm Half Ball/Flat Base Mount
  • Continuous + 5-Step Counterbalance
  • Continuous + 3-Step Pan/Tilt Drag
  • +90/-70° Tilt Angle
  • Snap-On, Sliding Quick Release Plate
  • LED-Illuminated Bubble Level
  • 1/4"-20 & 3/8"-16 Camera Mounting Screws
  • 1/4"-20 & 3/8"-16 Accessory Threads
  • Includes Pan Handle
Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
$599.00
Availability:
Special Order, subject to availability


Due to Worldwide shortages, the shipping estimates can change at any time. If you have an immediate need. please call/email to confirm availability.

Payments as low as $13.77*
Quantity:

Description

Libec NH Series Video Head Overview

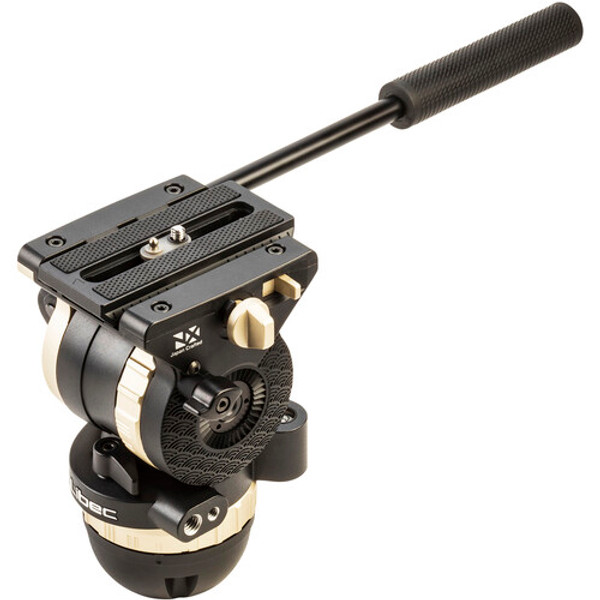

Designed to support small camera rigs weighing up to 8.8 lb, the NH10 75mm Ball/Flat Base Video Head with Pan Handle from Libec features a unified ball/flat mount design. The base of the tripod can fit either in a standard 75mm bowl or on a flat mount with a 3/8"-16 screw. Having both options available means you can transfer the head from a tripod with a bowl mount to a flat mount slider.

To achieve proper balance, the NH10 head includes a snap-on/off camera plate that can slide up to 1.2" of fore/aft adjustment, and it features 1/4"-20 and 3/8"-16 camera mounting screw options. The screw and locating pin are moveable to orient the plate on the camera to achieve the best possible balance. Once the camera is balanced, the continuous counterbalance and pan/tilt drag controls provide smooth movement. On the side, there are 1/4"-20 and 3/8"-16 threads to mount a variety of accessories such as a light, monitor, or extension arm.

Included with the NH10 is a pan handle that can be placed on the right or left side of the head by screwing it onto one of the mounts. The LED-illuminated bubble level helps to level the camera on uneven surfaces, even in low light.

Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)

Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)

View AllClose

Technical Specs

Libec NH Series Video Head Specs
Camera Plate
Camera Plate Features Sideload, Sliding Balance Plate
Camera Mounting Screw 1 x 1/4"-20 Male with Locating Pin
1 x 3/8"-16 Male with Locating Pin
Balance Plate Sliding Range 1.2" / 30.5 mm
Safety Lock Yes
Tripod Platform
Base Mount 3/8"-16 Female
75 mm Half Ball
Flat Base
Pan & Tilt
Drag Control Tilt: Continuous 3-Step
Pan: Continuous 3-Step
Drag Type Friction
Vertical Tilt +90° to -70°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Physical
Load Capacity 8.8 lb / 4 kg
Counter Balance Continuous 5-Step (0 to 5.5 lb / 0 to 2.5 kg)
Pan Handle Fittings 2
Bubble Level 1 x Illuminated
Accessory Mounting 1 x 1/4"-20 Female Thread
1 x 3/8"-16 Female Thread
Base Diameter 2.95" / 75 mm
Operating Temperature -40 to 140°F / -40 to 60°C
Weight 4 lb / 1.8 kg
Packaging Info
Package Weight 5.295 lb
Box Dimensions (LxWxH) 15.8 x 8.4 x 6"
View AllClose

What's Included

  • Libec NH10 75mm Ball/Flat Base Video Head with Pan Handle (8.8 lb Payload)
  • Pan Handle
  • Quick Release Plate
  • 1/4"-20 Screw
  • 3/8"-16 Screw
  • Limited 3-Year Warranty
View AllClose
