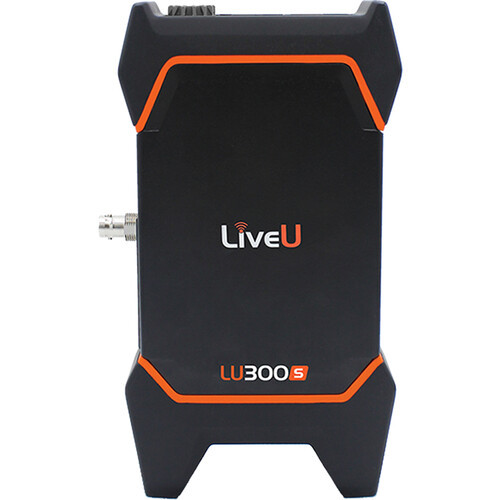

LiveU LU300S-5G-2-4G-2 LU300S Encoder Field Unit with 4 x 4G/5G Modems
Portable Remote Camera Contribution for LiveU Systems
Add a remote camera position to your LiveU workflow with the LU300S Encoder Field Unit, equipped with four 4G/5G modems. This compact encoder delivers H.265/H.264 transmission over cellular networks, Wi-Fi, and wired Ethernet, supporting up to 1080p60 video, two audio channels, and bandwidth up to 6 Mb/s. The LU300S includes two internal and two external modems for flexible 4G/5G connectivity.
Flexible Connectivity & Camera Input Options
The unit accepts both HDMI and 3G-SDI inputs and connects directly to a LiveU server via wired or wireless networks. It ships with a carry pouch, power adapter, USB cables, and a BNC cable. Optional add-ons—such as battery plates and tally light accessories—are available separately.
Up to Six Bonded Connections
The LU300S supports bonding over Wi-Fi, Ethernet, and four cellular modems, including two internal 4G/5G units for robust field transmission.
Full HD Streaming Performance
Standard software enables up to 1080p60 transmission at 6 Mb/s, ensuring smooth, reliable video delivery for live broadcasts.
Compact & Field-Ready Design
Weighing just over 2 lb, the LU300S is designed for mobility and can be camera-mounted, worn cross-shoulder, or used as a belt-pack depending on production needs.
Audio Channel Support
The encoder supports up to two audio channels for clean, dependable sound capture during live transmission.
Remote Production Accessories
Optional enhancements—including a tally light, LiveU Audio Connect, and IP Pipe—can be added to expand remote production capabilities.
Onboard SD Card Recording
The LU300S can record a stream directly to an optional microSD card (minimum 4GB, Class 10; up to 512GB) for backup or archival use.

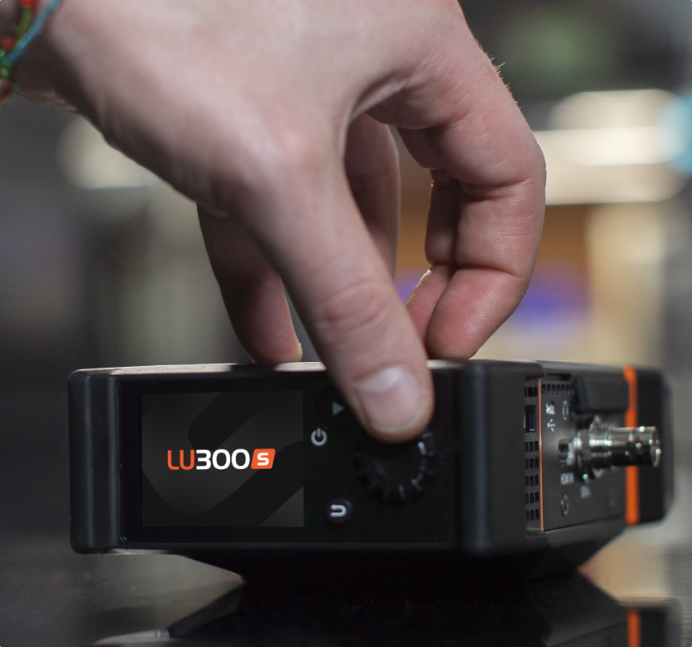

Clear LCD Status Display
A 2.2" LCD screen provides clear monitoring, system status visibility, and intuitive control during field operation.
Upgradeable Software Options
Optional upgrade licenses—such as 4K transmission, increased bandwidth, and expanded audio channel support—are available separately. Cellular data plans are required and sold separately.
