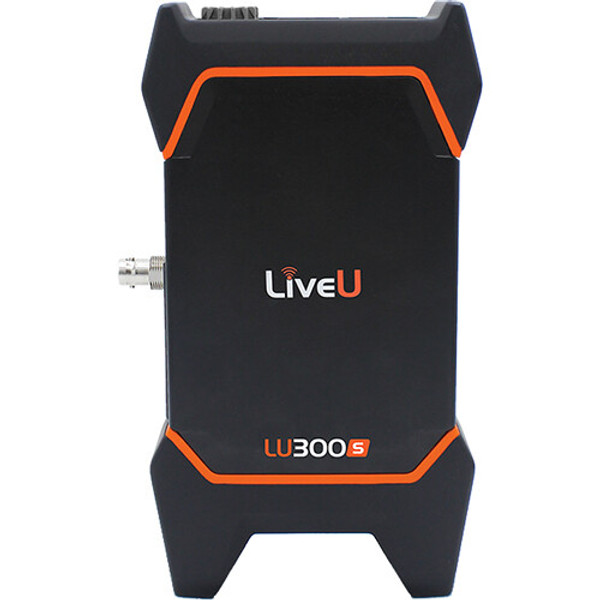

LiveU LU300SE Encoder Unit (Encoder Only)
Product Highlights:
- Compact Broadcast Streaming Field Unit
- Wireless and Wired IP/LAN Streaming
- Transmit up to 4K 10-Bit HDR, 30 Mb/s
- 3G-SDI and HDMI Camera Inputs
- H.265/H.264 Streaming Support
- LiveU LU300SE Encoder Unit (Encoder Only)
- Carry Pouch
- AC/DC Power Adapter
- Power Cable (4.9')
- BNC Cable
- Limited 1-Year Manufacturer Warranty
LiveU LU300SE Encoder Unit (Encoder Only)
LiveU LU300S-ENC LU300SE Encoder Unit (Encoder Only)
Lightweight Remote Contribution for LiveU Workflows
Expand your LiveU setup by adding a remote camera position with the LU300SE Encoder Unit. As LiveU’s most streamlined field encoder, the LU300SE provides H.265/H.264 transmission over wired or wireless Ethernet. It supports up to 4K 10-bit HDR output with bandwidths up to 30 Mb/s. Unlike the LU300S, this model does not include internal cellular modems, resulting in an even lighter and more compact design.
Flexible Connectivity & Camera Input Support
The LU300SE offers both HDMI and 3G-SDI inputs and connects directly to a LiveU server via Wi-Fi or Ethernet. It ships with a carry pouch, power adapter, and BNC cable, and optional add-ons such as battery plates and tally systems are available separately.
LU300S vs. LU300SE
The primary difference between the LU300S and LU300SE is the absence of internal cellular modems in the SE model, making it noticeably lighter. Aside from that, both units share the same interface, workflow, and user experience.
4K HDR Streaming Capability
Achieve up to 4Kp60 10-bit HDR transmission, providing excellent color depth and high-quality live production output.
Compact & Travel-Ready Design
Designed for mobility, the LU300SE can be mounted on the camera, worn cross-shoulder, or used as a belt-pack for flexible field operation.
Expanded Audio Support
Capture professional-grade sound with support for up to eight audio channels.
Optional Remote Production Tools
Enhance your setup with available extras such as a tally light, LiveU Audio Connect, and IP Pipe integration.
Onboard SD Card Recording
The LU300SE can record locally to an optional microSD card (Class 10, minimum 4GB, up to 512GB) for backup or archive use.
LCD Status Display
A bright 2.2" LCD screen provides clear monitoring and menu control during field use.
Upgradeable Software Options
Optional software licenses are available to expand functionality, including bandwidth upgrades and additional production features.
| LiveU LU300S-ENC Specs |
|---|
| Inputs/Outputs |
|---|
| Antenna I/O |
1x RP-SMA
|
| Video I/O |
1x BNC (3G-SDI) Input
1x HDMI 2.0 Input
1x RJ45 LAN Input/Output
|
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1x Barrel 2.1 mm (16 VDC / 4 A) Input
|
| Other I/O |
1x Micro-USB (Firmware) Input
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [512 GB Maximum / Supports Recording]
|
| Wireless |
|---|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Cellular Support |
5G NR / 4G LTE via Unspecified SIM Type
|
| IP Encoding |
|---|
| IP Video |
H.264/H.265: 3840 x 2160
|
| Transport Protocols |
TCP/IP
|
| Power |
|---|
| Input Power |
12 to 19 VDC
|
| Battery |
Built-In Battery
|
| Mounting |
|---|
| Tripod/Accessory Mounting |
Not Specified by Manufacturer
|
| General |
|---|
| Status Display |
Yes
|
| Environmental Resistance |
No
|
| Operating Conditions |
23 to 113°F / -5 to 45°C
|
| Dimensions |
8 x 4.4 x 2.1" / 20.3 x 11.2 x 5.3 cm
|
| Weight |
2.0 lb / 900.00 g
|
