LiveU LU600 PEG Bundle
Product Highlights:
- For Public, Educational & Government Use
- LU600 HEVC Encoder Field Unit
- LU2000 HD Decoder Server
- 10 x LU-Smart Licenses
- LiveU University Access
- LiveU LU600 with HEVC-HD Video Card
- HEVC Video Card
- Smart Backpack
- Limited 1-Year Manufacturer Warranty
- LiveU LU2000 Single HD Output Decoder Server
- Power Adapter
- Limited 1-Year Manufacturer Warranty
- 10 x LU-Smart License
- LiveU University Access
LiveU LU600 PEG Bundle
LiveU LU600-PEG-BUNDLE LU600 PEG Bundle
The LiveU LU600 PEG Bundle is a complete solution for live video streaming from the field to the studio. It is designed for public, educational, and government use and provides high-quality and reliable video transmission over the internet. The bundle includes:

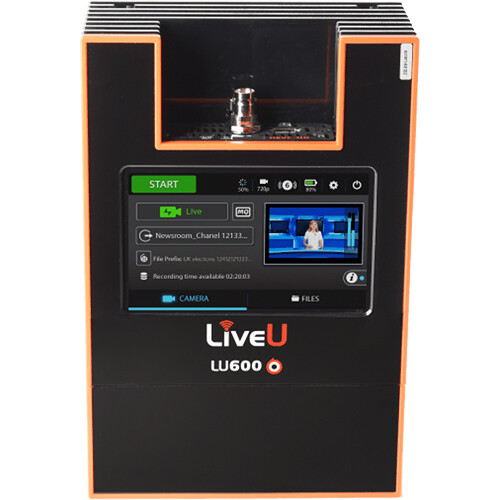

The LU600 HEVC encoder field unit, which is a portable device that connects to your camera and encodes your video into HEVC or H.264 formats. It can output up to 4K 30p video and supports various streaming protocols such as NDI|HX, SRT, RTMP, and more. It can bond up to 12 IP connections (cellular, WiFi, and LAN) for optimal bandwidth and resilience. It also has a built-in touchscreen interface, a microSD card slot, and a battery plate for power options.
The LU2000 decoder server, which is a rack-mounted device that receives the video stream from the LU600 and decodes it into SDI or HDMI output. It can handle up to 4K 60p video and supports various streaming protocols such as NDI|HX, SRT, RTMP, and more. It also has a web-based interface for remote control and monitoring.
- 10 x LU-Smart licenses, which are software applications that allow you to use your smartphone or tablet as a live video source. You can stream your video over cellular or WiFi networks to the LU2000 server or any other LiveU device. You can also control the LU600 from your mobile device using the LiveU Central app.
- LiveU University access, which is an online platform that provides training and support for LiveU products and services. You can learn how to set up and use the LU600 PEG Bundle, as well as get tips and best practices for live video production.
- The LiveU LU600 PEG Bundle is an ideal choice for anyone who needs to broadcast live video from anywhere, anytime. Whether you are covering news, events, sports, education, or government affairs, you can rely on the LiveU LU600 PEG Bundle to deliver high-quality and secure video streams to your audience.
| LiveU LU600 With HEVC-HD Video Card Specs |
|---|
| Inputs / Outputs |
|---|
| Video I/O |
1 x BNC (3G-SDI) Input
1 x HDMI 1.4 Input
1 x Micro-HDMI Monitor Output
1 x RJ45 Input/Output
|
| Embedded Audio |
HDMI
|
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
None
|
| Other I/O |
1 x Mini-USB (Firmware) Input
|
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC
|
| Wireless |
|---|
| Wi-Fi |
Yes
|
| Bluetooth |
None
|
| Mobile App Compatible |
No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
|
| Cellular Support |
4G LTE
|
| IP Encoding |
|---|
| IP Video |
H.264/H.265: 1920 x 1080
|
| IP Audio |
AAC-LC:
|
| Transport Protocols |
TCP/IP
|
| Power |
|---|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC
|
| Mounting |
|---|
| Mounting |
Not Specified by Manufacturer
|
| Environmental |
|---|
| Environmental Protection |
None
|
| Operating Temperature |
23 to 113°F / -5 to 45°C
|
| General |
|---|
| Dimensions |
8.9 x 5.9 x 2.8" / 225 x 150 x 70 mm, Including Battery Plate
|
| Weight |
3.70 lb / 1.68 kg, Including Battery
|
| LiveU LU2000 Single HD Output Decoder Server Specs |
|---|
| Inputs / Outputs |
|---|
| Video I/O |
1 x BNC (3G-SDI) Output
|
| Embedded Audio |
LAN (RJ45)/SDI/Wireless
|
| Audio I/O |
None
|
| Power I/O |
1 x Proprietary (12 VDC) Input
|
| Other I/O |
2 x RJ45 (Gigabit Ethernet) Input/Output
|
| Wireless |
|---|
| Wi-Fi |
None
|
| Bluetooth |
Yes
|
| Mobile App Compatible |
No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
|
| IP Decoding |
|---|
| IP Video |
H.264: 1280 x 720 to 1920 x 1080 at 24p, 25p, 30p, 50p, 60p
|
| Transport Protocols |
TCP/IP
|
| Power |
|---|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 to 19 VDC
|
| Environmental |
|---|
| Environmental Protection |
None
|
| Operating Temperature |
23 to 113°F / -5 to 45°C
|
