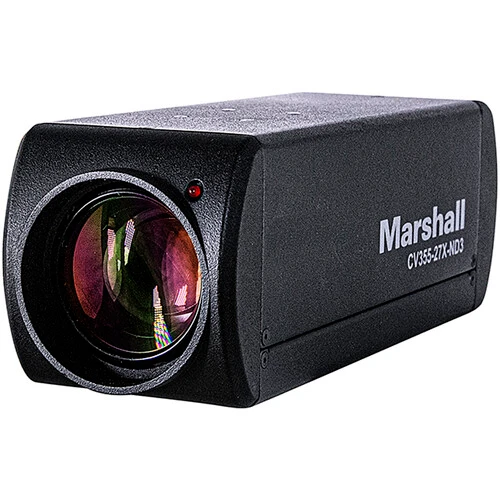

Marshall Electronics CV355-27X-ND3 HDMI/3G-SDI NDI HX3 Box Camera with 27x Optical Zoom
Product Highlights:
- 27x Optical, 12x Digital Zoom
- HDMI, 3G-SDI, and NDI Streaming Output
- Supports up to 1920 x 1080p60
- NDI/IP, 3G-SDI, HDMI Simultaneous Output
- 60° Angle of View
- 3.5 Line-In Audio, RS-232 Control
- Marshall Electronics CV355-27X-ND3 HDMI/3G-SDI NDI HX3 Box Camera with 27x Optical Zoom
- Limited 2-Year Manufacturer Warranty
Marshall Electronics CV355-27X-ND3 HDMI/3G-SDI NDI HX3 Box Camera with 27x Optical Zoom
Marshall Electronics CV355-27X-ND3 HDMI/3G-SDI NDI HX3 Box Camera with 27x Optical Zoom
Powerful Zoom Performance
The Marshall CV355-27X-ND3 Box Camera is designed for a wide range of professional environments, including broadcast, government, courtrooms, education, houses of worship, corporate training, remote medical, and online communication applications. It features an 8.5MP 1/2.5" CMOS sensor capable of capturing high-quality video at up to 1080p60 resolution.
This compact box-style camera includes a 27x optical zoom lens with up to 12x digital zoom. With a focal length range of 5.56 to 150mm and a horizontal field of view from 60° to 3.2°, it delivers sharp, detailed images from wide-angle to long-distance telephoto shots.
NDI (HX2/HX3) Workflow
The camera supports NDI HX2 and NDI HX3 protocols, maintaining strong image quality, accurate frame timing, and reliable source synchronization. NDI integration also provides extensive control and flexibility within IP-based production workflows.
Low-Light Performance
Built for challenging lighting conditions, the camera offers excellent low-light sensitivity, ensuring clear and consistent image quality in environments such as live events, houses of worship, sports, and other dynamic settings.
Flexible Input and Output Options
The CV355-27X-ND3 features multiple output interfaces, including 3G-SDI, HDMI, and NDI/IP. It also includes a 3.5mm stereo audio input for integrating external audio sources directly into your video signal.
Simplified Connectivity and Control
The camera supports simultaneous output over NDI HX2/3 or IP, 3G-SDI, and HDMI with embedded stereo audio. It can also be configured to transmit video, audio, control, and power over a single Ethernet cable using PoE, simplifying installation. Camera control is available via RS-232 using a separately available controller.
| Marshall Electronics CV355 27X Specs |
|---|
| Imaging |
|---|
| Image Sensor |
1/2.5"-Type CMOS
|
| Effective Sensor Resolution |
8.5 Megapixel
|
| Recording |
|---|
| Internal Recording |
No
|
| Video Output |
HDMI
1920 x 1080p at 25/29.97/30.00/50/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720p at 25/29.97/30.00/50/59.94/60.00 fps
RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720p at 25/29.97/30.00/50/59.94/60.00 fps
SDI/BNC
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720p at 25/29.97/30.00/50/59.94/60.00 fps
|
| Exposure Control |
|---|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Compensation Mode |
No
|
| Minimum Illumination |
10 Lux
|
| White Balance |
Presets: Auto, Manual
|
| Focal Length |
5.56 to 150.29mm
|
| Aperture Range |
f/1.66 to 4.98
|
| Zoom |
27x Optical / 12x Digital
|
| Still Image Support |
No
|
| Interface |
|---|
| Digital I/O |
1x BNC (3G-SDI) Video Output
1x HDMI Video Output
1x RJ45 (NDI) Video Output
1x 1/8" / 3.5 mm TRS Stereo Audio Input
1x 1/8" / 3.5 mm TRS Stereo Audio Output
|
| Analog I/O |
1x DIN 8-Pin (RS-232) Control Input
1x DIN 8-Pin (RS-232) Control Output
|
| Embedded Audio |
HDMI/RJ45
|
| Power I/O |
1x DC (12VDC)
|
| Adapter / Cable |
No
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Supported Protocols |
Camera Control
RS-232
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Power |
|---|
| PoE Support |
No
|
| Voltage |
12.0 VDC
|
| Power Consumption |
15 W
|
| Environmental |
|---|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
