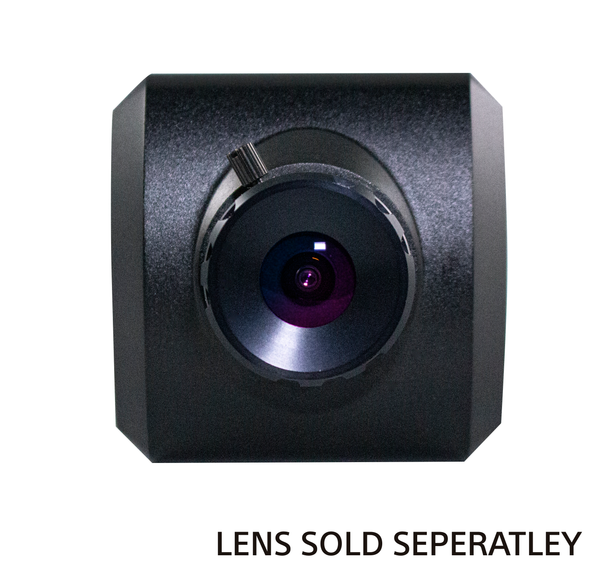

Marshall Electronics CV374 Compact UHD 4K60 Camera with NDI|HX3, SRT & HDMI
Product Highlights:
- Capture up to UHD 4K60 Resolution
- 1/2.8" 8.5MP CMOS Sensor
- C/CS Lens Mount
- NDI|HX3, SRT, HDMI Video Output
- VISCA-over-IP, NDI, RCP Control
- Power via PoE or Power Supply
- Marshall Electronics CV374
Compact UHD 4K60 Camera with NDI|HX3, SRT & HDMI
- 12 VDC Power Supply
- Limited 2-Year Manufacturer Warranty
NOT INCLUDED
Marshall Electronics CV374 Compact UHD 4K60 Camera with NDI|HX3, SRT & HDMI
Marshall Electronics CV374 Compact UHD 4K60 Camera with NDI|HX3, SRT & HDMI
UHD 4K Performance and Flexible Capture
The Marshall CV374 Compact UHD 4K60 Camera is built for professional environments such as conference rooms, live broadcasts, and event production. Featuring an 8.5MP 1/2.8" CMOS sensor, it delivers crystal-clear UHD 4K video at up to 60 fps. Its compact form factor and support for interchangeable C/CS mount lenses provide flexibility for a wide range of shooting scenarios.
Advanced IP and Streaming Workflows
The CV374 supports NDI|HX3 for high-quality, low-latency video transmission over IP networks, delivering approximately 100ms end-to-end latency while maintaining excellent image quality with efficient bandwidth usage. It also supports additional streaming protocols including SRT, RTSP, MPEG-TS, and HEVC, along with simultaneous HDMI output for versatile integration.
Interchangeable Lens System
Equipped with a CS/C lens mount and optional DC Auto Iris support, the CV374 allows users to select from a wide range of compatible lenses. This enables precise customization for different production needs, from wide-angle coverage to detailed close-ups.
Flexible Control and Connectivity
The camera can be controlled via RS-485 serial or through IP using NDI, VISCA-over-IP, or RCP protocols. It also supports PoE for single-cable operation, carrying power, control, and video over Ethernet. A power supply is included for environments where PoE is not available.
Durable Design and Low-Light Performance
Constructed from a solid aluminum block, the CV374 offers a rugged and compact design with protected rear I/O. It delivers excellent low-light sensitivity and allows for fine-tuned image adjustments remotely, ensuring consistent performance in challenging lighting conditions.
Versatile Applications
The CV374 is ideal for AV over IP and HDMI workflows where image quality and flexibility are critical. It is well-suited for live production, concerts, courtrooms, corporate video, government meetings, sports broadcasting, news, eSports, houses of worship, and other professional applications.
| Marshall Electronics CV374 Specs |
|---|
| Imaging |
|---|
| Image Sensor |
1/2.8"-Type CMOS
|
| Effective Sensor Resolution |
8.29 Megapixel
|
| Lens Mount |
C
CS
|
| Recording |
|---|
| Video Output |
HDMI / RJ45
3840 x 2160p at 59.94/60.00/25/50/29.97/30.00 fps
1920 x 1080p at 59.94/23.98/60.00/24.00/25/50/29.97/30.00 fps
1920 x 1080i at 59.94/60.00 fps
1280 x 720p at 59.94/60.00/25/50/29.97/30.00 fps
|
| Exposure Control |
|---|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1/30 Second
|
| Minimum Illumination |
0.01 Lux
|
| Interface |
|---|
| Digital I/O |
1x HDMI Video Output
1x RJ45 LAN Video Output
1x LEMO 12-Pin Control Input/Output
1x USB-C Firmware Input
|
| Embedded Audio |
HDMI/RJ45
|
| Power I/O |
1x Barrel Input
|
| Adapter / Cable |
No
|
| Wireless |
No
|
| Supported Protocols |
Video Streaming
NDI|HX3/RTSP/NDI|HX2/RTMP
Camera Control
VISCA
|
| Mobile App Compatible |
No
|
| Power |
|---|
| Voltage |
12.0 VDC
|
| General |
|---|
| Dimensions |
3.9 x 2.2 x 2.2" / 99.08 x 56 x 56 mm (Body Only)
|
| Weight |
0.8 lb / 362.9 g
|
| |
|---|
| Package Weight |
1.8 lb
|
| Box Dimensions (LxWxH) |
10 x 5.1 x 4.1"
|
