MultiDyne JUICE-60V External Power Supply with SMPTE-304M and two ST Connectors
Product Highlights:
- Excellent Value
- Compact Size
- Rugged Aluminum Enclosure
- Highest Quality Components
- 1x MultiDyne JUICE-60V External Power Supply with SMPTE-304M and two ST Connectors
MultiDyne JUICE-60V External Power Supply with SMPTE-304M and two ST Connectors
MultiDyne JUICE-60V-SPPST2F JUICE-60V External Power Supply with SMPTE-304M and two ST Connectors
MultiDyne's JUICE-60 is a robust 60V portable power supply that allows users to send signals from a camera up to 300 meters without the need for local power or batteries.
Pairing any of the MultiDyne SilverBack cameramounted transceiver products with a JUICE transmits any camera signal, including 12G-SDI video, audio, intercom, control data, GPIOs, tally, and power, making it the perfect solution for news, sports, ENG, D-SNG, OB, and multicamera studio applications.

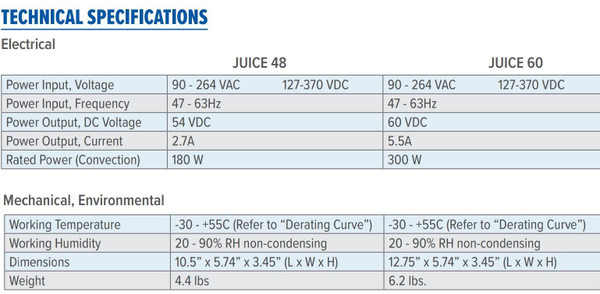

| Multidyne JUICE-60V-SPPST2F Specs |
|---|
| Power Input, Voltage |
90 - 264 VAC 127-370 VDC |
| Power Input, Frequency |
47 - 63Hz |
| Power Output, DC Voltage |
60 VDC |
| Power Output, Current |
5.5A |
| Rated Power (Convection) |
300W |
| Working Temperature |
-30 - +55C (Refer to "Derating Curve") |
| Working Humidity |
20 - 90% RH non-condensing 20 - 90% RH non-condensing |
| Dimensions |
12.75" x 5.74" x 3.45" (L x W x H) |
| Weight |
6.2 lbs |
