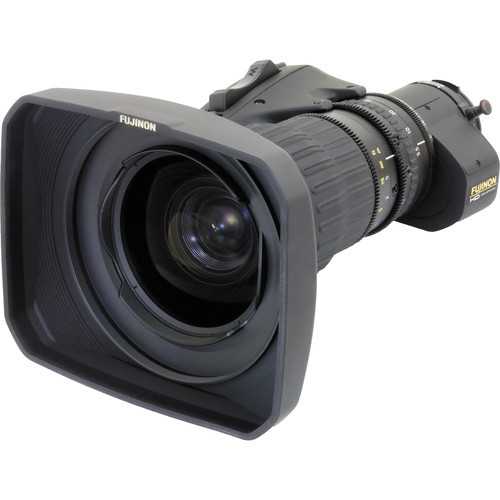

Fujinon 18x 4K Broadcast Wide Angle ENG Full-Servo Lens with 2X Extender, 20-pin Serial Connector for Virtual Sets
Product Highlights:
- 5.5- 100mm Lens for 2/3" Cameras
- 20-Bit Optical Encoders
- 18x Zoom Ratio with 2x Extender
- Fast f/1.8 Max Aperture from 5.5 to 62mm
- Digital Servo for Focus & Zoom
- Full Studio Remote Control via RS-232
- Innerfocus & QuickZoom
- Fujinon 18x 4K Broadcast Wide Angle ENG Full-Servo Lens with 2X Extender, 20-pin Serial Connector for Virtual Sets
- Limited 2-Year Manufacturer Warranty
Fujinon 18x 4K Broadcast Wide Angle ENG Full-Servo Lens with 2X Extender, 20-pin Serial Connector for Virtual Sets
Fujinon 18x 4K Broadcast Wide Angle ENG Full-Servo Lens with 2X Extender, 20-pin Serial Connector for Virtual Sets
With an 18x zoom range, the Fujinon 18x 4K Broadcast Wide Angle ENG Full-Servo Lens with 2X Extender, 20-pin Serial Connector for Virtual Sets has the zoom range to cover sports from both up close and at a distance. With a close focus distance of about 20", you can get high energy close shots under a basket, or zoom in across to isolate a player in motion. Suitable for more than just sports, this lens gives you the focal length variety to work in a studio or get an intimate interview. It features 20-bit optical encoders for accurate servo zoom and focus, and the 18x zoom range can be augmented by engaging the built-in 2x extender.
The lens holds its f/1.8 maximum aperture from 5.5 to 62mm, ramping to f/2.9 at 100mm, with an optical design that losses only 0.1 stop of light at the wide end, and 0.2 stops of light from 100mm and longer, maintaining a close relationship between F-stop and T-Stop. Digital servo control of both zoom and focus is extremely responsive, and the lens incorporates an inner focus design that doesn't rotate the front of the lens when focusing. The Quick Zoom feature improves servo zooming speeds to as fast as 0.7 seconds from end to end.
| Fujinon UA18X5.5 Specs |
|---|
| Sensor Compatibility |
2/3" (20:9)
|
| Focal Length |
5.5 to 100mm
With Extender: 11 to 200mm
|
| Built-In Extender |
2x
|
| Zoom Ratio |
18x
|
| Angle of View |
20:9
Wide: 82.17 x 52.22° (H x V)
Tele: 5.48 x 3.08° (H x V)
20:9 With 2x Extender
Wide: 47.1 x 27.53° (H x V)
Tele: 2.75 x 1.55° (H x V)
|
| Maximum Aperture |
f/1.8 to 2.9 (T9 to 3.1)
|
| Filter Thread |
M127 x 1 mm
|
| Minimum Focus Distance |
From : 2.26' / 0.69 m
|
| Minimum Object Distance |
15.7" / 0.4 m
|
| Dimensions |
3.7 x 9.5" / 95.0 x 240.5 mm (ø x L)
|
| Weight |
4.5 lb / 2 kg
|
| Packaging Info |
|---|
| Package Weight |
8.25 lb
|
| Box Dimensions (LxWxH) |
15.2 x 12 x 10.7"
|
