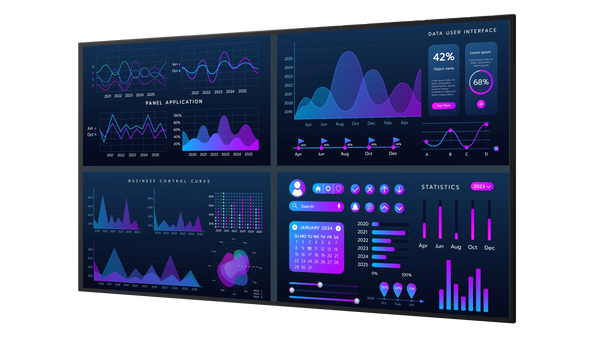

Panasonic 137" Full HD All-In-One Direct-View LED Display
Product Highlights:
- 1920 x 1080 Native Resolution
- Three HDMI Inputs, One HDMI Output
- Includes Power and Control Boxes
- 3.5mm Audio Input/Output, S/PDIF Output
- Remote Serial and IP Control
- Dual SDM Slots
- Includes Wall Mount

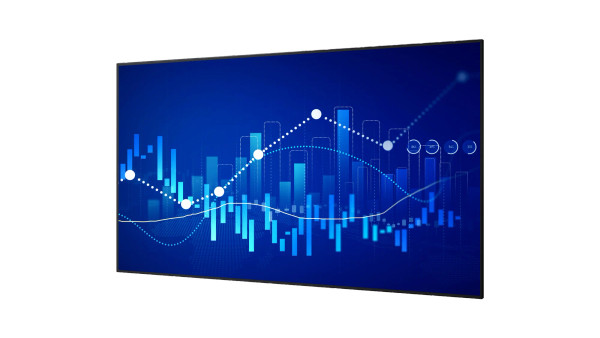

- Panasonic TL-137AD15AW 137" Full HD All-In-One Direct-View LED Display
Panasonic 137" Full HD All-In-One Direct-View LED Display
Panasonic TL-137AD15AW 137" Full HD All-In-One Direct-View LED Display
Providing flexible installation and expandability with high operability and long-term stable operation
| Panasonic TL-AD15AW Specs |
|---|
| Display |
|---|
| Size |
137"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Native Resolution |
1920 x 1080
|
| Maximum Brightness |
700 nits / cd/m2 (Sustained)
|
| Lighting System |
Direct LED
|
| HDR Support |
No
|
| Contrast Ratio |
4000:1
|
| Refresh Rate |
4100 Hz
|
| Viewing Angle (H x V) |
170 x 160°
|
| Surface |
|---|
| Touchscreen |
No
|
| Video |
|---|
| TV Tuner |
No
|
| Connectivity |
|---|
| A/V Inputs |
3x HDMI
1x 1/8" / 3.5 mm (Analog Audio)
|
| A/V Outputs |
1x HDMI
1x TOSLINK Optical (Digital Audio)
1x 1/8" / 3.5 mm (Analog Audio)
|
| HDCP Support |
Yes
|
| USB I/O |
1x USB-A 3.0 / 3.1/3.2 Gen 1
1x USB-A 2.0
1x USB-B 2.0
|
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| NFC |
No
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control
1x 1/8" / 3.5 mm IR
|
| OPS/Expansion Slots |
Yes: 2
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
| Speaker |
|---|
| Built-In Speakers |
No
|
| Hardware |
|---|
| Smart TV |
No
|
| Built-In Mic |
No
|
| Electrical |
|---|
| Power Consumption |
Maximum: 2527.0 W
Typical: 823.0 W
|
| Input Power |
200 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
External
|
| General |
|---|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 80% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C at 10 to 80% Humidity
|
| VESA Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
100000 Hours at 50% Brightness
|
| Environmental Resistance |
No
|
| Impact Resistance |
No
|
| Lock Slot |
No
|
| Bezel Thickness |
5 mm (Bottom/Right/Top/Left)
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
120.1 x 67.7 x 1.2" / 3050 x 1720 x 30.5 mm
27.4 x 17.4 x 2.4" / 696 x 441 x 62 mm (Control Unit)
15.7 x 13.3 x 1.7" / 400 x 338 x 42 mm (Power Unit)
|
| Weight |
308.6 lb / 140 kg
14.8 lb / 6.7 kg (Control Unit)
|
