Panasonic AW-UR100 UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom
Product Highlights:
- Newly developed 4K sensor and strong 24x optical zoom
- Superior vibration stabilization and wind pressure resistance
- Compact size with versatile installation & mounting options
- Supports SRT, NDI®, and NDI|HX2® for secure 4K streaming
- Fiber connectivity and built in FreeD protocol for AR/VR/XR productions
- Panasonic AW-UR100 UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom
- Limited 1-Year Manufacturer Warranty
Panasonic AW-UR100 UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom
Panasonic AWUR100GJ UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom
IP65 rated to withstand the rigors of extreme weather without compromising image quality- thanks to its newly developed 4K sensor and strong optical zoom.
24x Optical Zoom and Wide Horizontal Viewing Angle
The camera features a wide-angle lens with a horizontal view of 74.1° at its widest and 3.3° at its longest zoom, extending the AW-UR100's shooting capabilities with its 24x optical zoom.
Three Modes of Image Stabilization
The AW-UR100 ensures stable image capture under various conditions with Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS), and the Dynamic Image Stabilizing System (DISS). The camera can be mounted on high poles, resisting wind speeds up to 15 m/sec. DISS enhances pan/tilt function and minimizes shaking, providing smooth rotation. Combined, OIS and EIS offer a two-step vibration correction for stable imaging regardless of the setup environment.
Video Connectivity
The camera supports various video transmission interfaces, including 3G-SDI, 12G-SDI, and SFP+ fiber for baseband transmissions. It also supports major IP transmissions such as NDI, SRT, and RTMP for seamless integration with existing systems.
Built-In Cropping Functionality
The AW-UR100 allows cropping of UHD 4K video with three cropping positions and 10x digital zoom. These settings can be controlled via a remote camera controller or a PC using the PTZ control center software.
FreeD Compatibility
The AW-UR100 can connect to AR/VR systems through its FreeD-compliant command output. This feature allows the creation of a digital environment without an encoder by using the camera's tracking data with synchronization signals.m)
Optical Zoom Ratio
24x
Max Digital Zoom
10x
Field of View
Horizontal: 74.1 to 3.3°
Vertical: 46 to 1.9°
Diagonal: 81.8 to 3.8°
Maximum Aperture
f/1.8 to 4
Video Capture
External Recording Modes
SDI/BNC / Optical Fiber
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080p at 24.00/25/29.97/50/59.94 fps
1920 x 1080PsF at 23.98/25/29.97 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Audio Recording
2-Channel AAC Audio
Broadcast Output
NTSC/PAL
IP Streaming
NDI
3840 x 2160
1920 x 1080
1280 x 720
NDI|HX2
1920 x 1080
1280 x 720

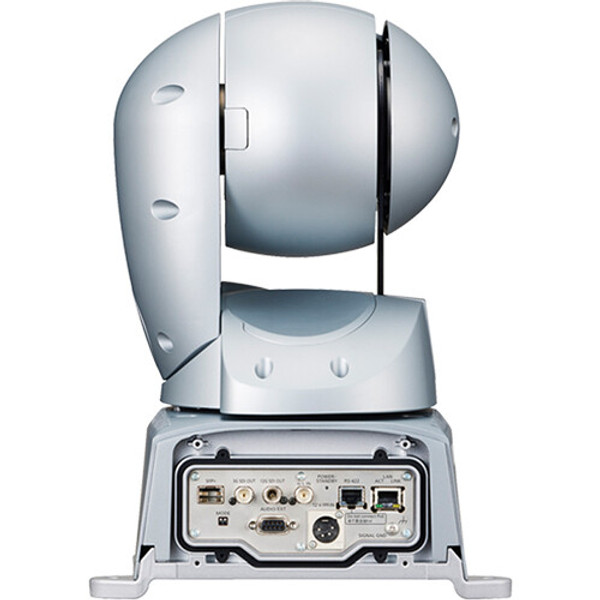

Interface
Video I/O
1x BNC (12G-SDI) Output
1x BNC (3G-SDI) Output
Audio I/O
1x D-Sub 9-Pin Mic/Line (+48 V Phantom Power) Input
Other I/O
1x BNC (Genlock) Input
1x RJ45 (RS-422)
1x RJ45 (LAN)
Expansion Slots
1x SFP+ Slot
Power
PoE Support
PoE++ 802.3bt
Power I/O
1x XLR 4-Pin (10.8 to 24VDC) Input
Power Consumption
PoE: 42 to 57 VDC
Environmental
Operating Temperature
5 to 113°F / -15 to 45°C
Operating Humidity
10 to 100%
Storage Humidity
10 to 95% (Non-Condensing)
General
Environmental Protection
Advertised as Outdoor Use/Water Resistant/Weather Resistant
*Test Methodology Not Supplied IP65
Packaging Info
Package Weight
26.5 lb
Box Dimensions (LxWxH)
24.5 x 15.5 x 15.25"
