PESA 4X1 EasyPort Extender
Product Highlights: - 4 fixed BNC input ports- SD/HD/3G-SDI
- 4 fixed BNC outputs- SD/HD/3G-SDI
- Built-in 4X4 Switch
- Up to 1080p60 video transport
- Includes setup software and power supply
- Network & USB control ports
- Small size : 6.75 W X .825 H X 6.25 D
Download User Manual
easyPort mini router
- Power Supply
- Appropriate SFP Modules
- USB Cable
- Network Cable
- Technical Manual
- CD Product Manual
- Cattrax control software

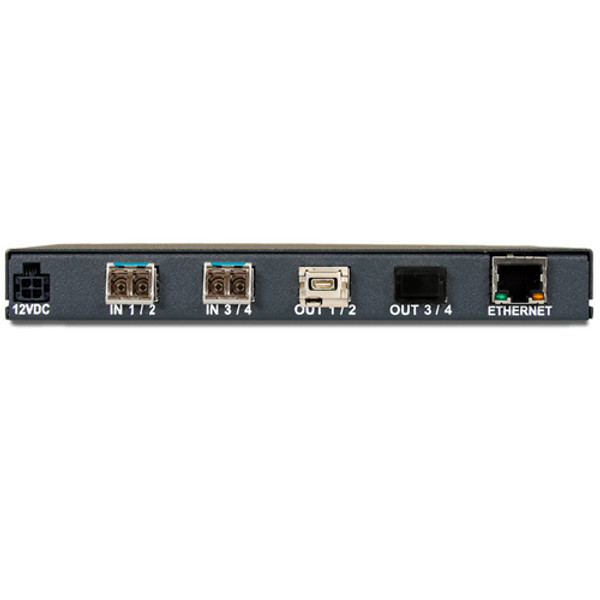

PESA 4X1 EasyPort Extender, four SD/HD/3G fiber inputs converted/switched to one HDMI output, PS, SW included
PESA EASY-4FX1H - 4X1 EasyPort Extender, four SD/HD/3G fiber inputs converted/switched to one HDMI output, PS, SW included
PESA's easyPORT boxes are multi-format converters that provide a wide range of port options and port density. The easyPORT converters can be configured to support crosspoint switching or conversion for ASI, SDI, HD-SDI, 3G-SDI, HDMI/DVI, and NTSC/PAL. The basic easyPORT includes four SFP type card cages can be populated to fit practically any combination of input and output signals. Each easyPORT comes with a built-in Ethernet port and USB port for easy setup and diagnostics. Up to four easyPORT converters can be loaded in a 1RU frame with support for redundant power. Setup is simple with the supplied GUI interface.
Control & Interfaces
|
- Network connection 10/100 RJ-45
- USB mini-USB port
- Software CP-S Network GUI operates with USB or TCP/IP
- Switching Built-in 4X4 crosspoint
|
Mechanical
|
- Size (inches) 6.75 W x .825 H x 6.25 D
- Size (mm) 171.45mm x 20.96mm x 158.75mm
|
Options
|
- Mounting wall bracket for a single chassis
- 1RU rack mount holds four modules includes power supply and power cables
|
