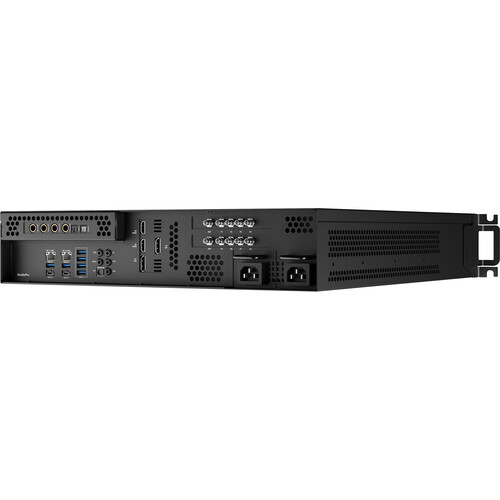

Quicklink StudioPro-8 Professional 8-Channel 12G-SDI Video Production System (Analog XLR)
Professional 8-Channel 12G-SDI Video Production System
Equip your corporate venue, house of worship, educational auditorium, or government facility with a high-performance broadcast solution designed for demanding live production environments. This system combines powerful hardware-based processing with advanced IP and SDI workflows for seamless live streaming and recording.
Built around a dedicated hardware server, it delivers professional broadcast audio and video input/output with integrated AI tools, PTZ control, and multimedia capabilities. The system supports up to 48 simultaneous external inputs via SDI/IP, including eight configurable 12G-SDI interfaces with UHD 4K support, balanced XLR audio I/O, and eight independent IP/NDI streaming outputs.
AI-Driven Production Enhancements
Powered by NVIDIA Maxine technology, advanced AI features include Eye Contact correction, Artifact Reduction, Video Noise Removal, and Auto Framing. Presenters maintain natural camera engagement even while referencing notes. AI processing minimizes visual distractions from lighting inconsistencies and reflections, while intelligent audio modeling removes background noise and echo for precise, broadcast-quality sound. Auto Framing dynamically tracks subjects to maintain professional composition.
Flexible Configuration Tools
Production layouts can be refined with precision cropping, rotation, scaling, and repositioning controls. Sources can be custom-labeled to align with workflow preferences, and new inputs can be added instantly with one-click functionality. Snap-to-edge and center alignment tools ensure clean, balanced compositions during live production.
Advanced Audio Capabilities
A dedicated PCIe audio card provides eight balanced XLR inputs and eight balanced XLR outputs. The integrated multichannel audio mixer supports up to eight channels with detailed routing, mix-minus creation, delay adjustment, compressor and limiter controls, and customizable gating parameters. Built-in VU metering ensures accurate monitoring, while WDM-compatible USB audio devices can be incorporated into the workflow.
Professional Control Options
The intuitive interface is optimized for efficiency and touchscreen interaction. Optional hardware control panels offer tactile operation. Remote production management is accessible globally without complex network setup. MIDI device support enables control of scenes, transitions, audio, and media playback, while macro automation streamlines complex production sequences.
Broadcast-Standard Integration
Native 12G-SDI input and output supports up to UHD 4K60 video. Advanced conference calling integrates remote contributors from major video conferencing platforms as individual production sources. Integrated transmission channels facilitate professional caller management. PTZ camera control via RS-232, RS-422, and IP provides direct adjustment of pan, tilt, zoom, focus, and white balance.
IP Connectivity
Transmit and receive video, audio, and metadata across networks using NDI, SRT, RTMP, and related IP technologies. These protocols ensure secure, low-latency transmission for both local and wide-area network environments.
Monitoring & Multiview
Enhanced signal processing delivers high-quality previews with full field-rate deinterlacing and real-time audio monitoring. Multiple scenes, sources, and program outputs can be viewed simultaneously within the interface, expandable to five additional dedicated multiview displays. Network reference signal support via NDI ensures connectivity validation and calibration accuracy.
Multimedia & Graphics Management
Store and display graphics, images, and video files in virtually any format. Titles can be edited live during production, while integrated graphics tools enable professional on-air visuals and animation. Media can be organized into storyboard-style playlists with autoplay presets. Instant replay functionality supports up to eight NDI or SDI input recordings.
Operational Efficiency
Automatic resolution and frame-rate detection simplifies SDI camera setup. Redundant, removable power supplies enhance reliability. Internal frame synchronization with NTP support eliminates timing concerns. Native-resolution processing preserves signal integrity without unnecessary upconversion or downconversion. USB-C and USB-A 3.1 connectivity enable high-speed transfers and external capture workflows.
Video Output Flexibility
Supports four multiviewer outputs (two HDMI and two DisplayPort), up to 120 mixed scene outputs, and eight simultaneous outputs available in both SDI and IP formats. Productions can be delivered locally and across networks at the same time, with configurable auxiliary and primary mix outputs.
Comprehensive Recording
Capture up to 16 external NDI sources in ISO format while simultaneously recording complete program outputs. Multi-channel AV1, HEVC, and H.264 recording profiles are available. Files are synchronized to UTC and can be stored internally, externally, or on shared network drives for streamlined archiving and distribution.
Robust Live Streaming
Built-in encoders support up to five simultaneous streams from HD through UHD resolution. Compatible with major streaming platforms and custom streaming destinations, the system supports fully configurable streaming profiles. SRT ensures secure, low-latency transmission across congested networks.
Switching & Layering
Preview and program can be combined within a unified switcher interface. Apply overlays, titles, animations, and picture-in-picture effects using upstream and downstream keying. Access up to 120 scene presets across five tabbed banks. Sandbox preview controls allow compositions to be tested before going live.
Visual Effects & Creative Control
Create immersive studio environments with custom virtual set designs. Incorporate remote graphic overlays via alpha channel outputs. Access unlimited transitions from local and cloud libraries, including branded animated effects. Seamless integration with professional graphic creation platforms expands creative flexibility.
Expanded Workflow Capabilities
IP tally indicators provide clear on-air status visibility. NDI connectivity enables integration with capture cards, webcams, audio interfaces, media players, and creative software timelines across the network. Ultra-low throughput latency at approximately one frame ensures responsive, broadcast-grade performance in demanding live production environments.
