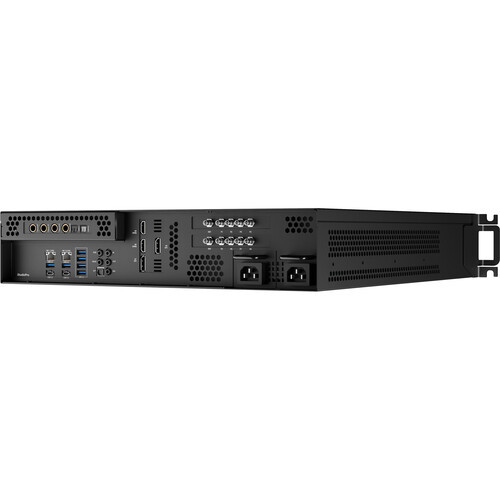

Quicklink STUDIOPRO-8 (N) StudioPro-8 Professional 8-Channel 12G-SDI Video Production System (Dante IP)
Professional 8-Channel 12G-SDI Video Production System with Dante
Design a powerful broadcast environment for corporate venues, houses of worship, lecture halls, and government facilities with a fully integrated live production system. Built on a dedicated hardware server, this platform delivers professional-grade audio and video input/output for SDI, IP, and NDI workflows, combining advanced AI tools, PTZ camera control, and multimedia functionality in a single solution.
The system supports up to 48 simultaneous external video inputs via SDI/IP, including eight configurable 12G-SDI interfaces with UHD 4K support. Integrated Dante IP audio I/O enables seamless network-based audio routing, while eight independent IP/NDI streaming outputs provide flexible distribution options.
AI-Driven Production Enhancements
Powered by NVIDIA Maxine technology, built-in AI tools elevate both video and audio quality. Features include Eye Contact correction, Artifact Reduction, Video Noise Removal, and Auto Framing. Presenters maintain natural engagement with the camera, even when referencing notes or monitors. Intelligent processing minimizes lighting inconsistencies and background distractions while advanced audio modeling removes echo and ambient noise for clear, professional sound. Auto Framing dynamically detects and tracks subjects for polished compositions.
Flexible Configuration Tools
Refine layouts with intuitive cropping, rotation, scaling, and positioning controls. Custom-label sources to match workflow requirements and add new inputs instantly with single-click functionality. Snap-to-edge and center alignment tools help maintain precise and visually balanced productions.
Dante-Enabled Audio Capabilities
A dedicated PCIe card with dual RJ45 Ethernet ports and Dante licensing enables robust IP-based audio networking. Easily route signals to create mix-minus feeds with full balance and delay control. The integrated multichannel audio mixer supports up to eight channels, offering compressor and limiter adjustments, customizable gating parameters, and detailed level management. Built-in VU metering ensures accurate monitoring, and WDM-compatible USB audio devices can be incorporated as needed.
Professional Control Options
An intuitive, touchscreen-friendly interface streamlines live production control. Optional hardware control panels provide tactile operation, while remote access enables global production management without complex network configuration. MIDI device compatibility supports control of scenes, transitions, audio, and media playback. Macro automation simplifies multi-step actions across scenes, streaming, recording, and system functions.
Broadcast & Remote Integration
Native 12G-SDI input/output supports up to UHD 4K60 workflows. Advanced conference integration allows remote contributors from major video conferencing platforms to be incorporated as dedicated production sources. Integrated transmission channels enable professional caller management. PTZ cameras can be controlled via RS-232, RS-422, or IP, providing direct adjustment of pan, tilt, zoom, focus, white balance, and speed from within the interface.
IP Connectivity
Send and receive video, audio, and data across networks using NDI, SRT, RTMP, and related IP technologies. These protocols enable secure, low-latency performance for both local production networks and wide-area transmission.
Monitoring & Multiview
Enhanced signal processing delivers high-quality preview output with full field-rate deinterlacing and real-time audio monitoring. Multiple scenes, sources, and program feeds can be viewed simultaneously within the interface and extended to up to five additional dedicated multiview displays. NDI reference signal support enables connectivity verification and precise calibration.
Multimedia & Graphics Management
Store and display images, graphics, and video files in virtually any format. Titles can be edited live during broadcasts, while integrated graphics tools support dynamic on-air visuals and animation. Organize media into storyboard-style playlists with drag-and-drop simplicity and autoplay presets. Instant replay functionality supports up to eight NDI or SDI input recordings.
Operational Efficiency
Automatic resolution and frame-rate detection simplifies SDI camera setup. Redundant, removable power supplies enhance system reliability. Internal frame synchronization with NTP support eliminates timing inconsistencies. Native-resolution processing preserves image integrity without unnecessary upconversion or downconversion. High-speed USB-C and USB-A 3.1 connectivity supports rapid file transfers and external capture workflows.
Video Output Flexibility
Four multiviewer outputs (two HDMI and two DisplayPort) are supported, along with up to 120 mixed scene outputs. Up to eight independent outputs are available simultaneously in both SDI and IP formats. Productions can be delivered locally and across networks at the same time, with configurable auxiliary and primary mix outputs.
Comprehensive Recording
Capture up to 16 external NDI sources in ISO format while simultaneously recording full program outputs. Multi-channel AV1, HEVC, and H.264 recording profiles are supported. Files are synchronized to UTC and can be stored internally, externally, or on shared network storage for efficient archiving and distribution.
Advanced Live Streaming
Built-in encoders support up to five simultaneous streams from HD through UHD resolution. Compatible with major streaming platforms and custom destinations, the system allows flexible profile configuration. SRT ensures secure, low-latency transmission across congested networks, minimizing jitter and packet loss.
Switching & Layering
Combine preview and program within a unified switcher interface. Apply overlays, titles, animations, and picture-in-picture elements using upstream and downstream keying. Access up to 120 scene presets across multiple tabbed banks. Sandbox preview controls allow scenes to be configured and tested before going live.
Visual Effects & Creative Control
Create immersive studio environments with custom virtual set designs. Support remote graphic overlays via alpha channel outputs and access unlimited transitions from local and cloud libraries. Integration with professional graphic creation platforms and cloud-based overlay solutions expands creative flexibility.
Expanded Workflow Capabilities
IP tally indicators provide clear on-air status visibility across the network. NDI connectivity enables integration with capture cards, webcams, audio interfaces, media players, and creative software timelines. Designate NDI feeds as webcam inputs for conferencing platforms when needed. Ultra-low throughput latency — approximately one frame — ensures responsive, broadcast-grade performance in demanding live production environments.
