Panasonic AW-UE150AKPJ UHD 4K 20x PTZ Camera (Black)
Product Highlights:
- Panasonic AW-RP150 Touchscreen Remote Camera Controller
- IDX IA-60A power supply
- 4-pin power cable
- AC power cable
- Manual
Panasonic AW-UE150AKPJ UHD 4K 20x PTZ Camera (Black)
Panasonic AW-UE150AKPJ UHD 4K 20x PTZ Camera (Black)
Versatile 4K Imaging for Broadcast and Live Production
The Panasonic AW-UE150A 4K PTZ camera is designed to meet the needs of professional broadcasters and content creators, offering advanced imaging performance and broad compatibility for a variety of studio and live production environments.
High-Quality Video with Flexible Framing
Featuring a 1.0-type 4K MOS sensor, the UE150A captures high-resolution video with clarity and precision. Its 75.1° wide-angle lens and 20x optical zoom allow for versatile shot composition, from broad coverage to detailed close-ups. Built-in auto-tracking functionality and enhanced synchronization of pan, tilt, and zoom presets support smooth, consistent operation.
Comprehensive Connectivity and IP Integration
The UE150A supports NDI® High Bandwidth, enabling IP-based 4K video transmission with low latency. It also includes support for SRT and NDI® HX2, ensuring reliable performance even in less stable network conditions. Outputs include 12G-SDI, dual 3G-SDI, HDMI, and fiber, providing flexibility for integration into a variety of production workflows.
Image Optimization and Stability Features
Designed for demanding visual environments, the UE150A incorporates an optical low-pass filter (OLPF) to reduce luminance and color moiré when filming monitors or LED walls. HDR (HLG) compatibility supports realistic image reproduction, while the enhanced Optical Image Stabilizer (OIS) helps minimize shake during camera movement.
Integration with Studio Systems
For streamlined operation, the UE150A is compatible with Panasonic’s AK-HRP1010GJ and HRP1015GJ Remote Operation Panels, making it easier to match color profiles with other studio cameras and maintain a consistent visual standard across multi-camera setups.
| Panasonic AW-UE150A PTZ Camera with OLPF Specs |
|---|
| Imaging |
|---|
| Image Sensor |
1"-Type MOS
|
| Horizontal Resolution (TV Lines) |
1600 TV Lines
|
| Sensor Resolution |
Effective: 8.29 Megapixel (3840 x 2160)
|
| Focus Control |
Autofocus
Manual Focus
|
| Exposure Control |
|---|
| Shutter Speed |
1/10000 to 1/25 Second
|
| ISO/Gain Sensitivity |
: Gain: 0 to 36 dB (36 to 42 dB Extended)
|
| Precise Scan Rate Control |
Yes
|
| Signal-to-Noise Ratio |
60 dB
|
| Minimum Illumination |
2 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 2000 to 15,000K
Presets: ATW, AWB
|
| Lens |
|---|
| Focal Length |
8.8 to 176mm (35mm Equivalent: 24.5 to 490mm)
|
| Optical Zoom Ratio |
20x
|
| Max Digital Zoom |
24x ( in UHD 4K)
32x ( in 1080p)
|
| Field of View |
Horizontal: 75.1 to 4°
Vertical: 46.7 to 2.3°
Diagonal: 82.8 to 4.6°
|
| Maximum Aperture |
f/2.8 to 4.5
|
| Minimum Focus Distance |
3.3' / 1 m
|
| Video Capture |
|---|
| External Recording Modes |
SDI/BNC / HDMI
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080p at 24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1920 x 1080PsF at 23.98/25/29.97 fps
1280 x 720 at 50/59.94 fps
|
| Embedded Audio |
HDMI/IP/SDI
|
| Audio Recording |
2-Channel 16-Bit 48 kHz AAC LC Audio
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264/MJPEG/H.265 via SRT/RTMPS/RTMP
3840 x 2160 at 60p
|
| Control |
|---|
| Presets |
100 via IP, RS-422
|
| Pan/Tilt |
Pan: 350° (-175 to 175°) at 0.08 to 180°/s
Tilt: 240° (-30 to 210°)
|
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
NDI
NDI|HX2
RS-422
|

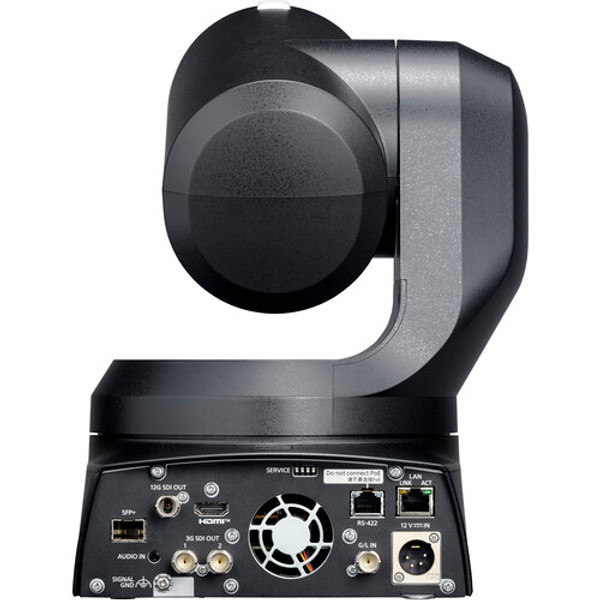

| Interface |
|---|
| Video I/O |
1x HDMI 2.0 Output
1x BNC (12G-SDI) Output
2x BNC (3G-SDI) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1x RJ45 (LAN)
1x RJ45 (RS-422)
1x BNC (Genlock) Input
|
| Expansion Slots |
1x SFP+ Slot
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
| Power |
|---|
| PoE Support |
PoE++ 802.3bt
|
| Power I/O |
1x XLR 4-Pin (10.8 to 13.2VDC at 4 A) Input
|
| Power Consumption |
PoE: 1.2 A
|
| Environmental |
|---|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 90% Humidity
|
| Storage Conditions |
24 to 122°F / -4 to 50°C
|
| Environmental Resistance |
No
|
| General |
|---|
| Mounting |
1x 1/4"-20 Female
|
| OS Compatibility |
Windows 10 to 10 / macOS 10.11 to 10.13
|
| Security Lock Support |
Key Lock
|
| Dimensions (W x H x D) |
8.4 x 10.5 x 8.6" / 213 x 267 x 219 mm (Without Bracket, Protrusions)
|
| Weight |
9.3 lb / 4.2 kg (Body Only)
|
| Packaging Info |
|---|
| Package Weight |
17.395 lb
|
| Box Dimensions (LxWxH) |
19.2 x 15.3 x 14.9"
|
