SIIG for 2.5" SATA HDD/SSD (Black)
Product Highlights
- USB 3.0, 5 Gb/s Data Transfer Rate
- Up to 3TB Capacity
- For 2.5" HDDs/SSDs
- Simple Tool-Less Design
- Low Power Consumption
- Backwards Compatible with USB 2.0
- Windows Compatible
SIIG for 2.5" SATA HDD/SSD (Black)

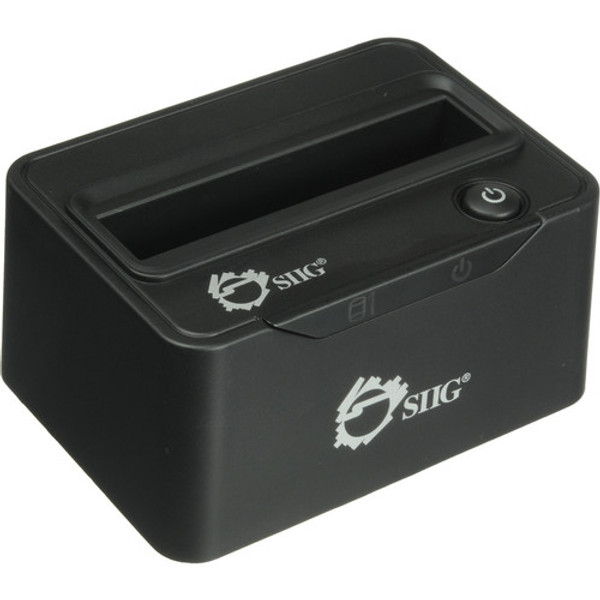

SIIG SuperSpeed USB 3.0 Mini Docking Station - for 2.5" SATA HDD/SSD (Black)
The black SuperSpeed USB 3.0 Mini Docking Station for 2.5" SATA HDD/SSD from SIIG is designed to quickly add more storage space to your USB-enabled PC (USB 3.0 recommended). It delivers SuperSpeed USB 3.0 at 5 Gb/s data transfer rate and supports up to 3TB hard disk capacity. It works with 2.5 x 0.5" (64 x 12.5 mm) SATA Hard Disk Drives (HDDs) or Solid State Drives (SSDs). With a simple tool-less design, this mini docking station is easy to setup and requires no driver installation. Furthermore, it is compact and draws low power consumption without any power adapter.
The mini docking station is compliant with Serial ATA specification, SuperSpeed USB 3.0 and is backwards compatible with USB 2.0 specification. It is FCC and CE approved as well as RoHS compliant. In addition, it is fully compatible with Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Server 2003 & 2008 (32/64-bit).
- Quickly adds more storage space to your USB-enabled PC (USB 3.0 recommended)
- Simple tool-less design facilitates driver-free installation
- SuperSpeed USB 3.0 delivers 5 Gb/s data transfer rate
- Low power consumption
| Housing |
Plastic |
| Data Transfer Rate |
5 Gb/s |
| Drive Type Supported |
2.5 x 0.5" (64 x 12.5 mm) SATA HDDs or SDDs |
| Capacity |
3 TB |
| Chipset |
Asmedia ASM1051 |
| Compliance |
SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification
Serial ATA specification |
| Ports |
1, 10-pin, micro B, USB 3.0, female, downstream |
| On/Off Push Button |
Yes |
| USB 3.0 Y-Split Cable |
Color: Black
Length: 39.4" (1001 mm)
Connectors: 1, 5-pin, type A, USB 3.0, male, upstream
1, 4-pin, type A, USB 2.0, male, upstream (for additional USB power)
1, 10-pin, micro B, USB 3.0, male, downstream |
| Certifications |
FCC, CE, RoHS |
| Requirements |
Desktop or Notebook PC with an available USB 2.0/3.0 port (USB 3.0 recommended)
Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Server 2003 & 2008 (32/64-bit) |
| Environmental |
Temperature: Operating: 32 to 104°F (0 to 40°C), Storage: -4 to 122°F (-20 to 50°C)
Relative Humidity: Operating: 5 to 85%, Storage: 5 to 95%
Operating Altitude: -1000 to 10,000' (-305 to 3048 m) |
| Dimensions (WxHxD) |
3.35 x 1.69 x 2.4" (85 x 43 x 61 mm) |
| Weight |
0.2 lb (0.09 kg) |
