SmallHD CINE 5 Touchscreen On-Camera Monitor
Product Highlights:
- 5" 1920 x 1080 Touchscreen Display
- 2000 cd/m², 10-Bit LCD Panel, DCI P3
- 2-Pin Locking Power Input
- 5-Pin Locking USB for RED Camera Control
- Side-Mounted Joystick, Back Button
- 1 x HDMI Input, 1 x HDMI Output
- 1 x 3G-SDI Input, 1 x 3G-SDI Output
- Waveform / RGB Parade / Vectorscope
- SmallHD CINE 5 Touchscreen On-Camera Monitor
- Limited 1-Year Warranty
SmallHD CINE 5 Touchscreen On-Camera Monitor

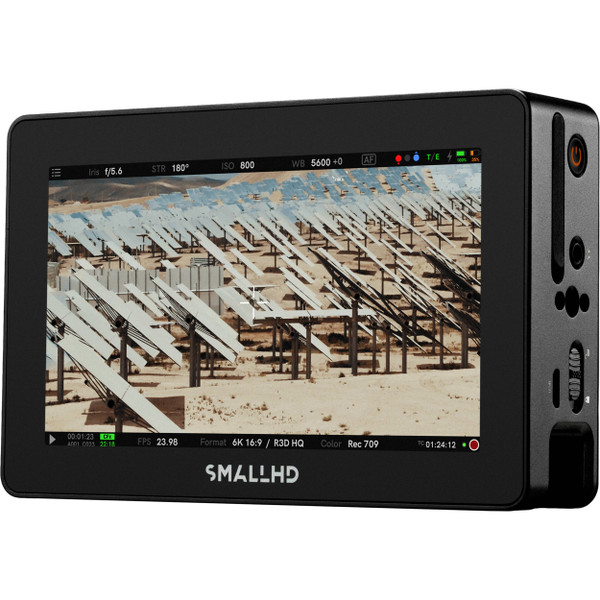

SmallHD 16-0526 CINE 5 Touchscreen On-Camera Monitor Monitor your camera with the CINE 5 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 5" display suitable for indoor or outdoor use, the CINE 5 monitor supports various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The CINE 5 features a bright 2000 cd/m², 1920 x 1080 LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap, and the CINE 5 also adds a joystick on the side and a button on the back for ease of use. There is a 5-pin USB output to utilize optional RED camera control. The monitor can be powered using its 2-pin power input.
Key Features
- Slim, lightweight, daylight-viewable, 5" touchscreen on-camera monitor with 2000 cd/m² brightness
- HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
- Supports 10-bit 4:2:2 DCI-P3 color
- The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more. The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools
- Power via 2-pin power input
- Four 1/4"-20 mounting points on top, left, right, and back
- Optional RED camera control
RED Control Features
- Run/stop
- Color controls
- Exposure controls
- Status
- Color temperature
- Video format
- Playback
- Shutter
- Menu control
Software Features
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to eight channels
| SmallHD CINE 5 Specs |
|---|
| Display |
|---|
| Panel Type |
LCD |
| Display Size |
5.0" / 12.7 cm |
| Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 |
| Touchscreen |
Yes |
| Maximum Brightness |
2000 cd/m2 |
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) |
440 ppi |
| Color Gamut |
100% DCI-P3 |
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
| I/O |
|---|
| Video |
1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Loop Output
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output |
| Embedded Audio |
HDMI: 8-Channel
SDI: 8-Channel |
| Audio |
1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker |
None |
| Power I/O |
1 x LEMO 2-Pin (34 VDC) Input |
| Other I/O |
1 x USB 2.0 (LEMO 5-Pin) Output |
| Media/Memory Card Slot |
None |
| Format Support |
|---|
| Video Format |
HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94 |
| Video Signal Conversion |
SDI to HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 240/239.76
HDMI to SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100
720p: 60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50 |
| Mounting |
|---|
| Mounting |
4 x 1/4"-20 Female |
| General |
|---|
| Material of Construction |
Aluminum |
