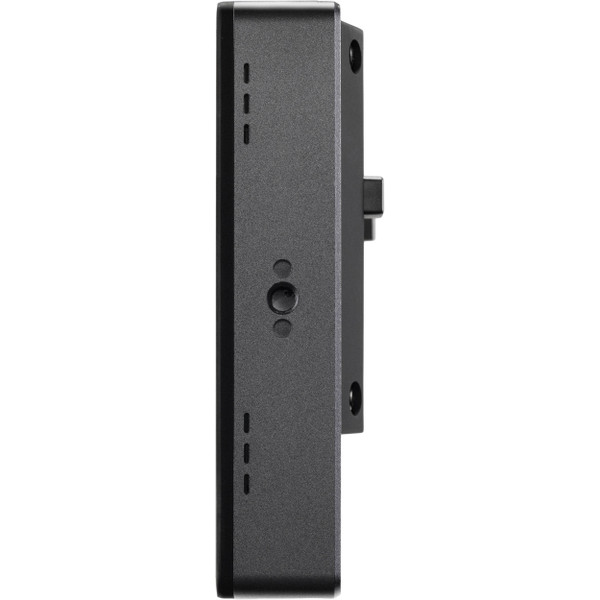

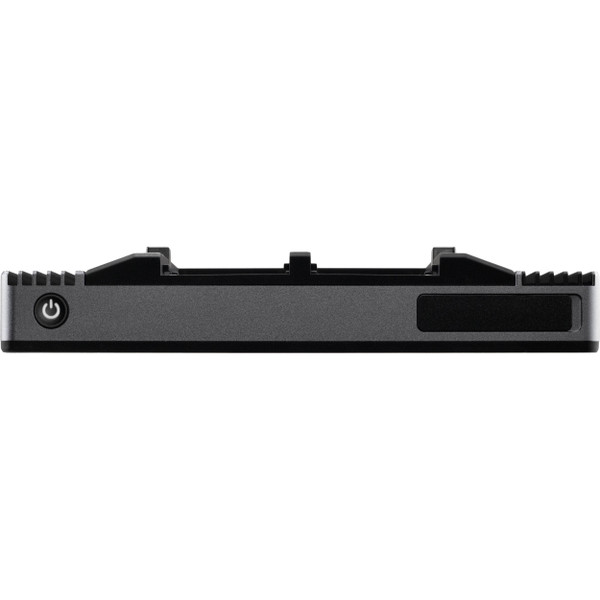

SmallHD INDIE 7 On-Camera Monitor Kit for RED KOMODO
Product Highlights:
- 7" 1920 x 1200 Touchscreen Display
- RED KOMODO Control Software Included
- 1000 cd/m², 10-Bit, IPS LCD Panel
- HDMI & 3G-SDI Inputs & Outputs
- SmallHD INDIE 7 On-Camera Monitor Kit for RED KOMODO
- SmallHD Cine 7/702 Touch Monitor Camera Control Kit for RED KOMODO
- SmallHD Microfiber Cleaning Cloth
- SmallHD Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
- Limited 1-Year Warranty
SmallHD INDIE 7 On-Camera Monitor Kit for RED KOMODO
SmallHD MON-INDIE-7-KOMODO INDIE 7 On-Camera Monitor Kit for RED KOMODO
The lightweight INDIE 7 On-Camera Monitor Kit for RED KOMODO from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input. Also included with the monitor is a software license upgrade for the PageOS 4 software to allow control of the RED KOMODO 6K camera, a 5-pin to 9-pin LEMO-type camera connector cable, and a 5-pin USB adapter. The INDIE 7 is powered using the included dual L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs. Using the intuitive SmallRig PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.
| SmallHD Indie 7 Specs |
|---|
| Display |
|---|
| Number of Displays |
1 |
| Panel Type |
IPS-Type LCD |
| Display Size |
7.02" / 17.8 cm |
| Active Area |
5.95 x 3.72" / 15.11 x 9.45 cm |
| Screen Resolution |
1920 x 1200 |
| Aspect Ratio |
16:9 |
| Viewing Angle |
Horizontal: 160° |
| Touchscreen |
Yes |
| Maximum Brightness |
1000 cd/m2 |
| Contrast Ratio |
1000:1 |
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) |
323 ppi |
| Color Gamut |
75% Rec. 709 |
| Real-Time LUT Monitoring |
SDR, HDR |
| Image Controls |
Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra |
| I/O |
|---|
| Video |
1 x HDMI Type A Input
1 x HDMI Type A Output
1 x BNC (3G-SDI/HD-SDI) Input
1 x BNC (3G-SDI/HD-SDI) Output |
| Embedded Audio |
HDMI
SDI |
| Audio |
1 x 3.5 mm Headphone Output |
| Built-In Speaker |
None |
| Power |
1 x Barrel (10 VDC) Input |
| Other I/O |
1 x USB 2.0 (Micro-USB) Input |
| Card Slot |
1 x SD |
| Wi-Fi |
None |
| Format Support |
|---|
| Video Format |
HDMI (8/10/12/16-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50/25
480p: 60
576i: 50
480i: 59.94 |
| Video Signal Conversion |
HDMI to SDI
SDI to HDMI |
| Power |
|---|
| DC Input Power |
10 to 34 VDC |
| Battery Type |
1 x L-Series (Interchangeable Mount) |
| Power Consumption |
17.3 W |
| Mounting |
|---|
| Mounting |
4 x 1/4"-20 Female |
| Environmental |
|---|
| Certifications |
CE, FCC, IC, RoHS, as per Manufacturer |
| Operating Temperature |
30 to 100°F / -1 to 37°C |
| Storage Temperature |
0 to 120°F / -17 to 48°C |
| General |
|---|
| Material of Construction |
Aluminum |
| Dimensions (W x H x D) |
7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm |
| Weight |
26 oz / 737 g |
| Warranty Length |
Limited 1-Year Warranty |
