Description

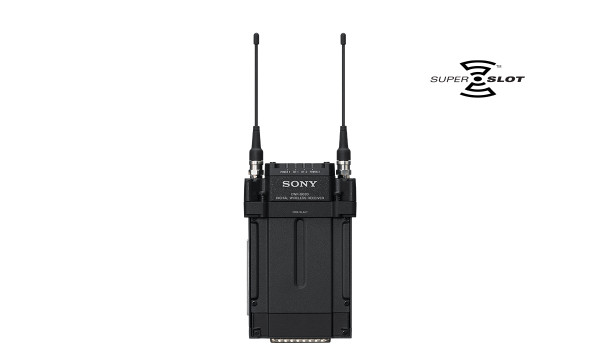

Sony DWX Gen3 2-channel digital wireless slot-in receiver
This high performance 2-channel portable slot-in receiver is an ideal choice for ENG/EFP and location sound applications. The DWR-S03D is part of Sony's third generation DWX series digital wireless microphone system that combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies and an enviable reputation for stability.
The receiver operates with a wide bandwidth up to 148 MHz (depending on region), increasing the probability of finding unoccupied frequencies in congested metropolitan areas.

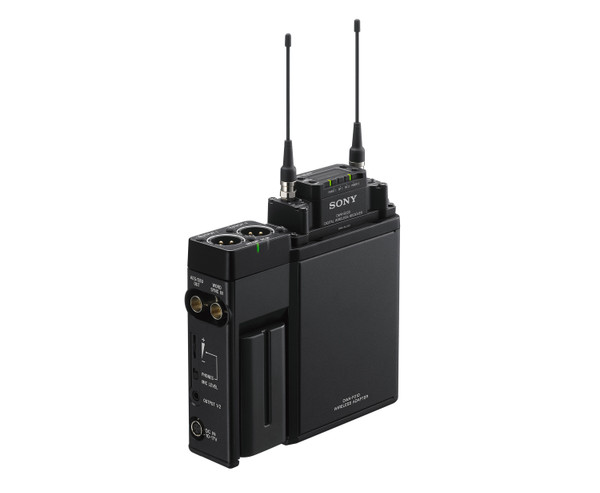

Light and compact, the DWR-S03D can be mounted in the slot of Sony or other professional camcorders using the optional DWA-SLAS1 or DWA-SLAU1 interface adaptor.
Automatic channel scan and sync permits quick, easy frequency setting, and the high density 375 kHz interval channel plan enables simultaneous multi-channel operation.
This high performance 2-channel portable slot-in receiver is an ideal choice for ENG/EFP and location sound applications. The DWR-S03D is part of Sony's third generation DWX series digital wireless microphone system that combines advanced digital technologies, analogue microphone expertise, wireless audio transmission technologies and an enviable reputation for stability.
The receiver operates with a wide bandwidth up to 148 MHz (depending on region), increasing the probability of finding unoccupied frequencies in congested metropolitan areas.
Light and compact, the DWR-S03D can be mounted in the slot of Sony or other professional camcorders using the optional DWA-SLAS1 or DWA-SLAU1 interface adaptor.
Automatic channel scan and sync permits quick, easy frequency setting, and the high density 375 kHz interval channel plan enables simultaneous multi-channel operation.
Sony DWX Gen3 2-channel digital wireless slot-in receiver
Technical Specs
| Type of Receiver | Slot-in (2 channels) |
| Transmission Method | WiDIF-HP (x2) |
| Circuit system | Double superheterodyne |
| Oscillator type | Crystal-controlled PLL synthesizer |
| Reception Type | True diversity method |
| RF input terminal | SMA-R, 50 ohms |
| Antenna Type | Detachable |
| Sensitivity | 20 dBμ or less (at ambient temperature 25 °C (77 °F), bit error rate = 1 x 10 -5, no decline in S/N ratio) |
| Carrier Frequencies | UC7 : 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz (UHF-TV channels 14 to 36, 38) L/CE7 : 470.025 MHz to 614.000 MHz (UHF-TV channels 21 to 38) H/CE7 : 566.025 MHz to 714.000 MHz (UHF-TV channels 33 to 51) G/J : 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz |
| Reference output level | Analog: –40 dBu Digital: –36 dBFS/–20 dBFS (switchable) |
| Dynamic range | 106 dB or more (A-weighted) |
| Distortion (T.H.D) | MODE1, MODE2, MODE4: 0.03% or less MODE3: 0.3% or less |
| Audio delay | Analog output in combination with the DWA-01D/F01D; MODE1: 2.1 msec, MODE2: 1.7 msec, MODE3: 3.0 msec, MODE4: 1.7 msec ABS/EBU output in combination with the DWA-01D/F01D; MODE1: 1.9 msec, MODE2: 1.5 msec, MODE3: 2.8 msec, MODE4: 1.5 msec Through a digital connection with a camcorder; MODE1: 1.9 msec, MODE2: 1.3 msec, MODE3: 2.7 msec, MODE4: 1.4 msec |
| Audio output connector | D-sub 15 pin (male) (x1) with optional adaptor DWA-SLAS1 D-sub 25 pin (male) (x1) with optional adaptor DWA-SLAU1 |
| Display | OLED |
| Operating voltage | DC 6 V to 18 V |
| Consumption current | 3.5 W or less with optional adaptor DWA-SLAS1 4.0 W or less with optional adaptor DWA-SLAU1 |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Wireless remote control | 2.4- GHz IEEE802.15.4 compliant |
| Dimensions | Approx. 88 x 119 x 32 mm (3 1/2 x 4 3/4 x 1 5/16 in) (W / H / D) (excluding antennas) with optional adaptor DWA-SLAS1 Approx. 74 x 119 x 31 mm (3 x 4 3/4 x 1 1/4 in) (W / H / D) (excluding antennas) with optional adaptor DWA-SLAU1 |
| Mass | Approx. 193g with optional adaptor DWA-SLAS1 (including antennas) Approx. 196g with optional adaptor DWA-SLAU1 (including antennas) |
| Supplied accessories | Antenna (2), CD-ROM (1), Frequency band label (1), Before Using this Unit (3) |
| Notes | *1 0dBμV=1μV EMF, 0dBu=0.775Vrms, 0dBV=1V, 0dB SPL=2x10-5 Pa *2 The values for dimensions are approximate. *3 This product is available in a variety of different frequency range models to suit the regulatory requirements of individual countries. Please contact your Sony reseller for more information on which product will best suit your specific needs. |
