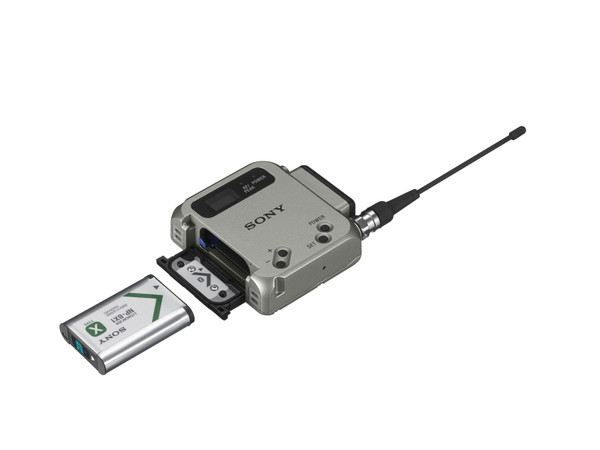

| Sony DWT-B03R Specs |
|---|
| General |
|---|
| Wireless Interface |
WiDIF-HP |
| Oscillator Type |
Crystal-controlled PLL Synthesizer |
| Antenna Type |
λ/4 flexible wire |
| Type of Emission |
G1E or G1D |
| Carrier Frequencies - UC7 |
470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz, 25 kHz steps |
| Carrier Frequencies - CE7 |
L: 470.025 MHz to 614.000 MHz, 25 kHz steps
H: 566.025 MHz to 714.000 MHz, 25 kHz steps |
| Carrier Frequencies - J |
L: 470.150 MHz to 614.000 MHz, 25 kHz steps
MH: 566.025 MHz to 713.850 MHz, 25 kHz steps
G: 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps
B: 806.125 MHz to 809.750 MHz, 125 kHz steps |
| RF Power |
2 mW/10 mW/25 mW (e.r.p) selectable |
| Input Connector |
Small 3-pin connector with lock |
| Reference Input Level |
MIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level) / LINE: +4 dBu, 1 kHz |
| Maximum Input Level |
MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu |
| Audio Attenuator Adjustment Range |
0 to 48 dB (3 dB steps, MIC input mode only) |
| Frequency Response |
Transmission: 20Hz to 22kHz (typical) |
| Dynamic Range |
106 dB typical (A-weighted, T.H.D=1%) |
| Distortion (T.H.D) |
MODE1, MODE2: 0.03% or less, MODE3: 0.3% or less |
| Audio Delay* |
MODE1: 0.8 msec (total: 2.7msec) /MODE2: 0.7 msec (total: 1.2msec)/MODE3: 1.8 msec (total 3.7msec)
*Analog output |
| Wireless Remote Control |
Cross Remote (2.4-GHz IEEE802.15.4 compliant) |
| Display |
OLED |
| Power Requirements |
DC 3.6 V (with Rechargeable Battery Pack: NP-BX1) |
| Battery Operating Time |
Approx. 7 hours with Sony‘s NP-BX1 at 25℃(77°F) at 10-mW output
(with the wireless remote control function off and DIMMER MODE set to AUTO OFF) |
| Operating Temperature |
0°C to 50°C / 32°F to 122°F |
| Storage/Transport Temperature |
-20°C to +60°C / -4°F to +140°F |
| Dimensions (W x H x D) |
Approx. 53 x 60 x 17 mm (60 x 60 x 17 mm with the projection parts) (excluding the antennas) |
| Mass |
Approx. 99 g |
| Supplied Accessories |
Belt Clip (1)
Carrying case (1)
NP-BX1 (1)
Scribble sheet (1)
CD-ROM (1) |
