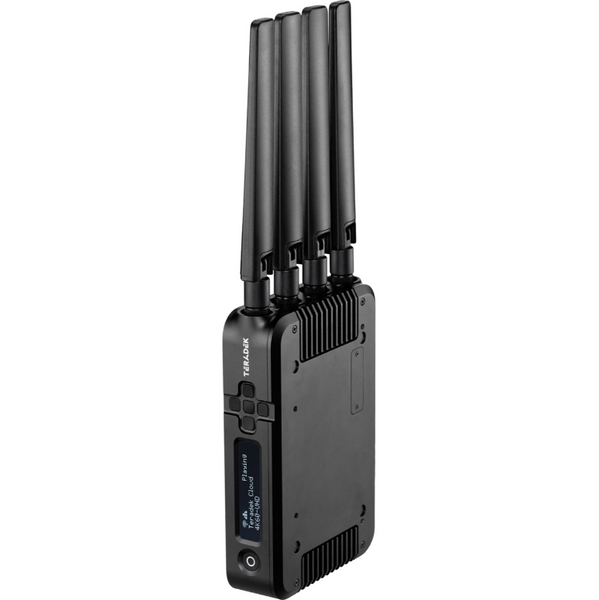

Teradek Prism Mobile (857) HEVC/AVC with Dual 4G LTE No Mount
Product Highlights:
- Compact design with lowest SWaP in class
- Dual internal LTE modems for connectivity
- Secure, low-latency 4K HDR video streaming
- Aggregates up to nine network sources
- Reliable performance in challenging locations
- 1 x Prism 857 Mobile HEVC/AVC with dual 4G LTE No Mount
- 4 x Antenna Ext 600-6000 Mhz 5G Dipole SMA Male
- 1 x SIM Card Holder
- 1 x PSU 2pin Conn.to 30W AC Adapter (Int) - 6ft Cable
- 4 x Antenna Ext 0.617-3.8ghz SMA
- 2 x Teradek SIM Card
Teradek Prism Mobile (857) HEVC/AVC with Dual 4G LTE No Mount
Teradek 10-2857-C Prism Mobile (857) HEVC/AVC with Dual 4G LTE No Mount
Prism Mobile is the lowest-SWaP, LTE-enabled camera-back video encoder in its class. Utilizing two internal LTE modems, Prism Mobile allows you to reliably contribute secure, low-latency, 4K HDR video from the most challenging locations by aggregating up to nine network sources.
| Teradek 10-2857-C Specs |
|---|
| Video |
|---|

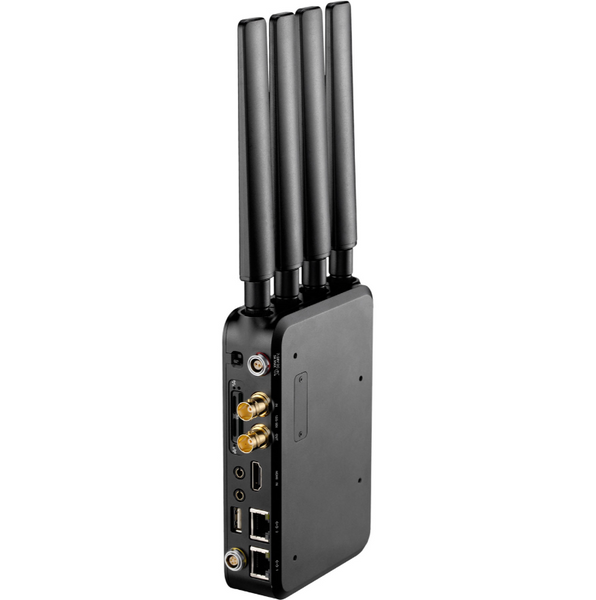

| Video Inputs |
1 x 12G/6G/3G/HD/SD-SDI (75 Ω BNC)
1 x HDMI 2.0 Type-A receptacle |
| HDR Support |
Yes (Rec. 2100) |
| Video Outputs |
1 x 12G/6G/3G/HD/SD-SDI (75 Ω BNC) |
| Bonding |
|---|
| Bonding |
Support for up to 9 network inputs:
4x Cellular phones
2x Internal Node modems
1x External modem
2x Ethernet networks |
| Resolution |
|---|
| Supported Resolutions |
4K DCI p23.98/24/25/29.97/30/50/59.94/60
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i
480i |
| Video Processing |
|---|
| Video Compression |
ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
AVC: Baseline, Main, High
ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
HEVC: Main |
| Supported Video Bitrate |
250 Kbps to 85 Mbps |
| Video Format Conversion Support |
Built in video scaler and deinterlacer |
| Color Correction |
CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) |
| Protocol Support |
|---|
| Network Protocols |
TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Supported Video Transport Protocols |
Secure Reliable Transport (SRT), RTMP/RTMPS, MPEG-TS (UDP, TCP, TCP Server, Multicast), CDNs (YouTube, Facebook, Vimeo), RTSP/RTP |
| Inputs/Outputs |
|---|
| Audio Input |
Embedded over SDI and HDMI, 3.5mm TRRS Stereo Line Level Analog or Microphone in, adjustable gain |
| Audio Output |
3.5mm TRRS Stereo Headphone output, adjustable gain |
| Physical |
|---|
| Dimensions |
5.9”W x 3.9”D x 1.3”H |
| Weight |
23.4oz [664g] without plates; 30.5oz (864g) with plates |
| Construction |
Milled aluminum |
| Mountability |
Camera-back, Gold, Gold 26V and V-Lock mounts
Can be mounted using the 1/4” 20 mounting holes |
