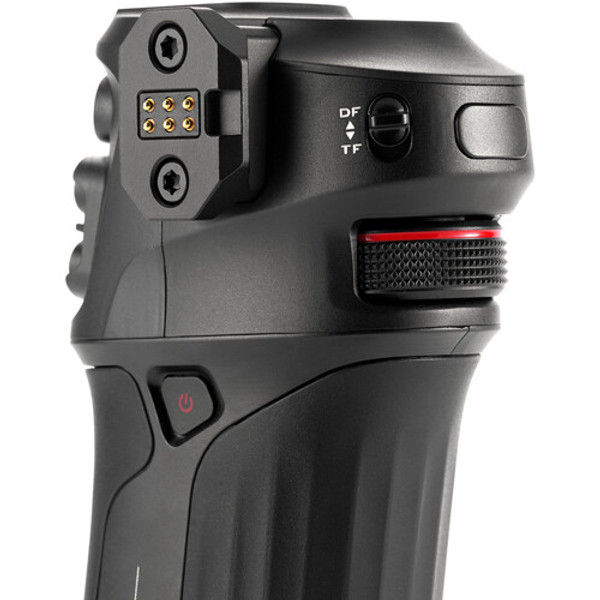

Tilta Nucleus Nano II Control Handle
Product Highlights:
- Wireless Follow Focus and Gimbal Control
- DJI Compatible with Optional Module
- Control 2 Motors with Dial and Joystick
- Handle up to 4 Motors with Handwheel
- 2.4 GHz Wireless Connectivity
- Powers Handwheel When Attached
- Takes Sony L-Series Battery (F550/570)
- 1/4"-20 and Cold Shoe Mounting Points
- Tilta Nucleus Nano II Control Handle
- USB-C Power Cable (11.8")
- Allen Key
- Limited 1-Year Manufacturer Warranty (Electrical)
- Limited 2-Year Manufacturer Warranty (Mechanical)
Tilta Nucleus Nano II Control Handle
Tilta WLC-T05-CH Nucleus Nano II Control Handle With an additional two channels of control, the Nucleus Nano II Control Handle from Tilta allows cinematographers to adapt to any shooting scenario, whether mounted to a shoulder rig for solo operation, combined with a monitor and Handwheel Controller for follow focus work, or used with the optional Wireless Receiver Module to remotely control DJI RS Focus Motors, RS 2, and RS 3 Pro gimbals.
Multichannel Configuration
- Pair it with the Handwheel Controller to operate up to four motors such as focus, iris, zoom, and Tilta's Mirage VND.
- The Control Handle's NATO Module supplies power to the Handwheel Controller when connected for extended use.
- The Control Handle can be used independently to wirelessly operate two Nucleus Series motors with the focus dial and joystick.
- With the optional Wireless Receiver Module, operate DJI RS 2 or RS 3 Pro gimbals with the joystick, and RS Focus Motors with both the joystick and focus dial.
Compatibility
The Nano II is backward compatible with the previous generation Nucleus-Nano and Nucleus-M lens motors for easy integration with your preexisting equipment. The current firmware fully supports all controls for the BMPCC 4K, 6K, and 6K Pro via Bluetooth only, with partial camera control, including run/stop, shutter speed, ISO, and iris adjustment for Sony FX3, A7S3, A7R5, ZV-E1, ZV-E10, and Canon R7 via USB-C PD cables.
| Tilta WLC-T05-CH Specs |
|---|
| General |
|---|
| Compatibility |
Tilta Nucleus Nano II / Nucleus-N / Nucleus-M
DJI RS Focus Motors / RS Gimbals RS 2 and RS 3 Pro with Optional Wireless Receiver Module
Sony ZV ZV-E10, ZV-E1 / Alpha a7C, a7 IV, a7S III, a7R III, a7R V / FX FX3, FX30
Canon R R6, R7, R8
Blackmagic Design Pocket Cinema Camera 4K, 6K, 6K Pro
|
| Display |
|---|
| Panel Type |
LCD
|
| Display Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|
| Wireless |
|---|
| Wireless |
2.4 GHz Radio/RF
*Built-In
|
| Mobile App Compatible |
No
|
| Battery |
|---|
| Battery Chemistry |
Lithium-Ion
|
| Battery Capacity |
2200 mAh
|
| Physical |
|---|
| Mounting |
Top: 1x 1/4"-20 Thread with Locating Points
Side: 1x NATO Module
|
| Color |
Black
|
| Material of Construction |
Aluminum Alloy, Stainless Steel
|
| Dimensions |
7.5 x 5.5 x 3.5" / 19.1 x 14 x 8.9 cm
|
| Weight |
1.1 lb / 499 g
|
| Packaging Info |
|---|
| Package Weight |
0.83 lb
|
| Box Dimensions (LxWxH) |
7.1 x 4.5 x 2.4"
|
