Tilta Tiltaing Mini Matte Box
Product Highlights:
- Compact, Lightweight Matte Box
- 4 x Adapter Rings, Carbon Fiber Top Flag
- Supports One 4 x 5.65" Filter, 77mm Hole
- 15mm Rod Clamp with 3.9" Rod
- 1/4"-20 and 3/8"-16 Threads, Shoe Mounts
- Tilta Tiltaing Mini Matte Box
- Carbon Fiber Top Flag
- Tittaing Bottom Single 15mm Rod Holder
- Black Aluminum 15mm Rod (3.9")
- 2 x Allen Wrench
- Single 15mm Rod Support Attachment
- 67mm Adapter Ring
- 72mm Adapter Ring
- 77mm Adapter Ring
- 82mm Adapter Ring
- Limited 2-Year Manufacturer Warranty
Tilta Tiltaing Mini Matte Box
Tilta MB-T15 Tiltaing Mini Matte Box
The Tiltaing Mini Matte Box from Tilta is a lightweight, compact matte box with interchangeable mounting systems that suits small mirrorless or DSLR cameras. It accepts one standard 4 x 5.65" filter without the use of filter trays and includes four adapter rings to attach the matte box to the lens. The included carbon fiber top flag helps block veiling glare or bright reflections from striking your lens, and it can be folded down to cover the front of the matte box and provide protection to the front of your lens.
COMPACT AND LIGHTWEIGHT. INTEGRAL DESIGN.
It provides added protection for your lens and can help prevent light flares with the included top french flag.
The matte box can be mounted onto the included 3.9" rod with the 15mm rod clamp. There are multiple 1/4"-20 and 3/8"-16 threads as well as shoe mounts on the matte box exterior that allow you to mount additional accessories. The matte box fits around lenses with a 77mm diameter, and the included 67, 72, 77, and 82mm threaded adapter rings allow you to use the matte box with lenses of different sizes and diameters. Separately available cine 80 and 85mm adapter rings can be used for cine-style lenses and other non-standard lens adapters are available separately.
QUICK ASSEMBLY
The kit includes a 15mm rod adapter that attaches to the bottom of the matte box, providing support for the weight of the matte box as well as a way to secure your lens in place to provide lens stability The Mini Matte Box attaches directly to the front of a lens using the included 82, 77, 72, and 67mm adapter rings. Multiple 1/4"-20 and 3/8"-16 threads and shoe mounts allow you to mount additional accessories. One standard 4 x 5.65" filter can be added to the front of the matte box. A top flag is included to block unwanted glare and offers 180° of coverage. The matte box can be mounted using the included 15mm rod clamp and 3.9" long 15mm rod.
CIRCULAR FILTER SLOT

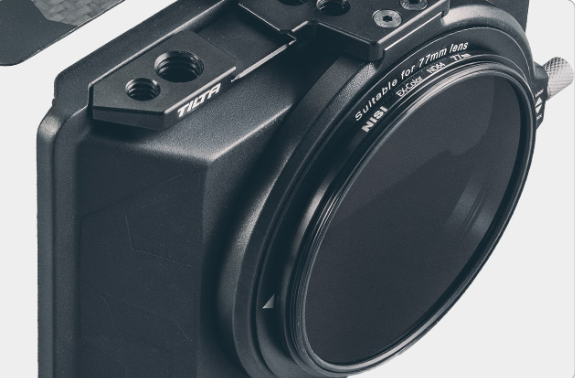

Front 4 x 5.65 filter slot with back circular filter slot combination meets various shooting setup needs
| Tilta MB-T15 Specs |
|---|
| Filter Stages |
1 x Fixed Stage (4 x 5.65")
|
| Trayless Filter Slots |
1 x 4 x 5.65"
|
| Lens Compatibility |
82 mm Opening (via Included Adapter)
77 mm Opening (via Optional Adapter)
72 mm Opening (via Included Adapter)
67 mm Opening (via Included Adapter)
|
| Rod Standard |
15 mm Single Rod (Slide-On)
|
| Swing-Away |
No
|
| Material |
Flag: Carbon Fiber
Frame: Aluminum
|
| Vertical Adjustment |
Yes
|
| Horizontal Adjustment |
Yes
|
| Tilt Adjustment |
Yes
|
| Weight |
4.94 oz / 140 g
|
| Packaging Info |
|---|
| Package Weight |
1.4 lb
|
| Box Dimensions (LxWxH) |
8.4 x 5.2 x 4.4"
|
