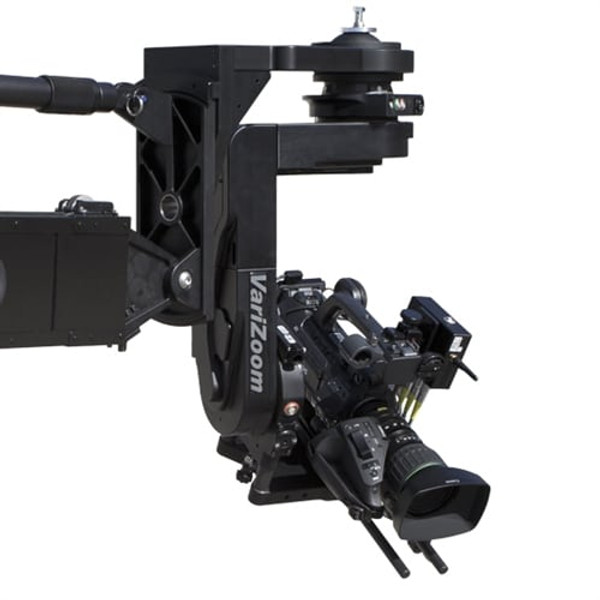

Varizoom CinemaPro Talon Remote Head w/ Pan Bars
Product Highlights:
- Joystick control for Pan/Tilt/Zoom, separate Knob for Focus
- Record and move to up to 2000 marked positions
- Record and playback 1 hour and up to 2000 takes
- Share recorded data w/ laptop: upload/download
- Programmable max. speeds for individual motors
- Programmable smoothing controls for each motor
- Precise homing control via pushbutton commands
- 2500′ max std extension, longer w/ fiber optic option
- Wireless Option available
- The Cinema Pro Remote Head
- The Pan-bars Unit w/ zoom/reset & focus hand controls, Advanced Control Console
- Power Supply w/ 30′ XLR Extension Cable 50′
- Communication Cable
- Hard Travel Case
- *Reset control allows you to reposition the pan bars without moving the head*
Varizoom CinemaPro Talon Remote Head w/ Pan Bars
Varizoom VZCINEMAPRO-K2 CinemaPro Talon Remote Head w/ Pan Bars
Designed and built by Academy Award winning motion picture engineers, the Cinema Pro, aka The Talon, has been chosen by DPs and producers around the world for its smoothness, stability, and versatile feature set. In production for many years now, the Cinema Pro is extremely reliable, easy to set up and operate, and capable of imperceptibly slow or lightning fast moves with no sacrifice in stability. With an impressive set of standard features and a proud pedigree, it outperforms the competition at a fraction of the price and works with a huge range of film and video cameras.
The Cinema Pro-K2 pan bars kit is popular with broadcast operators, sports cameramen, and videographers. The pan bars are great for tracking shots and easier to learn than the hand wheels, so those relatively new to motion control often gravitate toward the pan bars option. The pan bars offer scalable speed so the head’s range of motion can be customized relative to the motion of the pan bars. The zoom & focus hand controls on the pan bars enable seamless single-operator remote camera control. The pan bars are slaved to the advanced console, which features a superb 3-axis joystick with customizable response for pan/tilt/zoom, oversize control knobs for focus and menu adjustment, backlit keypad, and a whole host of parametric menu settings and interface options. The motion control camera systems are compatible with virtual set software, motion data import/export, and is capable of controlling servo lenses directly or can be integrated seamlessly with our TOC external lens drive motor system.
The Cinema Pro is used on a regular basis by crane & jib operators, visual effects studios, sports & racing productions, and feature film crews worldwide. This motion control remote camera head is available with a wide array of options for camera control, mounting hardware, and even wireless up to 1 mile, the Cinema Pro motion control remote camera head is the ultimate in affordable true motion heads, with superb mechanical stability and frame-accurate, recordable 5-channel control for absolutely precise repeatable motion control sequences. If you have any questions, please email or call us, or you can visit one of our demo/rental outlets for a hands-on experience.
| VZCINEMAPRO-K2 Specs |
|---|
| Weight |
90 lbs |
| Dimensions |
33 × 21 × 16 in |
| UPC |
877038008021 |
| Height |
19.5" |
| Width |
12" |
| Depth |
6" |
| Weight |
21 lbs |
| Camera weight |
50lbs standard, up to 85lbs w/ optional outrigger cradle + support bearings |
| Camera clearance |
Vertical – Camera pointing straight down/up: 11" from center of cam plate to base.
Horizontal – Camera pointing level horizon, underslung: 15.5" min / 17.5" max.
With 2" head extension: Vertical 13", Horizontal 17.5" min / 19.5" max.
With 5" head extension: Vertical 16", Horizontal 20.5" min / 22.5" max |
| Pan/Tilt speed |
Up to 210 degrees/second |
| Mechanical travel |
Unlimited rotation for each axis |
| Power Requirement |
24VDC regulated, 10A max, absolute min/max 20VDC-30VDC |
| Warranty |
2 years |
| Returns |
This is a special-order item and it is noncancelable / non-returnable (NCNR) |
