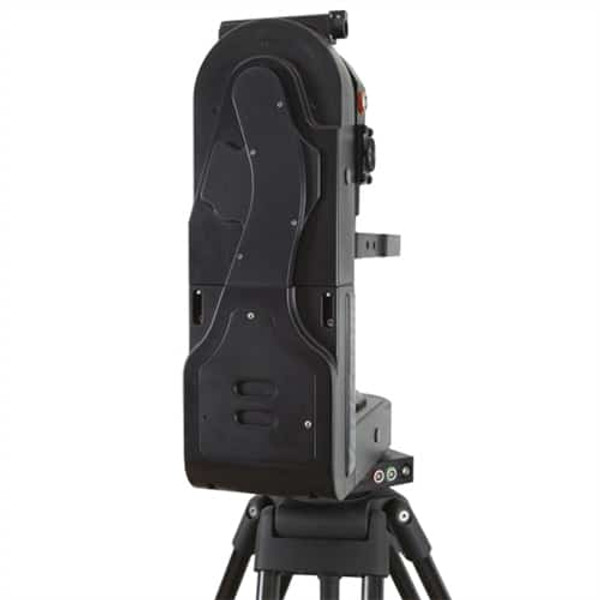

Varizoom Cinema Pro Talon Remote Head w/ Advanced Control Console
Product Highlights:
- Joystick control for Pan/Tilt/Zoom, separate Knob for Focus
- Record and move to up to 2000 marked positions
- Record and playback 1 hour and up to 2000 takes
- Share recorded data w/ laptop: upload/download
- Programmable max. speeds for individual motors
- Programmable smoothing controls for each motor
- Precise homing control via pushbutton commands
- The Cinema Pro Remote Head
- Advanced Controller
- Power Supply w/ 30′ XLR Extension Cable
- 50′ Communication Cable
- Hard Travel Case
Varizoom Cinema Pro Talon Remote Head w/ Advanced Control Console
Varizoom VZCINEMAPRO-K3 Cinema Pro Talon Remote Head w/ Advanced Control Console
Designed and built by Academy Award winning motion picture engineers, the Cinema Pro, aka The Talon, has been chosen by DPs and producers around the world for its smoothness, stability, and versatile feature set. In production for many years now, the Cinema Pro is extremely reliable, easy to set up and operate, and capable of imperceptibly slow or lightning fast moves with no sacrifice in stability. Carrying an impressive set of standard features and a proud pedigree, the Cinema Pro outperforms the competition at a fraction of the price and works with a huge range of film and video cameras.
The advanced console features a superb 3-axis joystick with customizable response for pan/tilt/zoom, fluid oversize control knobs for focus and menu select/adjust, backlit keypad, and a whole host of parametric menu settings and interface options. The system is compatible with virtual set software, motion data import/export, and is capable of controlling servo lenses directly or can be integrated seamlessly with our TOC external lens drive motor system. The optional pan bars or hand wheels controls can always be added later as an accessory.
The Cinema Pro is used on a regular basis by crane & jib operators, visual effects studios, sports & racing productions, and feature film crews worldwide. Available with a wide array of options for camera & lens control, mounting hardware, and even wireless control up to 1 mile, the Cinema Pro is the ultimate in affordable true motion control heads, with superb mechanical stability and frame-accurate, recordable 5-axis control for absolutely precise repeatable motion control sequences. If you have any questions, please email or call us, or you can visit one of our demo/rental outlets for a hands-on experience.
| VZCINEMAPRO-K3 Specs |
|---|
| Weight |
80 lbs |
| Dimensions |
33 × 21 × 16 in |
| UPC |
877038008038 |
| Height |
19.5" |
| Width |
12" |
| Depth |
6" |
| Weight |
21 lbs |
| Camera weight |
50lbs standard, up to 85lbs w/ optional outrigger cradle + support bearings |
| Camera clearance |
Vertical – Camera pointing straight down/up: 11" from center of cam plate to base.
Horizontal – Camera pointing level horizon, underslung: 15.5" min / 17.5" max.
With 2" head extension: Vertical 13", Horizontal 17.5" min / 19.5" max.
With 5" head extension: Vertical 16", Horizontal 20.5" min / 22.5" max |
| Pan/Tilt speed |
Up to 210 degrees/second |
| Mechanical travel |
Unlimited rotation for each axis |
| Power Requirements |
24VDC regulated, 10A max, absolute min/max 20VDC-30VDC |
| Warranty |
2 years |
| Returns |
This is a special-order item and it is noncancelable / non-returnable (NCNR) |
