AJA OG-DANTE-12GAM openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder

AJA openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder

Product Highlights:

• Support for 12G/6G/3G-SDI audio embedding to- and from- the Dante audio ecosystem
• Dual, and independent 12G-SDI Input and Output ports, each supporting 16-audio channels, totaling 64-channels per card in a compact design
• 1x Primary and 1x Secondary Gigabit Ethernet ports for Dante network redundancy
• 64-channels of simultaneous SDI/Dante audio bridging per card
• DashBoard support for remote signal status and configuration
• Compatible with a range of Dante Software from Audinate including Dante Controller for routing and configuration choices



AJA openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder

AJA OG-DANTE-12GAM openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder

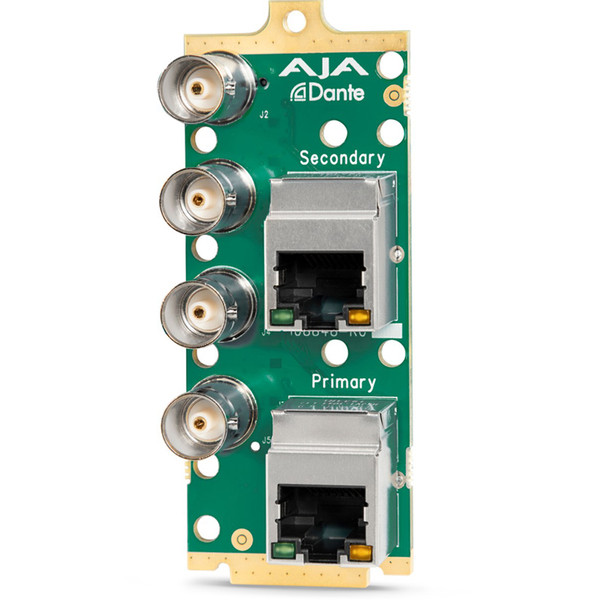

AJA OG-DANTE-12GAM is an openGear, Dante audio embedder/disembedder, with dual 12G-SDI input and output ports providing up to 32-channels of audio embedding and 32-channels of disembedding simultaneously. OG-DANTE-12GAM provides the bridge between SDI and Dante infrastructures.

Dante audio networking provides digital audio distribution over local and wide-area networks with low latency, using standard network hardware or by connecting into a standard network infrastructure. This offers many advantages over analog, AES, and MADI infrastructures, including audio system scalability, easier installation, and simplified wiring.

A fully populated OG-X-FR openGear frame with ten OG-DANTE-12GAM cards, provides an incredible 640-channels of audio bridging in a rack-mountable form factor for a wide range of needs.

AJA OG-DANTE-12GAM Specifications
General
Specifications	(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60* (SD) 625i 50 (SD) 525i 59.94 RGB and YCbCr, 4:4:4/4:2:2, 10-bit Note: Raster and frame rate dependent, please see OG-Dante-12GAM Video Formats in Documents and Manual.
Video Input Digital	2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K
Video Output Digital	2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K
Cable Equalization (Belden 1694A coax)	12 Gbps, 65m 6 Gbps, 120m 3 Gbps, 180m 1.5 Gbps, 200m 270 Mbps, 405m
Audio Input Digital	SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each Dante: 1x Primary Ethernet port and 1x Secondary Ethernet port, 32-channels
Audio Output Digital	SDI: 2x independent 12G-SDI BNC connectors, 16 embedded channels each Dante: 1x Primary and 1x Secondary Gigabit Ethernet ports, 32-channels
SDI Embedded Audio	SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous SMPTE 272M (SD): 20-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden 4 groups (16-channels) of audio supported per SDI path Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
Dante Audio	Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz Encoding: PCM 16, PCM 24, PCM 32
Audio Latency	Embed Path: 1500 µsec Disembed Path: 1410 µsec
User Interface	openGear DashBoard network control software via Windows, macOS or Linux Dante Controller
Environment	Safe Operating Temperature: 32° to 104°F Safe Storage Temperature (Power OFF): -40° to 140° Operating Relative Humidity: 10 to 90% non-condensing Operating Altitude: <10,000' Size: openGear standard form factor, front slot and rear card. Two slots required for each card. Weight: 0.5 lb (0.3 kg) Power: openGear frame compatible, 15 watts max per card
Warranty	5 Year Warranty
