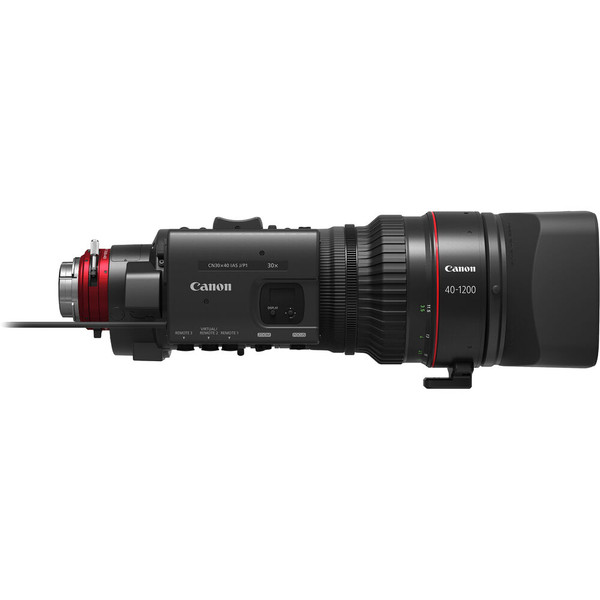

Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (ARRI PL)
Product Highlights:
- Super 35/Full Frame | T5.0-10.8 Aperture
- Built-In 1.5x Extender for Full-Frame
- 0.8 MOD Focus/Iris/Zoom Gears
- Cooke /i Technology, ZEISS eXtended Data
- 136mm Front Outside Diameter
- LCD for User Functions and Settings
- 11-Blade Iris, 16-Bit Metadata Output
- 30x Zoom, 180° Focus Ring Rotation
- Breathing Compensation, USB Power Drive
- Durable Design, Lightweight at 6.7 lb
- Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (ARRI PL)
- Servo Drive
- Lens Cap
- Dust Cap
- Lens Hood
- Hood Cap
- Lens Support (19mm Rod Bracket)
- 3 x Servo Drive Mounting Screw
- Servo Storage Pouch
- Limited 1-Year Manufacturer Warranty
Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (ARRI PL)
Canon 7670C002 CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (ARRI PL)
Achieve one of the longest focal lengths available globally for ENG and cinematic productions with the Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens. Designed with an ARRI PL mount, this professional broadcast lens supports native Super 35 sensors and can expand to full-frame coverage using its integrated 1.5x extender. Its relatively compact and lightweight form factor makes it well-suited for diverse shooting scenarios, including tripod setups, vehicle rigs, and aerial applications.
40 to 1200mm Focal Length
This lens delivers an expansive 40–1200mm zoom range with a variable aperture from T5.0 to T10.8 across the zoom spectrum. Engaging the built-in 1.5x extender enhances the 30x optical zoom, extending the reach to an impressive 60–1800mm.
Consistent with Canon’s cinema lens lineup, it produces smooth, visually pleasing bokeh thanks to an 11-blade iris, along with a stepless iris ring for precise exposure adjustments.
Advanced Servo Drive Unit
The integrated servo drive unit includes Focus Breathing Compensation, helping maintain consistent framing while adjusting focus.
It supports ARIA and ALAC communication protocols through a 12-pin interface, and when paired with the EOS C400, it enables Auto-Exposure Ramping Compensation.
This PL-mount version is compatible with ZEISS eXtended Data and Cooke /i technology, allowing metadata transmission directly to the camera. The servo unit can be detached for traditional cine-style operation or incorporated into studio environments with 16-bit metadata output support.
| Canon Cine-Servo 40-1200mm T5.0 Specs |
|---|
| Focal Length |
40 to 1200mm
|
| Maximum Aperture |
T5
|
| Minimum Aperture |
T10.8
|
| Lens Mount |
ARRI PL with Included Adapter
|
| Lens Format Coverage |
Super35/APS-C (29.6 mm Image Circle)
Full-Frame (43.3 mm Image Circle)
|
| Angle of View |
Super 35
34.2 to 19.6°
Full Frame
23.2 to 13.1°
|
| Focus Scales |
Metric, Imperial
|
| Filter Thread |
No
|
| Zoom Ratio |
30x
|
| Minimum Focus Distance |
4' / 1.2 m
|
| Aperture/Iris Blades |
11
|
| Image Stabilization |
No
|
| Lens Mounting |
No
|
| Gear Standard |
Focus, Iris, Zoom: 0.8 MOD
|
| Electronic Communication |
Yes
|
| Camera Connection |
12-Pin (Canon Lens) Control, Data, Power
|
| Diameter |
Front: 5.4" / 136 mm
Lens Hood: 5" / 127 mm
Overall W x H: 6.9 x 6.7" / 175.3 x 170.2 mm
|
| Length |
15.95" / 40.52 cm
|
| Weight |
6.7 lb / 3.04 kg
|
