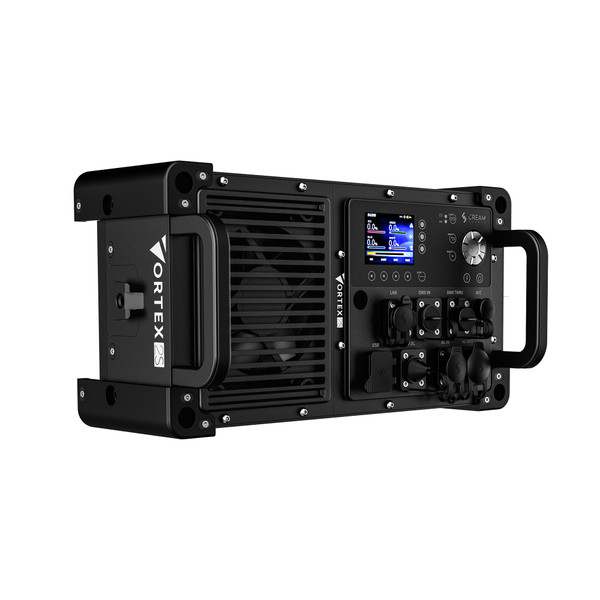

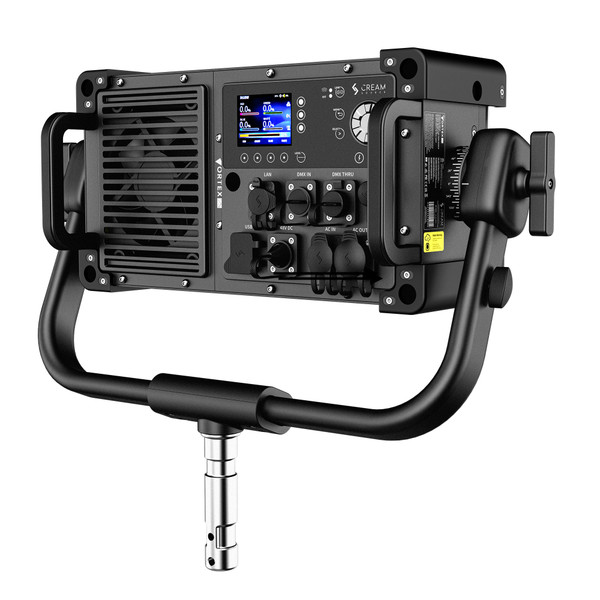

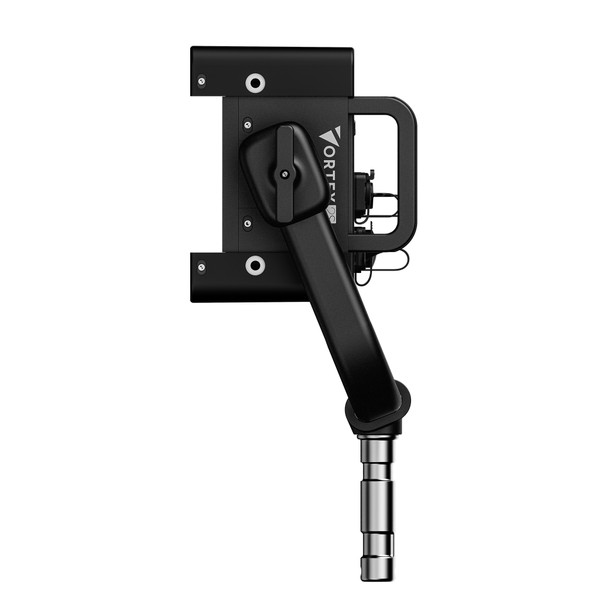

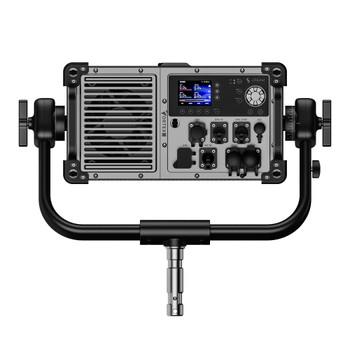

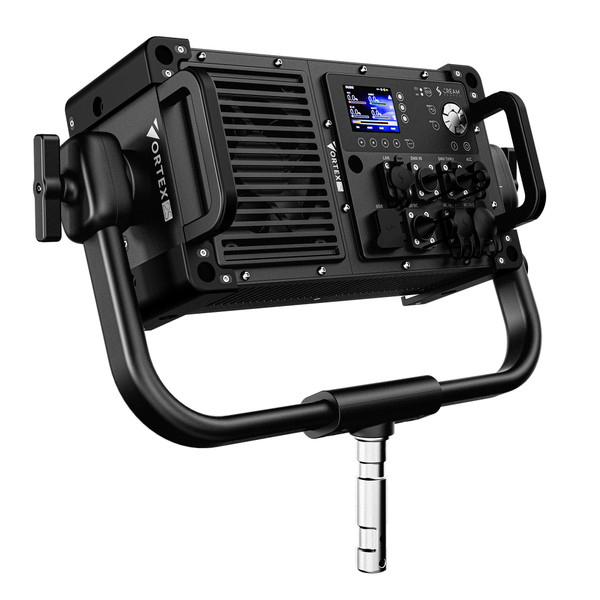

Creamsource Vortex2 Soft RGB LED Light Panel
Product Highlights:
- For Studio & Film/TV Production
- Output: 5520 Lux at 3.3' (5600K, 110°)
- 2200-15,000K; RGB Color Control
- 15 x 8"; AC/DC Operation
- CRI 95 | TLCI 95 Onboard, DMX, Bluetooth & Wi-Fi Control
- LumenRadio & Ethernet with sACN
- Triggering & Syncing to Camera Shutter
- High-Speed up to 5000 fps & IP65-Rated
- Includes Yoke & Power Cable
- Creamsource K-CSV-2S-ESS Vortex2 Soft RGB LED Light Panel
Creamsource Vortex2 Soft RGB LED Light Panel
Creamsource K-CSV-2S-ESS Vortex2 Soft RGB LED Light Panel
| Creamsource Vortex2 Specs |
|---|
| Light Fixture |
|---|
| Item Type |
1x LED Light Panel
|
| Included Filters |
Diffusion
|
| Included Storage Case |
No
|
| Photometrics |
110° at 3200K:
543 fc / 5850 Lux at 3.3' / 1 m (Unmodified)
65 fc / 700 Lux at 9.8' / 3 m (Unmodified)
23 fc / 258 Lux at 16.4' / 5 m (Unmodified)
3200K:
381 fc / 4110 Lux at 3.3' / 1 m (with Lens)
97 fc / 1050 Lux at 1565' / 477 m (with Lens)
16 fc / 175 Lux at 16.4' / 5 m (with Lens)
110° at 5600K:
512 fc / 5520 Lux at 3.3' / 1 m (Unmodified)
61 fc / 662 Lux at 9.8' / 3 m (Unmodified)
22 fc / 244 Lux at 16.4' / 5 m (Unmodified)
5600K:
365 fc / 3930 Lux at 3.3' / 1 m (with Lens)
42 fc / 457 Lux at 9.8' / 3 m (with Lens)
15 fc / 167 Lux at 16.4' / 5 m (with Lens)
|
| Color Temperature |
2200 to 15,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
TLCI 95
CRI 95
|
| Dimming |
Built-In Dimmer / DMX
• 0 to 100%
|
| Cooling System |
Fan
|
| Expected Lamp Life |
50,000 Hours (L70)
|
| Beam Angle |
110°
|
| Built-In Flash |
Yes
|
| Pixel Zones |
2
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
| Connectivity |
|---|
| Wireless Remote Control Type |
CRMX
Bluetooth
|
| Mobile App Compatible |
Yes: iOS Only
App Name: Luminair 4
Functionality: Remote Control
|
| Power & I/O |
|---|
| Power Source |
AC Power (Cable Included)
Battery (Not Included)
|
| Inputs/Outputs |
1x powerCON TRUE1 AC Power Input (100 to 240 VAC, 50 / 60 Hz at 1.6 A)
1x powerCON TRUE1 AC Power Output
1x XLR 5-Pin Male DMX Input
1x XLR 5-Pin Female DMX Output
1x XLR 3-Pin Power Input (48 VDC)
1x USB-A Service Input
1x RJ45 Female Network Input
1x Unspecified Remote Input
|
| Battery |
1x Battery Power Station, 48 VDC (Not Included)
|
| Input Power |
48 VDC at 3.3 A
100 to 240 VAC, 50 / 60 Hz at 1.6 A
|
| Included Adapter / Cable |
1x USA Type-A/B Plug to powerCON TRUE1 Cable
|
| Inline Switch |
No
|
| Power Pass-Thru |
Yes
|
| Power Consumption |
160 W
|
| Mounting |
|---|
| Yoke Type |
Manually-Operated Yoke (360° Tilt)
|
| Fixture Mounting |
4x 3/8"-16 Female Thread
1x 1-1/8" Stud (Via Yoke Mount)
Proprietary
|
| General |
|---|
| Display |
LCD
|
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Operating Conditions |
Up to 104°F / 40°C
|
| Certifications |
CE, CSA, ETL, FCC, RCM, UKCA
|
| Materials |
Aluminum, Polymer
|
| Dimensions |
15.35 x 8.17 x 7.23" / 38.99 x 20.75 x 18.36 cm (Fixture)
21.17 x 17.06 x 6.95" / 53.77 x 43.33 x 17.65 cm (Fixture with Yoke)
|
| Weight |
12.1 lb / 5.5 kg (Fixture)
15.37 lb / 6.97 kg (Fixture with Yoke)
|
